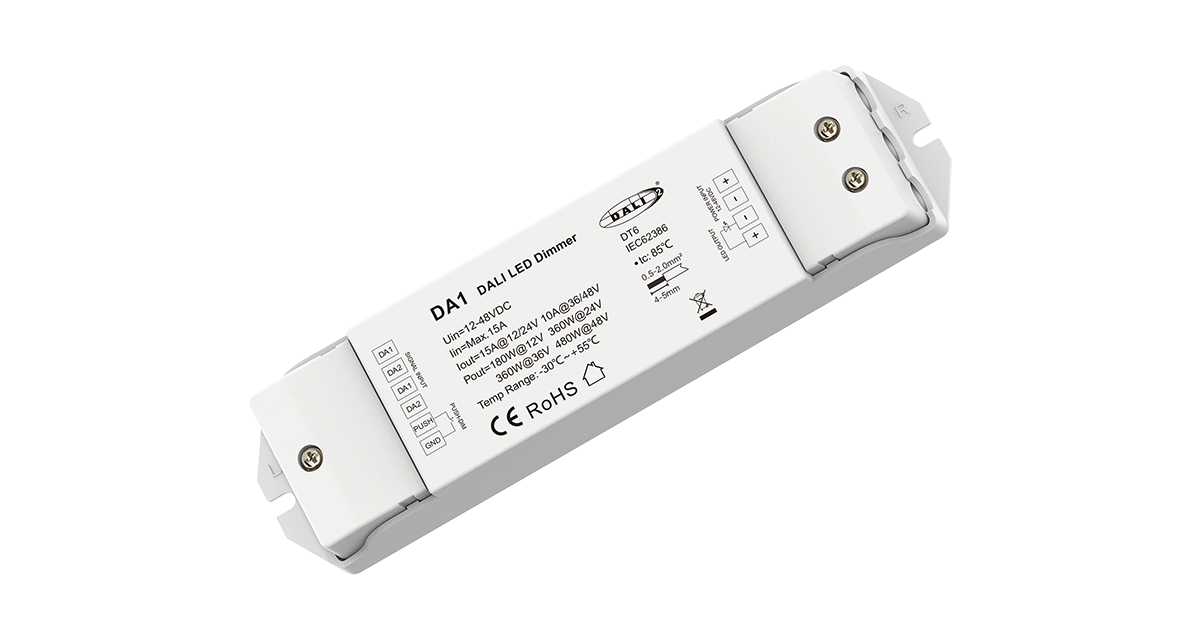

1 Chanel | 15A | DALI 2 | LED Dimmable Decoder
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DALI-1 |
| Protocol | DALI |
| Compatible LED | White & Single Colour |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 12-48V DC |
| Input Current | 15A |
| Output Voltage | 12-48V DC |
| Output Current | 15A |
| Output Wattage | 180W – 12v / 360W – 24v |
| Signal | DALI + Push Dim |
| Dimming Range | 0 -100% |
| Dimensions | L178 x W50 x H38mm |
| Weight | 0.132kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015 EN IEC 61547 |
| Safety standard(LVD) | EN 61347-1/-2 EN 62493 |
| Certification | CE RoHs DALI-2 |
| Compatible Products | RC-DALI-BUS |
1 Channel DALI-2 LED Dimmable Decoder | 15A
This 1 Channel DALI-2 LED Dimmable Decoder delivers smooth and reliable control for single colour LED lighting, making it an ideal solution for professional projects. Designed to integrate seamlessly with DALI lighting systems, it supports both DALI and Push Dim protocols for flexible operation.
Handling input and output voltages from 12–48V DC, the decoder provides up to 180W at 12V or 360W at 24V. With a powerful 15A output current, it is capable of driving larger LED installations while maintaining consistent and flicker-free dimming from 0–100%.
Compact at 178mm x 50mm x 38mm and weighing just 0.132kg, it is easy to install into commercial or residential lighting systems. Built to the latest standards, it is CE, RoHS, and DALI-2 certified, ensuring reliability and compliance.
Backed by a 5-year warranty, this DALI-2 decoder offers durability, precision, and professional-grade dimming for modern single channel LED setups.
