1 Chanel | 8A | 0/1-10V | LED Dimmable Decoder
Commercial Grade LED Controller
Full Specification
| Product Code | RC-010V |
| Protocol | 0/1-10V |
| Compatible LED | White & Single Colour |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 12-48V DC |
| Input Current | 8.5A |
| Output Voltage | 12-48V DC |
| Output Current | 8A |
| Output Wattage | 96W – 12v / 192W – 24v |
| Signal | 0/1-10V |
| Dimming Range | 0 -100% |
| Dimensions | L114 x W38 x H26mm |
| Weight | 0.053kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015:2019+A11:2020 EN 61547:2009 EN IEC 61000-3-2:2019+A11:2021 EN 61000-3-3:2013+A11:2019 |
| Safety standard(LVD) | EN 61347-1:2015+A1:2021 EN 61347-2-13:2014+A1:2017 |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products |

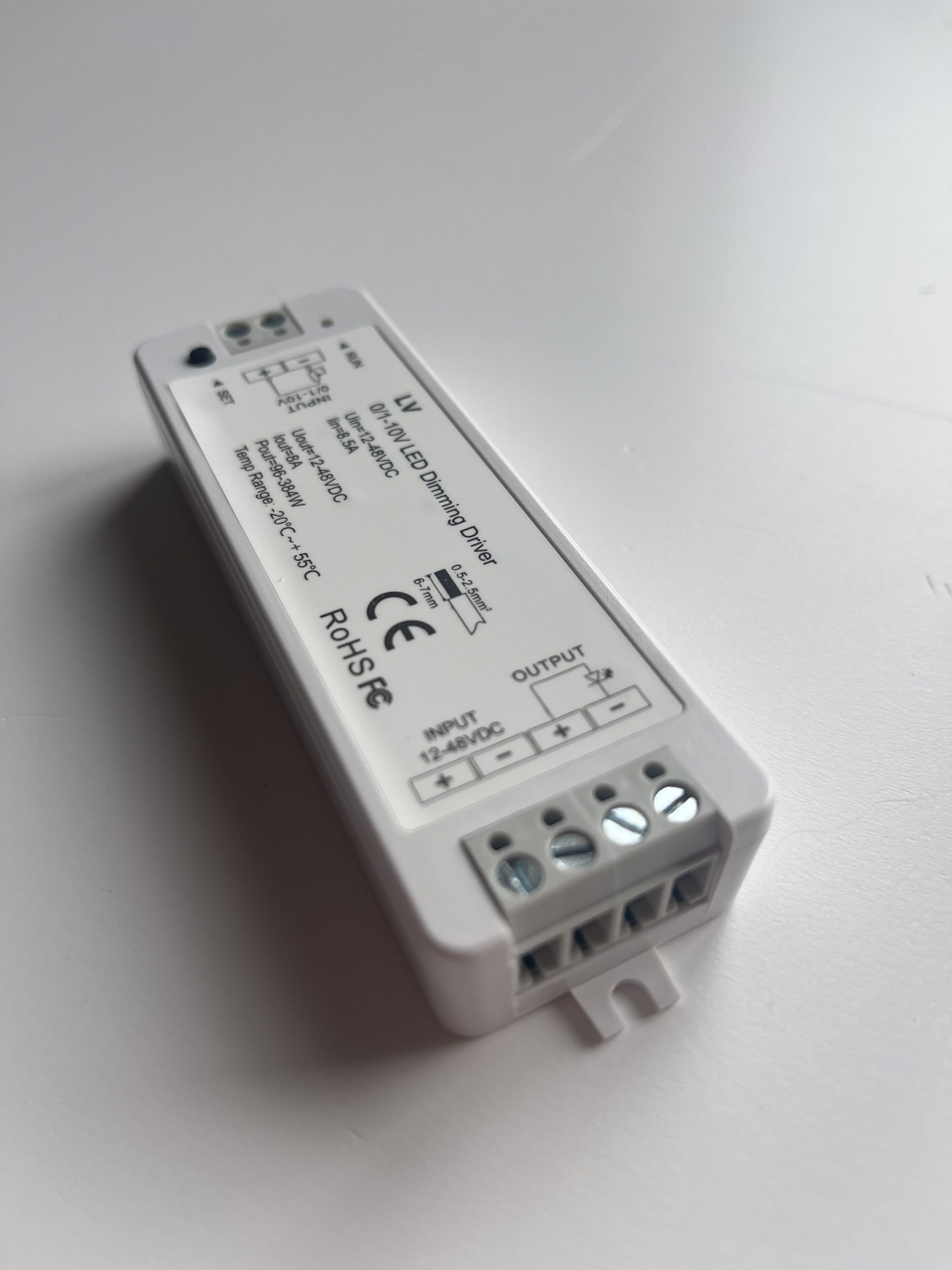

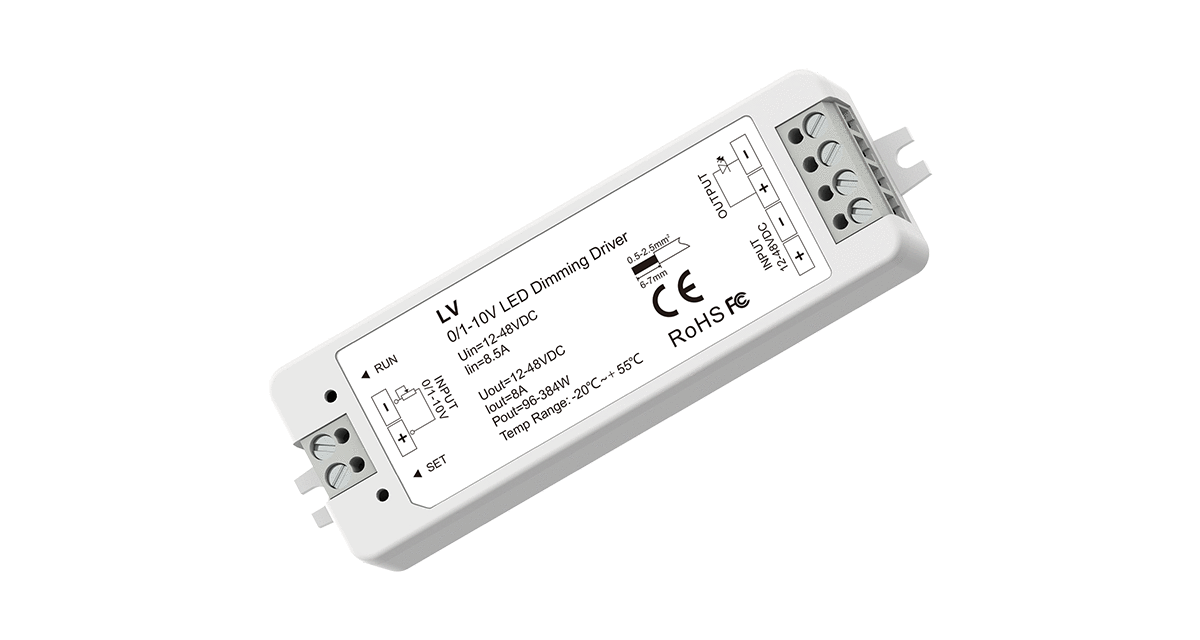

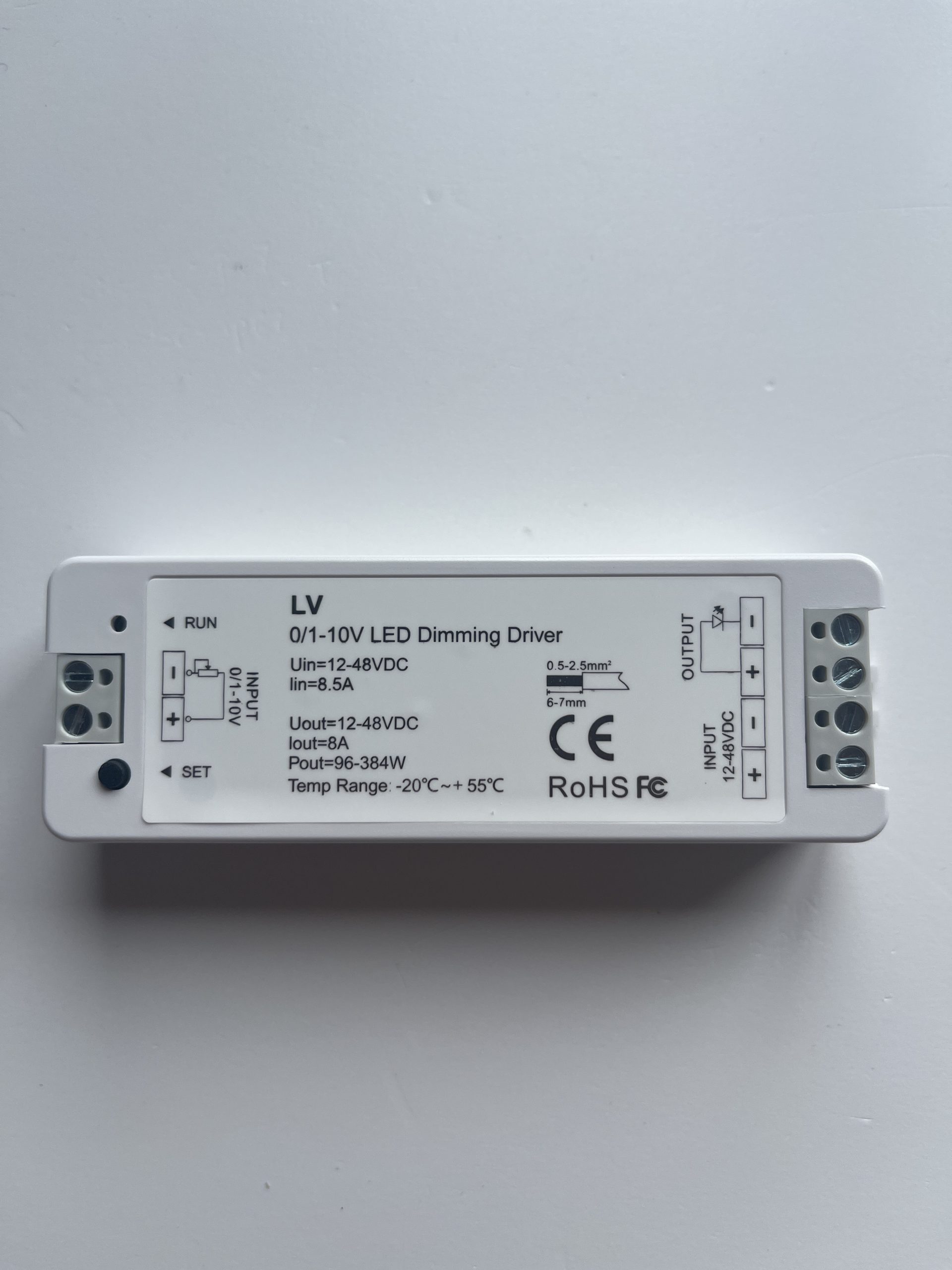

1 Channel 0/1-10V LED Dimmable Decoder | 8A
This 1 Channel 0/1-10V LED Dimmable Decoder is designed to give smooth, reliable dimming control for single colour LED lighting. Built for professional use, it connects 0/1-10V dimming systems to constant voltage LED lights, ensuring accurate and flicker-free brightness adjustment from 0–100%.
With an input and output range of 12–48V DC, the decoder supports up to 96W at 12V or 192W at 24V. Delivering 8A output current, it provides consistent power for medium to large LED setups, making it ideal for commercial or residential projects.
Compact and lightweight at 114mm x 38mm x 26mm and just 0.053kg, it is easy to install in tight spaces. Certified to CE, EMC, and LVD standards, it meets the highest safety and performance requirements.
Backed by a 5-year warranty, this 0/1-10V dimmable decoder offers durability, precision, and professional-grade performance for single channel LED dimming applications.
