1 Zone | Button-Press | DMX | RGB/W | Wall Plate Controller (Sound-Light)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-DMX-BS |
| Protocol | DMX |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 1 |
| Input Voltage | 12/24V DC |
| Input Current | 0.1A |
| Output Signal | DMX512 |
| Dimming Range | 0 -100% |

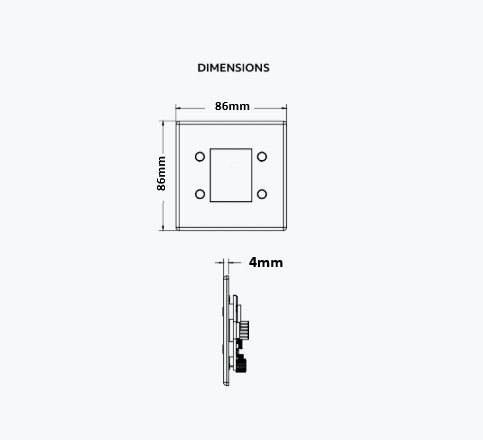

| Dimensions | L86 x W86 x H4mm |
| Weight | 0.234kg |
| Warranty | 5 Years |

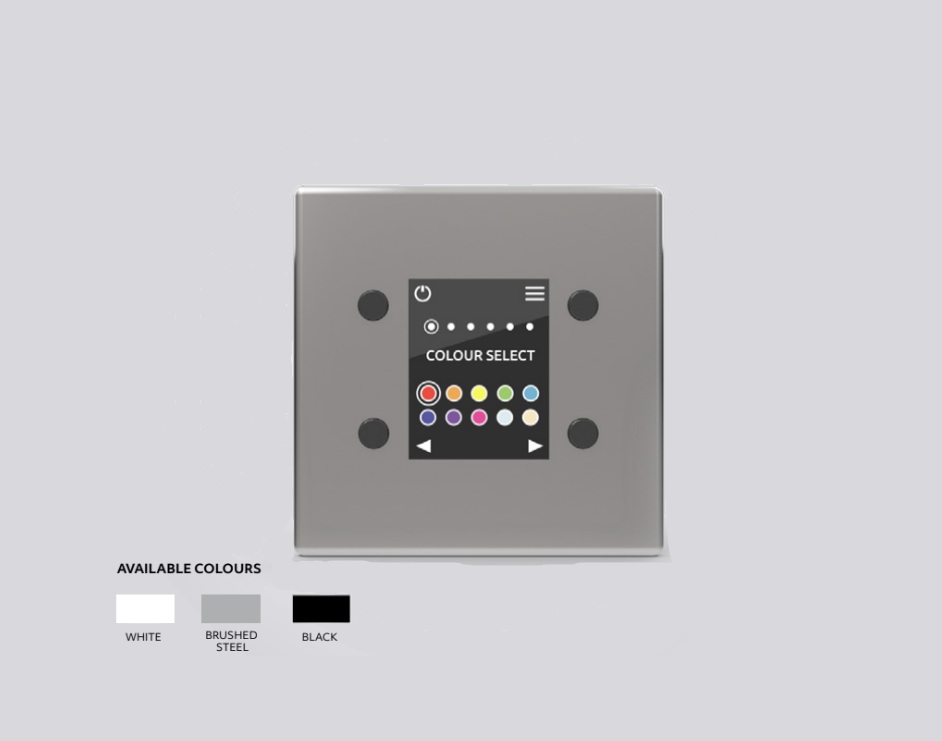

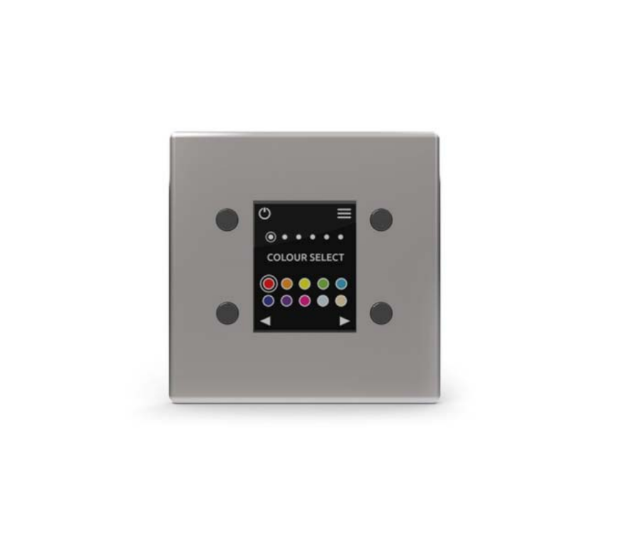

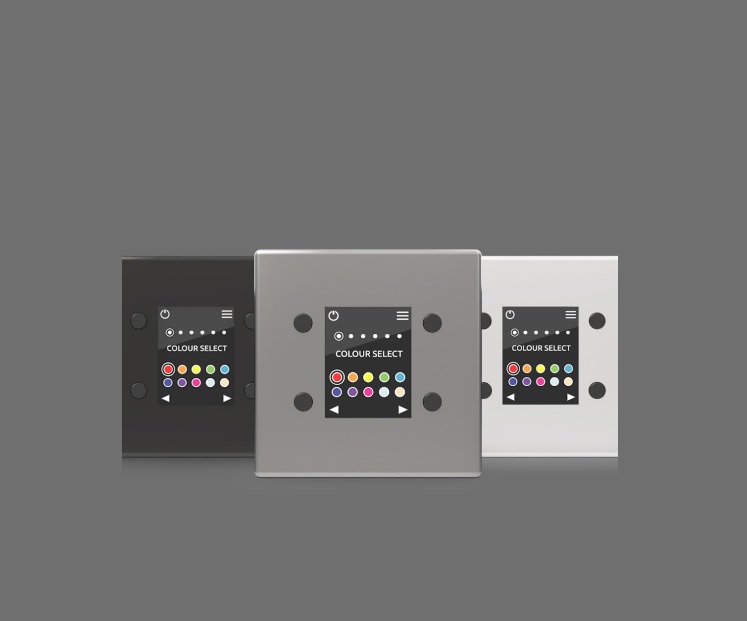

1 Zone DMX Wall Plate Controller – Stainless Steel (RGB/W, Button Control, Sound-Light Mode)
Simple control, pro performance. This single-zone wall plate controller gives you direct push-button control over your RGB or RGBW LED setup using the DMX512 protocol.

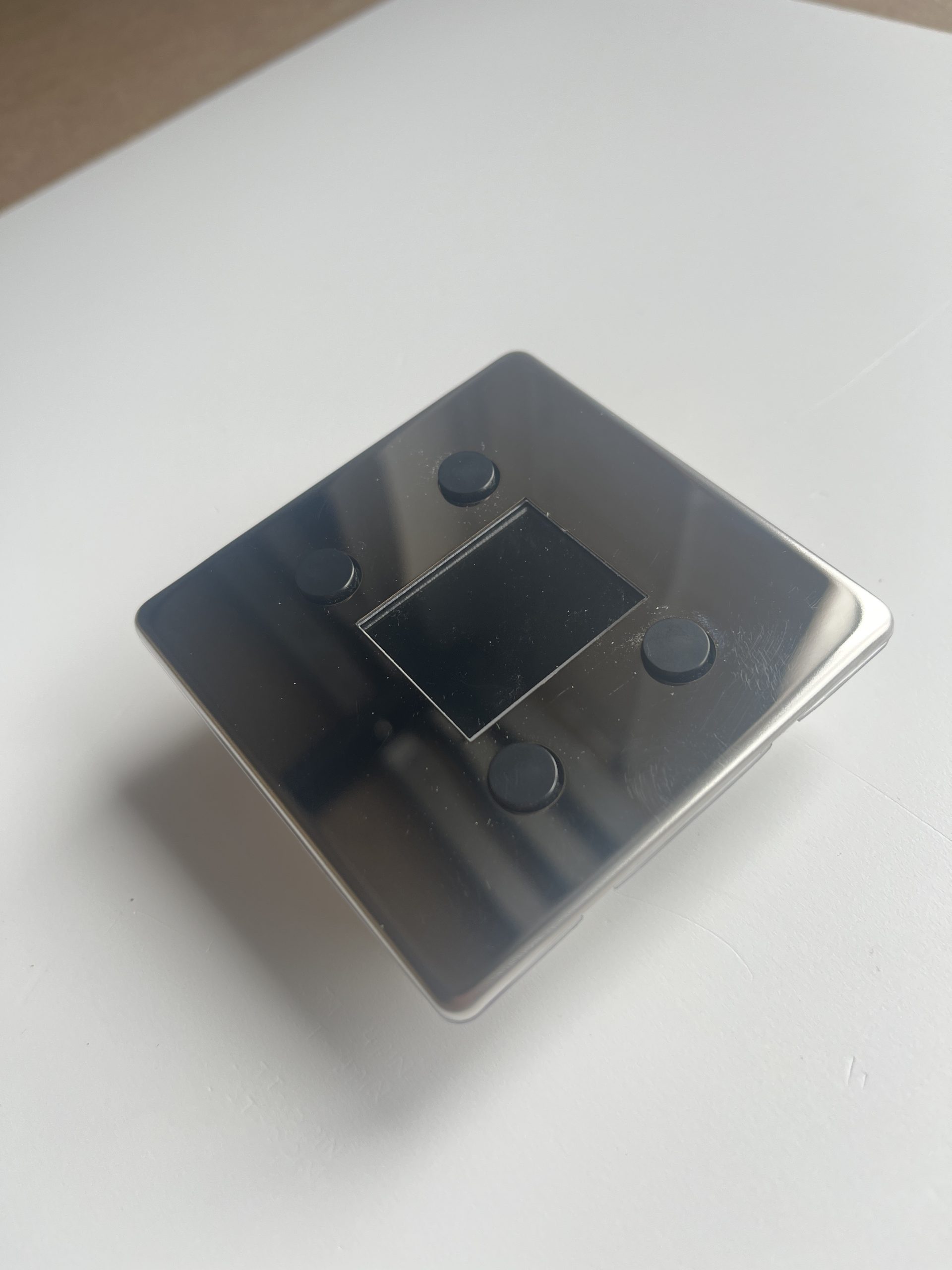

Built into a sleek stainless steel faceplate, it’s designed to sit flush on the wall at just 4mm deep. It fits any standard UK back box and connects via 12/24V DC input. You’ll get full 0–100% dimming, a clean interface, and responsive sound-to-light modes that let your lighting react to audio in real time.
Ideal for bars, clubs, retail displays, and home cinema rooms where you want sharp lighting control without complicated menus. Supports DMX512 output for smooth integration with your lighting system.
One zone. Zero fuss. All the control you need.
Covered by a 5-year warranty for long-term reliability.
