1 Zone | Wireless | RGB/W | LED Remote Controller Kit
Commercial Grade LED Controller
Full Specification
| Product Code | CT-RRGBW-1 |
| Protocol | RF |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Remote Control (Kit) |
| Zones (channels) | 1 |
| Input Voltage | 3VDC(AAAx2) |
| Input Current | <5mA |
| Output Voltage | 12/24V DC |
| Output Current | 4 x 4A/CH (16A) |
| Output Wattage | 192W -12v / 384W – 24v |
| Output Signal | RF / 2.4GHz |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L114 x W33 x H20mm (Receiver) L140 x W60 x H26mm (Remote) |
| Weight | 0.154kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, LVD, RED |
| Compatible Products |
1 Zone Wireless RGB/W LED Remote Controller Kit

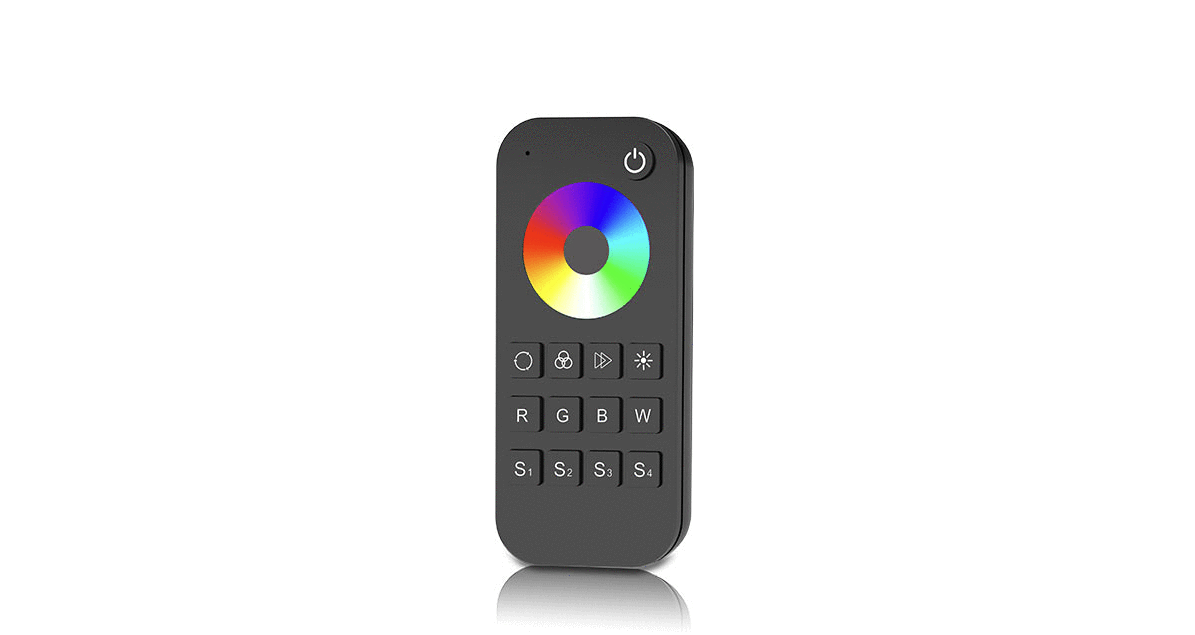

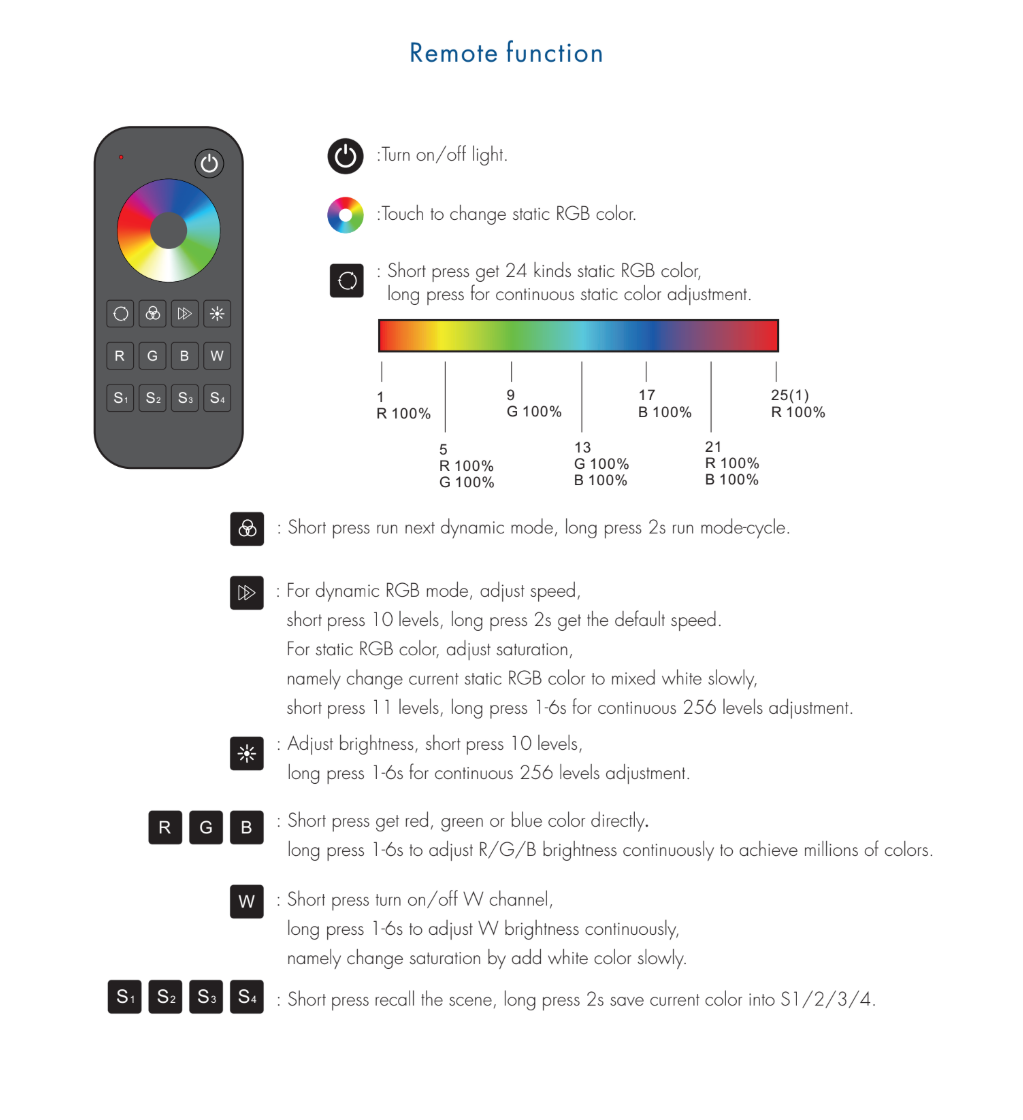

This 1 Zone Wireless LED Remote Controller Kit offers simple and reliable control for RGB/W colour-changing LED lighting. Designed for single-zone applications, it allows you to manage colour, brightness, and effects with ease, making it perfect for both residential and commercial projects.

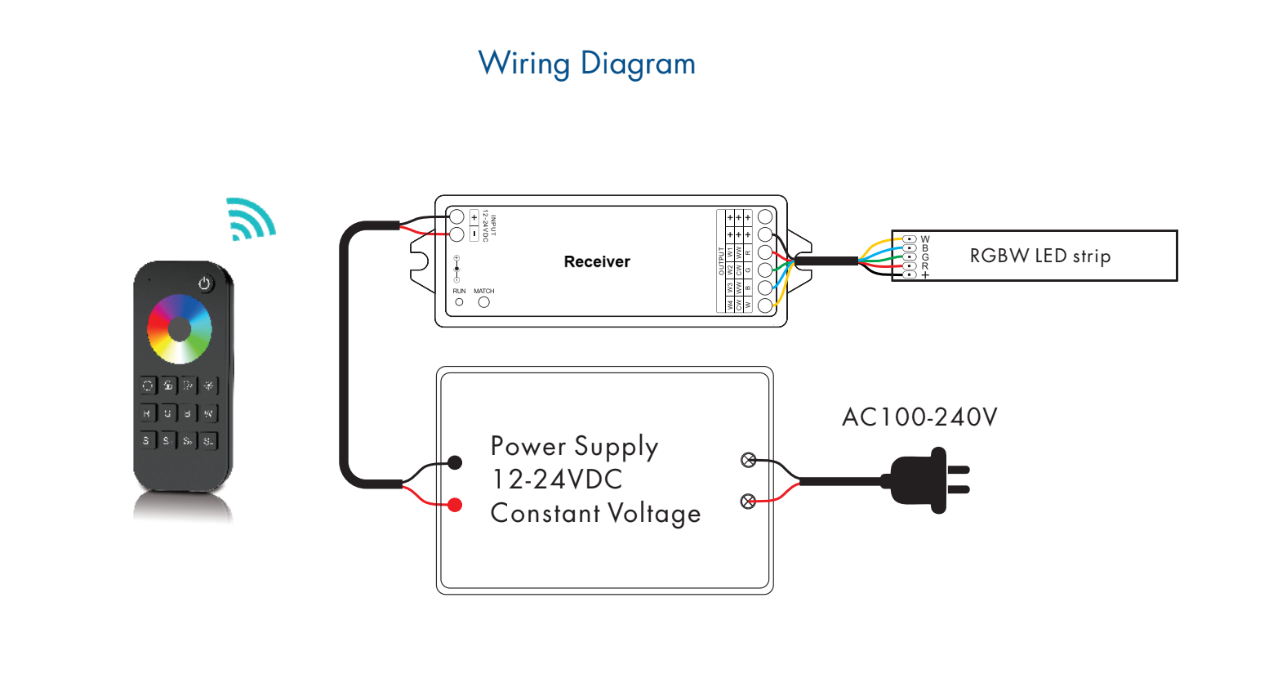

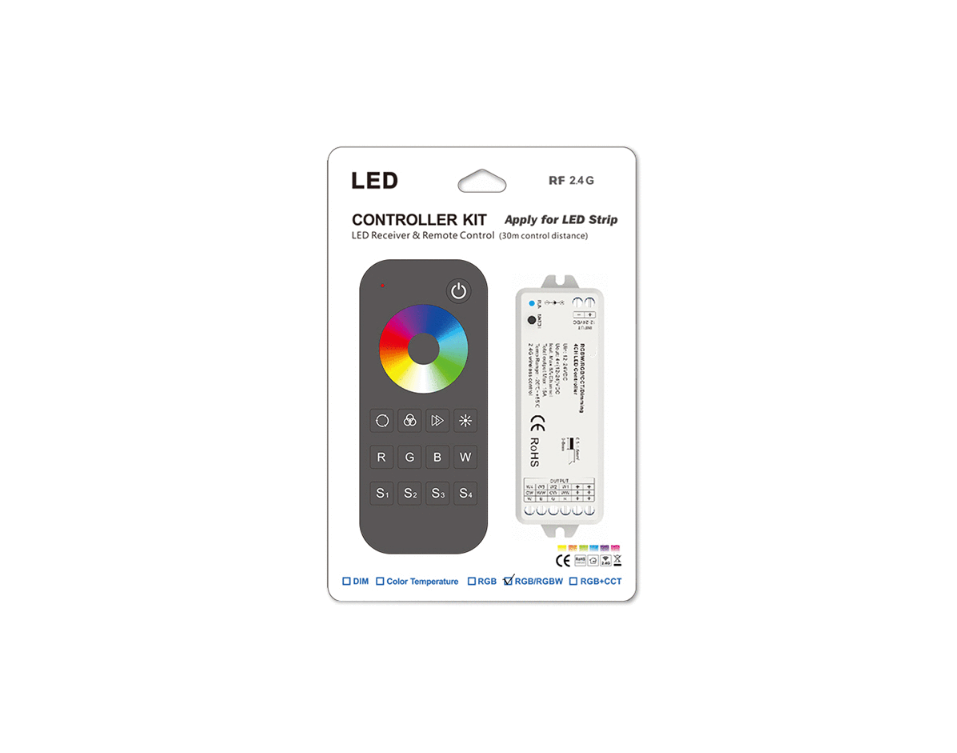

The system uses RF 2.4GHz technology, giving a wireless control distance of up to 30m. With smooth 0–100% dimming and responsive performance, it provides precise adjustment across your LED setup. The kit includes a handheld remote and receiver, ensuring easy integration into new or existing installations.

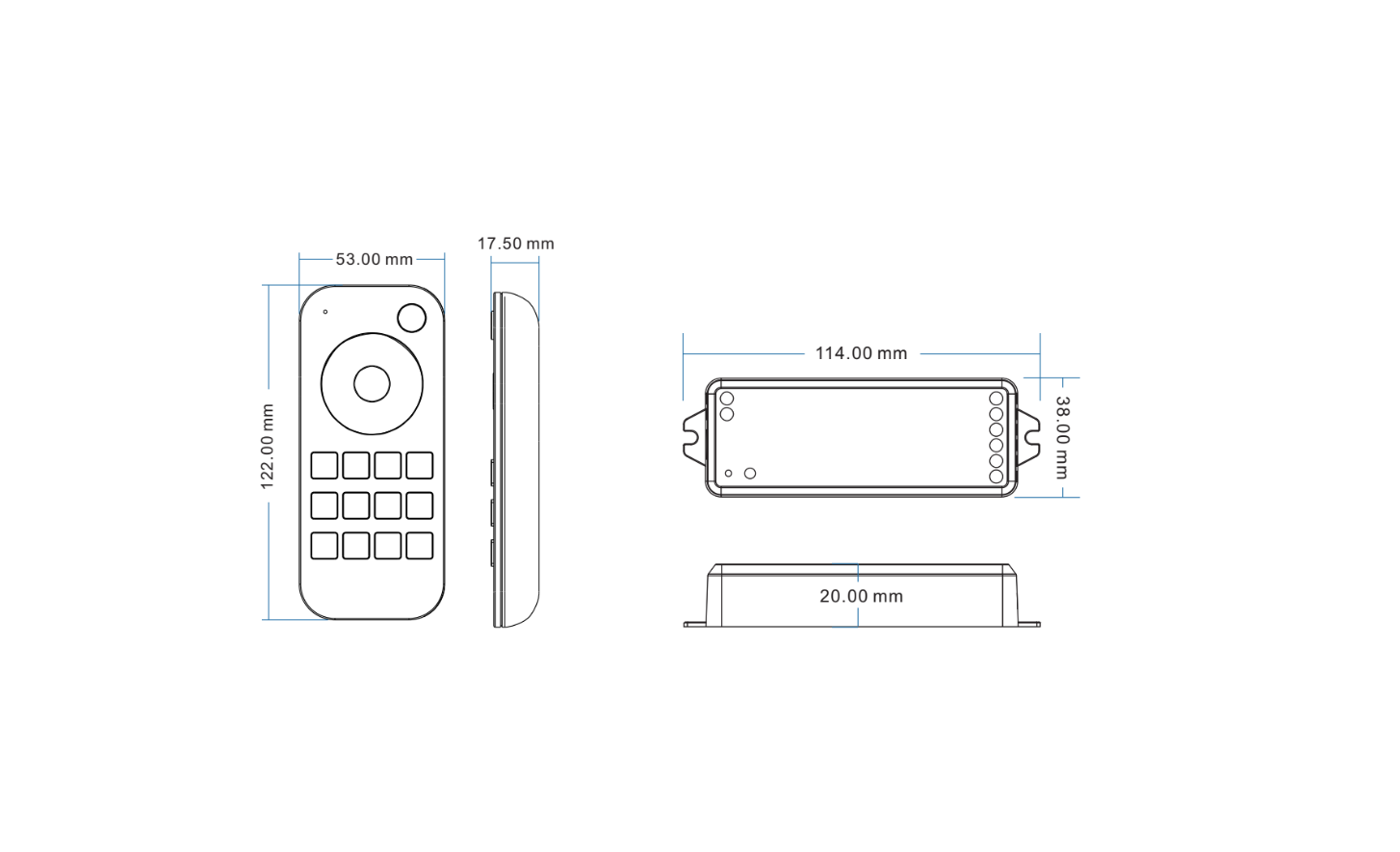

Capable of handling up to 192W at 12V or 384W at 24V, it delivers strong output performance with 4 channels at 4A each. Compact in size, the receiver measures 114mm x 33mm x 20mm, while the remote is 140mm x 60mm x 26mm.
Certified to CE, EMC, LVD, and RED standards and backed by a 5-year warranty, this controller kit is a durable, professional-grade solution for wireless LED control.
