10w | 24v | Light Box | White
Commercial Grade LED Strip Light
Full Specification
| Product Code | LB-W-10-6000-24V |
| Watts / M | 10W |
| Voltage | 24V |
| Led / M | 12 |

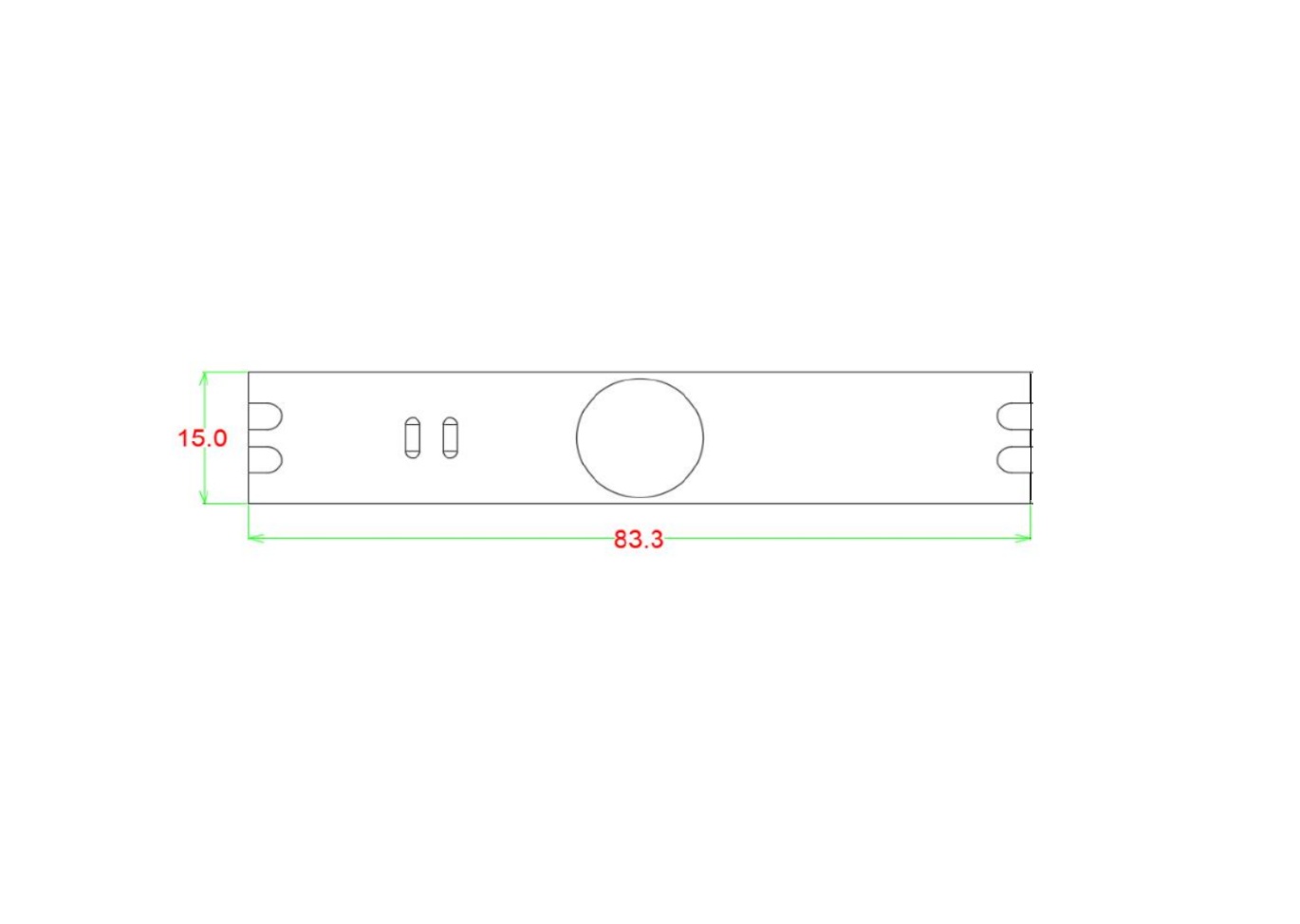

| Cut Points | 83.3mm |
| Strip Width | 15mm |
| Depth | 6.5mm |
| Lumens / M | 900 |
| Lumens / Watt | 90 |
| Colour Options | 2700K, 3000K, 4000K, 6000K |
| Cri | 90+ |
| Ip Rating | 20 |
| Beam Angle | 175° |
| Reel Length | 5m |
| Max Run Length | 5m (Power One End) |
| Warranty | 5 Years |
| Backing Tape | 3m 300LSE |
| Chip Set | Epistar (COB) |

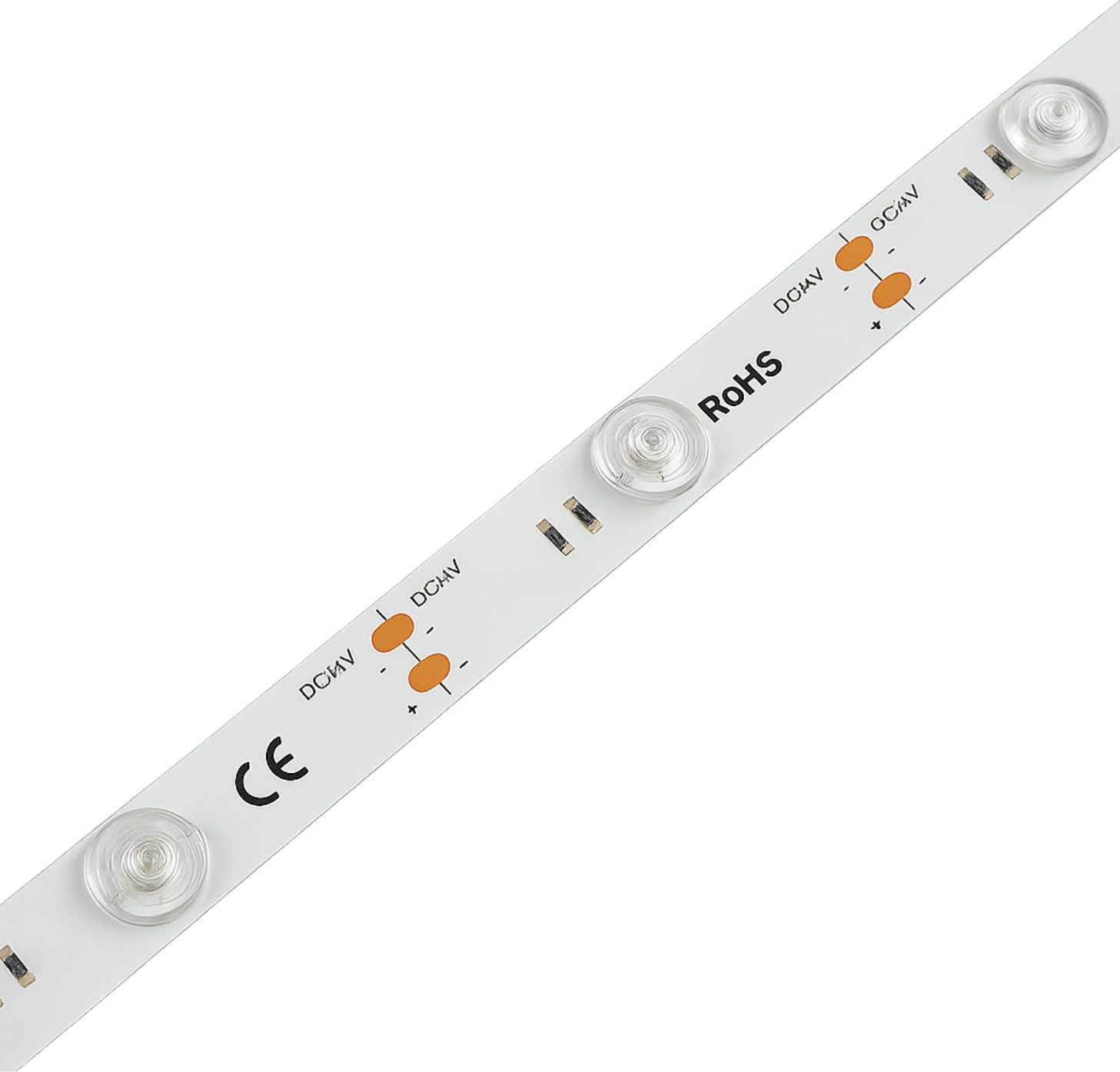

10W 24V Light Box LED Strip | Commercial Grade White
Built for signage, display panels, and backlit features, this 10W Light Box LED strip is designed to flood large surfaces with even, consistent illumination. Using just 12 high-output LEDs per metre, it delivers 900 lumens per metre at 90 lumens per watt, giving you strong brightness with excellent efficiency.
With a wide 175° beam angle, this strip spreads light evenly across light boxes and diffusers, eliminating hotspots and shadows. Choose from four clean white options — 2700K, 3000K, 4000K, or 6000K — all with a CRI of 90+ to ensure accurate colour rendering, perfect for retail graphics, exhibitions, or branding displays.

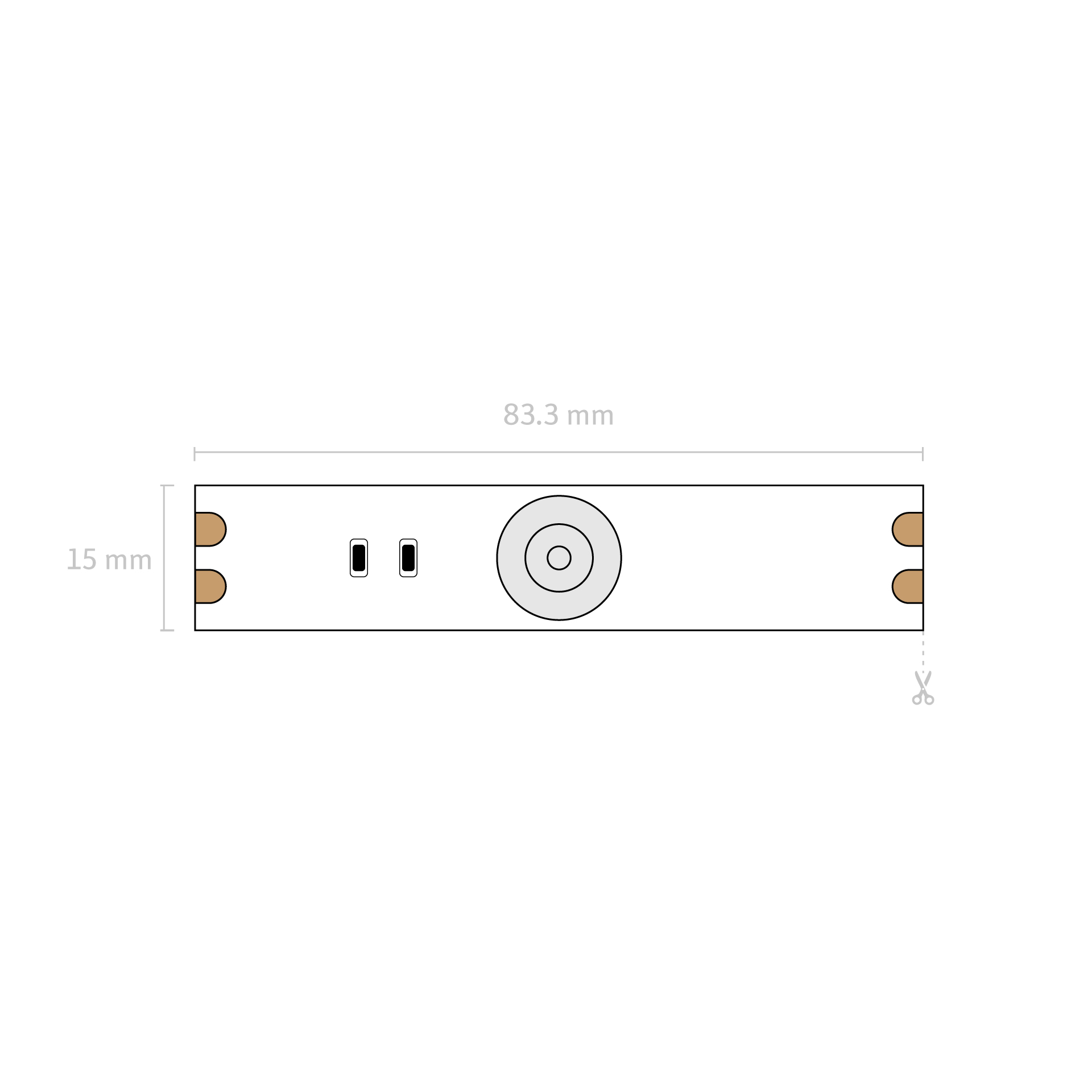

The strip is 15mm wide and 6.5mm deep, making it robust while still easy to install. Cut points every 83.3mm allow precise sizing, and each 5m reel can run its full length powered from one end. Backed with strong 3M 300LSE adhesive, it fixes securely to aluminium profiles or lightbox frames.
Powered by Epistar COB technology and built for commercial use, this strip comes with a 5-year warranty for peace of mind. Reliable, bright, and purpose-built, it’s the go-to solution for professional lightbox projects.
- Commercial Grade LED Tape
- High Quality COB (chip-on-board) LEDs
- High grade, long lasting resistors to stop LED chip damage
- Exceptionally smooth linear effect
- Narrow PCB, 20z thickness for maximum heat dispersion
- Premium white coating for protection of the PCB board and to stop short circuiting
