150W Constant Voltage LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-150-24 |
| Wattage | 150W |
| Voltage (DC) | 24v |
| Current (DC) | 6.25A |
| Length | 180mm |
| Width | 62.5mm |
| Depth | 30.5mm |
| Dimmable | Non Dimmable |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1A / 230V |
| Inrush Current | 75A / 230V |
| Input Frequency | 47 / 63Hz |
| Power Factor | >0.9 |
| Weight | 420g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
150W Constant Voltage LED Driver | 12V / 24V, IP20
This 150W constant voltage LED driver is built for powering larger LED lighting installations with reliability and efficiency. Converting 220/240V AC mains into a stable 12V or 24V DC output, it provides consistent power for commercial and residential LED strip lights, panels, and other low-voltage systems.
Delivering 6.25A at 24V DC, this unit offers strong, dependable performance while maintaining efficiency with a power factor greater than 0.9. It supports an input frequency of 47–63Hz and handles inrush currents of 75A/230V, making it suitable for professional-grade applications.

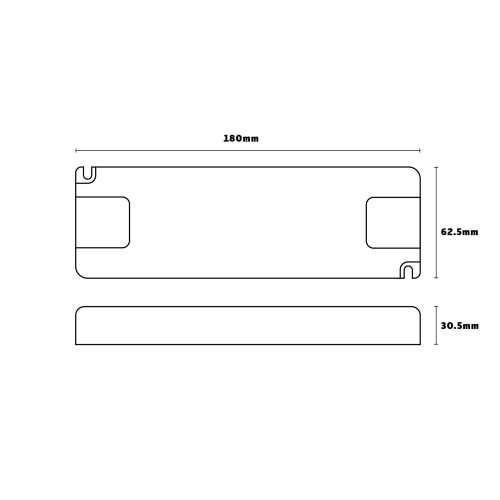

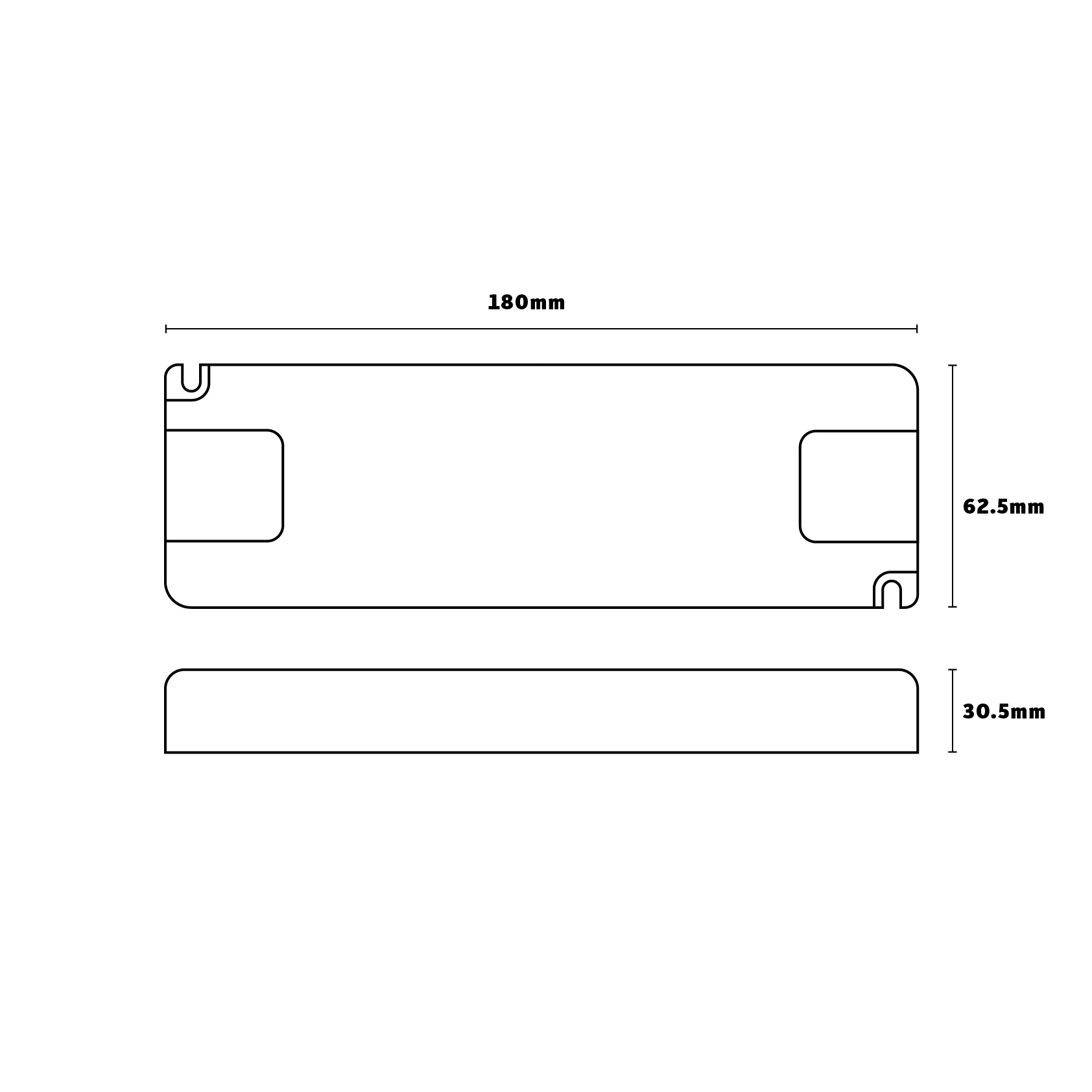

Measuring 180mm x 62.5mm x 30.5mm and weighing 420g, the driver is compact yet robust, fitting neatly into enclosures, cabinets, or LED profiles. Rated IP20, it is designed for indoor use in dry environments. With an operating temperature range from -20°C to 50°C, it performs reliably in varying conditions.
This model is non-dimmable, making it perfect for straightforward on/off applications where stable power is essential. Supplied with a 5-year warranty, the 150W constant voltage LED driver offers durability, safety, and peace of mind for long-term lighting installations.
