150W Constant Voltage, Slimline LED Driver, 12v, IP67
Commercial Grade Signage LED Driver
Full Specification
| Product Code | SL-150-12-IP |
| Wattage | 150W |
| Voltage (DC) | 12v |
| Current (DC) | 12.5A |
| Length | 264mm |
| Width | 41mm |
| Depth | 27mm |
| Dimmable | No |
| IP Rating | IP67 |
| Input Voltage | 175 / 265 AC |
| Input Current | 1.5A / 230V |
| Inrush Current | 40A / 230V |
| Input Frequency | 50 / 60Hz |
| Power Factor | >0.9 |
| Weight | 530g |
| Operating Temp | -20°C/50°C |
| Warranty | 3 Years |
150W Slimline LED Driver – 12V Constant Voltage, IP67 Rated
The 150W constant voltage LED driver is engineered for larger commercial signage and lighting installations that demand power, stability and long-term reliability. Delivering a consistent 12V DC output at 12.5A, it is the ideal solution for driving high-capacity LED systems with smooth, flicker-free illumination.

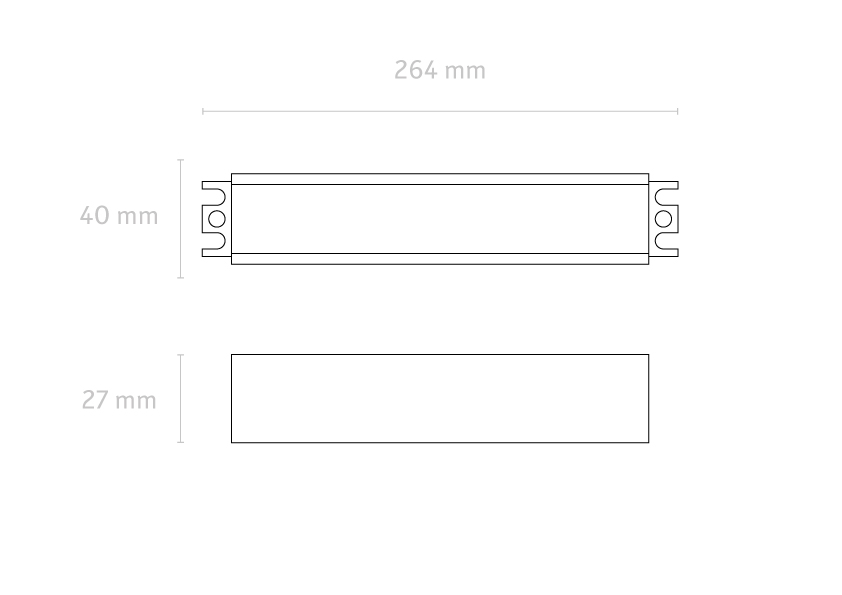

Designed in a slimline housing (264mm x 41mm x 27mm) and weighing 530g, it combines compact size with robust construction, allowing for easy installation even where space is limited.
The IP67 rating ensures full protection against dust and water ingress, making this driver suitable for both indoor and outdoor use. With an operating temperature range from -20°C to +50°C, it provides dependable performance in challenging environments, from outdoor signage to architectural lighting.
Built for efficiency, it features a wide 175–265V AC input range, a power factor above 0.9, and a low input current of 1.5A at 230V. A 40A inrush current capacity adds resilience during start-up, protecting connected systems from electrical surges.
This driver is non-dimmable, offering steady, reliable power output for signage, display and commercial lighting projects. Supported by a 3-year warranty, the 150W Slimline LED Driver is a durable choice for demanding applications.
