150W TRIAC Mains Dimmable LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | TR-150-24 |
| Wattage | 150W |
| Voltage (DC) | 24v |
| Current (DC) | 6.25A |
| Length | 360mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | TRIAC / Mains |
| IP Rating | IP20 |
| Input Voltage | 220/240 AC |
| Input Current | 0.85A @ 230V |
| Inrush Current | 50A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 730g |
| Operating Temp | -20°C / 50°C |
| Warranty | 5 Years |
150W TRIAC Mains Dimmable LED Driver – 12V/24V, IP20 Rated
The 150W TRIAC mains dimmable LED driver is a professional-grade power supply built for larger LED installations that require reliable dimming and consistent output. Providing a 24V DC constant voltage at up to 6.25A, it is ideal for powering multiple LED runs in commercial and residential projects.

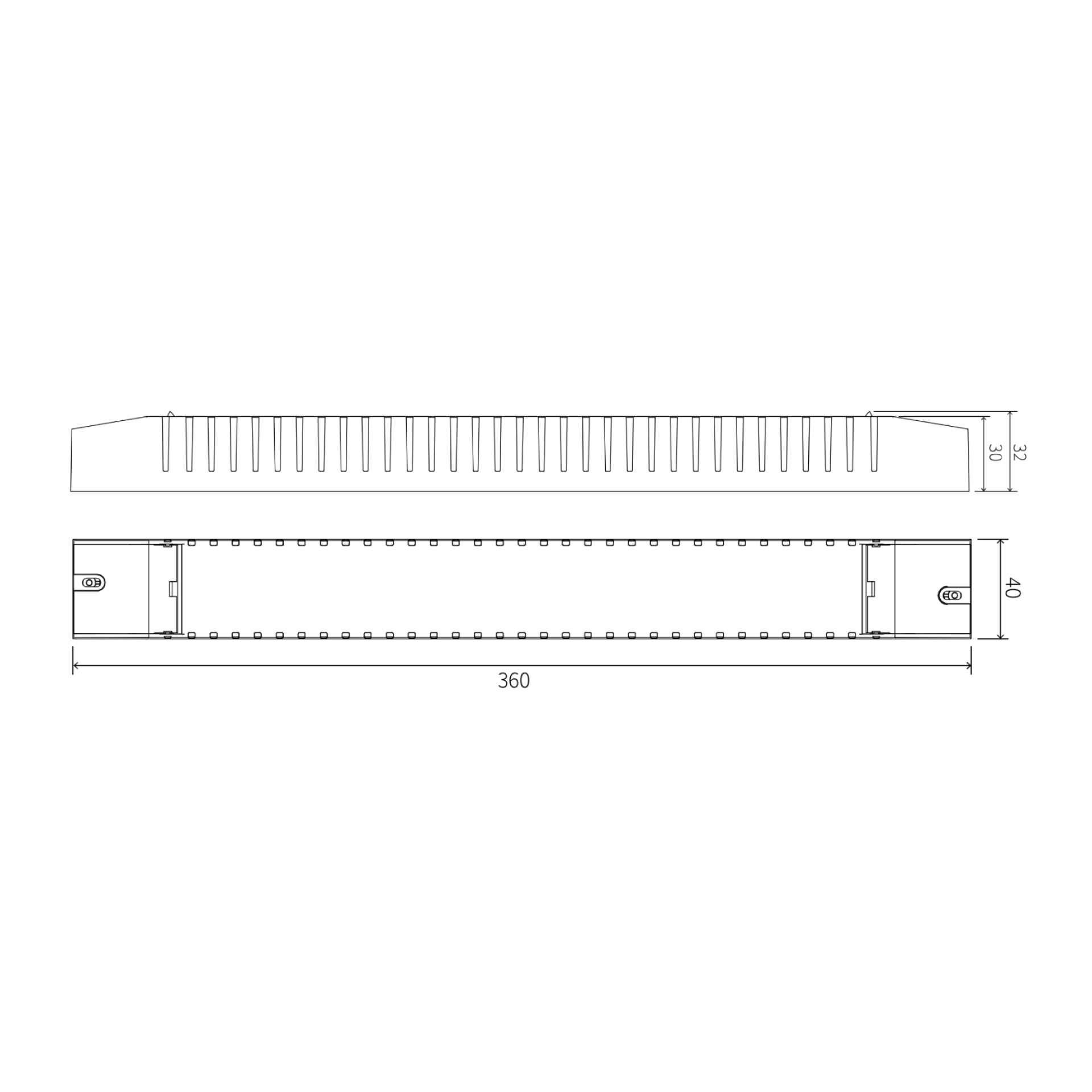

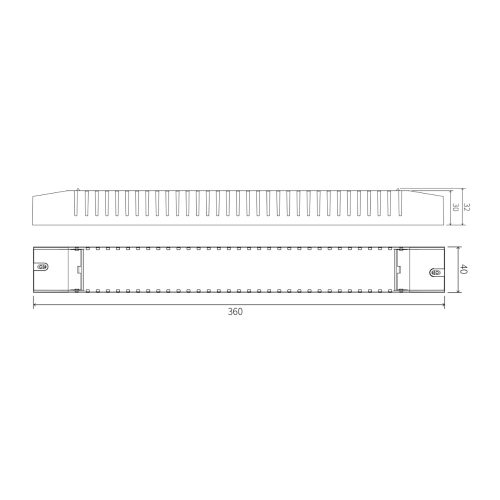

Designed to work with TRIAC dimmer switches, the driver delivers smooth, flicker-free dimming directly from the mains, making it perfect for applications where flexible lighting control is essential. Its slim housing (360mm x 40mm x 32mm) and weight of 730g ensure a robust yet compact design for easy installation.
With an IP20 rating, it is intended for indoor use and is well-suited to retail displays, hospitality venues, offices, and high-end residential spaces. Capable of operating in temperatures between -20°C and +50°C, it ensures durability and reliability in demanding conditions.
Built for efficiency, the unit features 220–240V AC input, a power factor above 0.95, and a modest input current of 0.85A at 230V. A 50A inrush current capacity provides added resilience during start-up, safeguarding connected systems.
Backed by a 5-year warranty, the 150W TRIAC dimmable LED driver is a trusted choice for powerful, controllable, and long-lasting LED lighting solutions.
