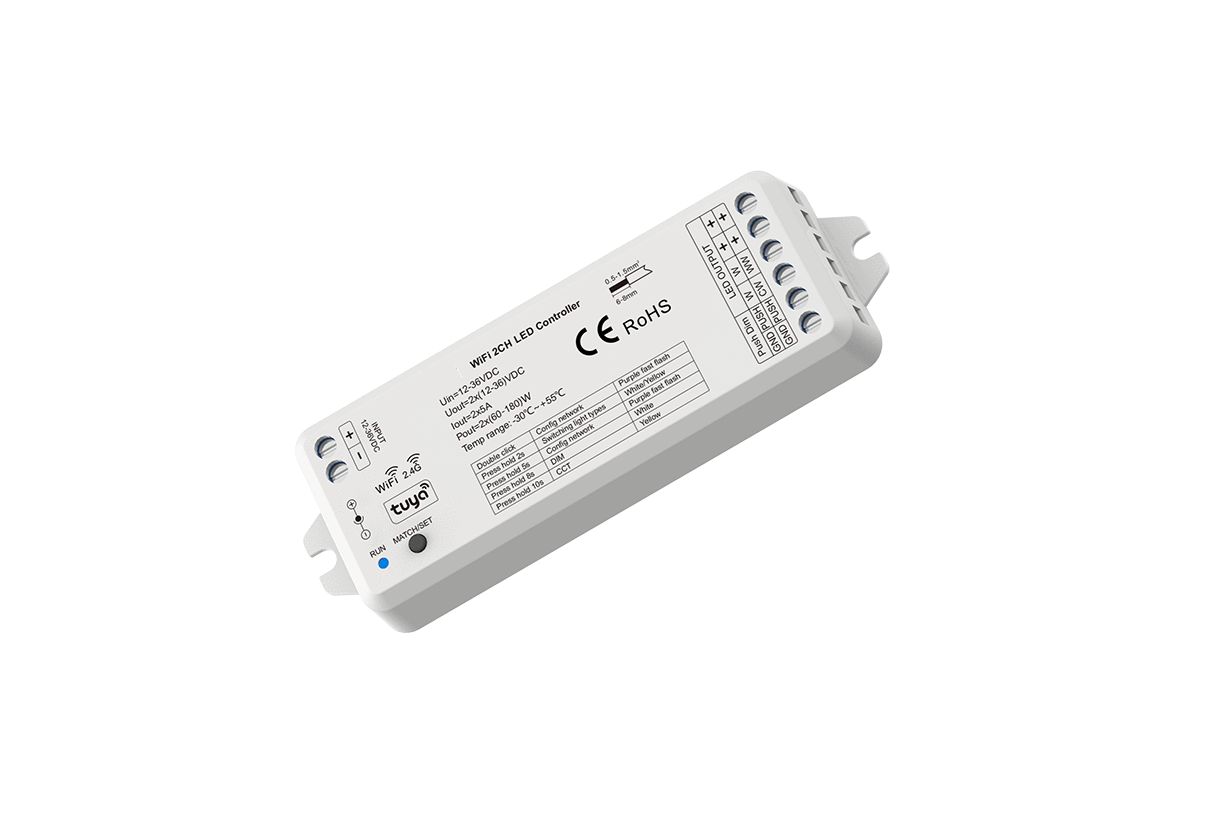

2 Channel | 2 x 5A Z WiFi & RF | Single Colour / CCT | LED Receiver (Tuya App)
Commercial Grade LED Receiver
Full Specification
| Product Code | RC-WIFI-RW-1 |
| Protocol | RF / WIFI (APP) |
| Compatible LED | White & Single-Colour / CCT |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 12-36V DC |
| Input Current | 10.5A |
| Output Voltage | 12-36V DC |
| Output Current | 2 x 5A/CH (10A) |
| Output Wattage | 120W -12v / 240W – 24v |
| Signal | WiFi + RF 2.4GHz + Push-DIM |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

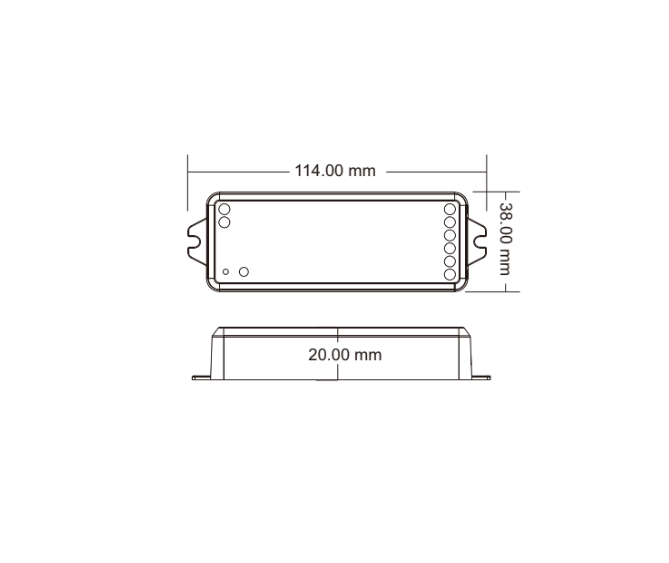

| Dimensions | L120 x W43 x H27mm |
| Weight | 0.073kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015/EN IEC 61547 ETSI EN 301 489-1/-3/-17 |
| Safety standard(LVD) | EN 61347-1/-2 |
| Radio Equipment(RED) | ETSI EN 300 440 ETSI EN 300 328 |
| Certification | CE, RoHs |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W / CT-DIM-4-B / CT-DIM-4-W CT-WALL-1-DIM-BAT / CT-WALL-4-CCT-BAT / CT-WALL-4-DIM-BAT RM-CCT-1 / RM-CCT-8 / RM-DIM-1 / RM-DIM-8 |
2 Channel WiFi & RF LED Receiver | Single Colour / CCT | Tuya App
This 2 Channel WiFi & RF LED Receiver offers versatile control for single colour and tunable white (CCT) LED lighting. Compatible with the Tuya Smart App, it allows convenient wireless control from your phone, while also supporting RF 2.4GHz remotes and Push-DIM operation.
Each channel delivers 5A output, providing 120W at 12V or 240W at 24V, ensuring reliable performance for both residential and commercial LED installations. Operating at 12–36V DC, it supports 0–100% smooth dimming and a control range of up to 30m via RF.
Compact and lightweight at 120mm x 43mm x 27mm and just 0.073kg, it’s easy to install into profiles, cabinets, or enclosures.
Certified to CE and RoHS standards and backed by a 5-year warranty, this dual-channel receiver combines flexibility, reliability, and smart functionality — perfect for professional-grade single colour or CCT LED lighting control.
