200W Constant Voltage LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-200-24 |
| Wattage | 200W |
| Voltage (DC) | 24v |
| Current (DC) | 8.33A |
| Length | 195mm |
| Width | 67mm |
| Depth | 31.5mm |
| Dimmable | Non Dimmable |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1.5A / 230V |
| Inrush Current | 75A / 230V |
| Input Frequency | 47 / 63Hz |
| Power Factor | >0.9 |
| Weight | 500g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
200W Constant Voltage LED Driver | 12V / 24V, IP20
This 200W constant voltage LED driver is designed for large-scale LED lighting projects where stable, reliable power is essential. It converts 220/240V AC mains input into a consistent 12V or 24V DC output, providing dependable performance for commercial and residential LED strip lights, panels, and other low-voltage systems.
Delivering 8.33A at 24V DC, it ensures robust power delivery while maintaining high efficiency with a power factor greater than 0.9. With an input frequency of 47–63Hz and an inrush current of 75A/230V, this driver is engineered to handle demanding professional applications with ease.

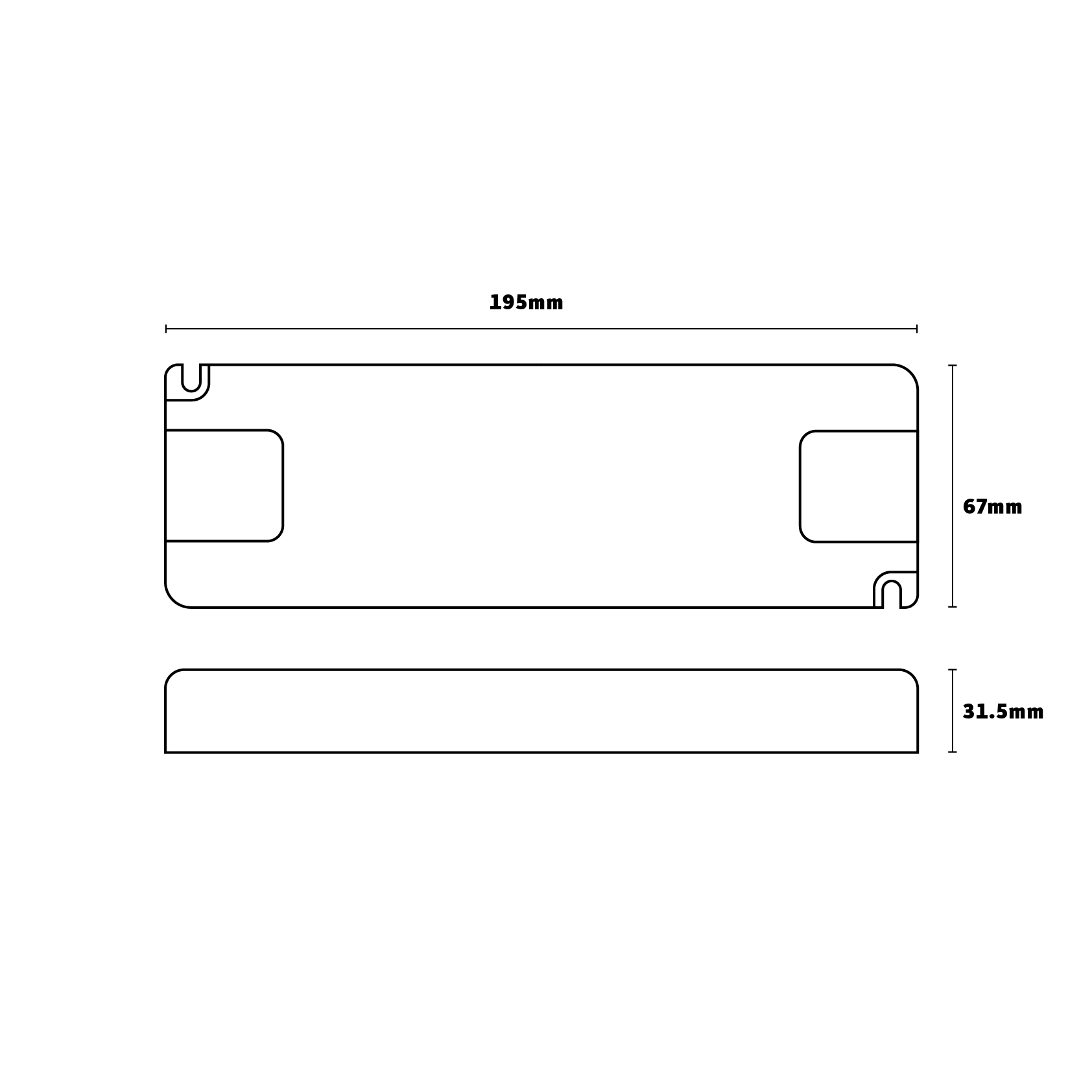

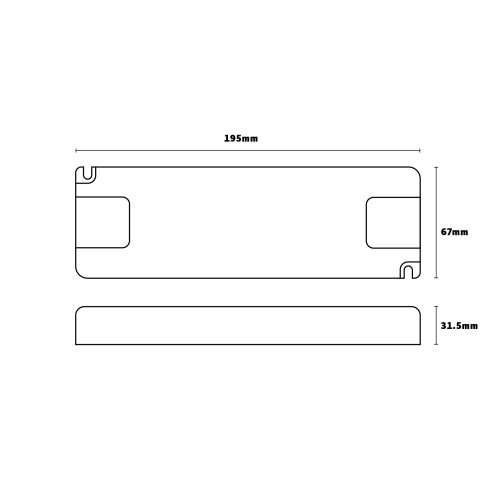

Measuring 195mm x 67mm x 31.5mm and weighing 500g, it is compact yet powerful, fitting neatly into enclosures or electrical housings. Rated IP20, it is designed for indoor use in dry environments. It operates reliably in a wide temperature range from -20°C to 50°C, ensuring consistent performance in varied conditions.
This driver is non-dimmable, making it ideal for standard on/off applications where stable voltage is required. Backed with a 5-year warranty, the 200W constant voltage LED driver delivers safety, efficiency, and long-lasting reliability for professional lighting installations.
