200W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-200-24 |
| Wattage | 200W |
| Voltage (DC) | 24v |
| Current (DC) | 8.33A |
| Length | 310mm |
| Width | 60mm |
| Depth | 45mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1A @ 230V |
| Inrush Current | 50A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 860g |
| Operating Temp | -20°C / 50°C |
| Warranty | 5 Years |
200W DALI Dimmable LED Driver – 24V, IP20 Rated
The 200W DALI dimmable LED driver is a high-performance solution built for large LED lighting systems where reliable power and advanced dimming control are essential. Delivering a constant 24V DC output at up to 8.33A, it provides stable, flicker-free performance for demanding commercial and residential applications.
Supporting both DALI and 1–10V/0–10V dimming protocols, this driver integrates seamlessly into modern lighting control systems, offering smooth, precise brightness adjustment. Ideal for large retail environments, hospitality venues, offices, and residential projects, it gives flexibility and reliability where consistent lighting is required.

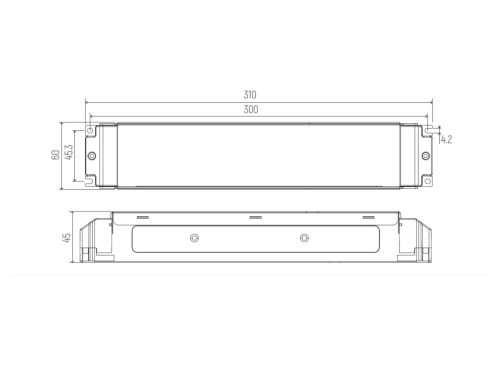

With a durable yet practical design (310mm x 60mm x 45mm) and weighing 860g, the unit is easy to install while offering robust performance for professional use. Rated IP20, it is intended for indoor use and operates effectively within a wide temperature range of -20°C to +50°C.
Engineered for efficiency, the driver operates on 220–240V AC input, delivering a power factor greater than 0.95 with a low input current of 1A at 230V. A 50A inrush current capacity further protects connected systems during start-up.
Backed by a 5-year warranty, the 200W DALI dimmable LED driver is a dependable choice for large-scale lighting projects requiring efficient, controllable, and long-lasting performance.
