200W TRIAC Mains Dimmable LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | TR-200-24 |
| Wattage | 200W |
| Voltage (DC) | 24v |
| Current (DC) | 8.3A |

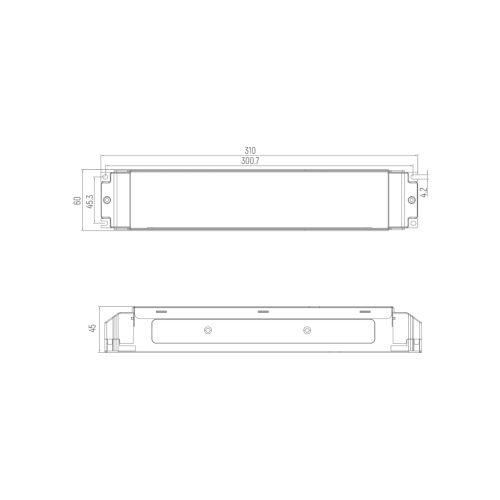

| Length | 310mm |
| Width | 60mm |
| Depth | 45mm |
| Dimmable | TRIAC / Mains |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1A @ 230V |
| Inrush Current | 27A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 842g |
| Operating Temp | -20°C / 50°C |
| Warranty | 5 Years |
200W TRIAC Mains Dimmable LED Driver – 12V/24V, IP20 Rated
The 200W TRIAC mains dimmable LED driver is a powerful, high-capacity solution designed for large LED installations that demand reliable performance and smooth dimming control. Delivering a 24V DC constant output at up to 8.3A, it provides stable power for extensive commercial or residential lighting projects.
Compatible with TRIAC dimmer switches, this driver enables precise, flicker-free dimming directly from the mains, making it ideal for applications that require adaptable lighting levels. Its sturdy yet compact casing (310mm x 60mm x 45mm) and weight of 842g provide durability while remaining practical for installation.
Rated IP20, the unit is designed for indoor use, making it suitable for retail, hospitality, office, and residential environments where lighting control plays a key role. Operating between -20°C and +50°C, it ensures dependable performance even in challenging conditions.
With 220–240V AC input, a power factor above 0.95, and a low input current of 1A at 230V, the driver offers high efficiency. A 27A inrush current capacity enhances system protection during start-up, safeguarding connected LEDs.
Backed by a 5-year warranty, the 200W TRIAC dimmable LED driver is a reliable choice for large-scale lighting applications requiring control, efficiency, and long-term durability.
