20w 24v PIXEL (SPI) COB Dotless CCT Tunable White LED Strip Light
Commercial Grade LED Strip Light
Full Specification
| Product Code | CCT-20-PIXEL-COB / IP |
| Watts / M | 20W |
| Voltage (DC) | 24V |
| Led / M | 576 |

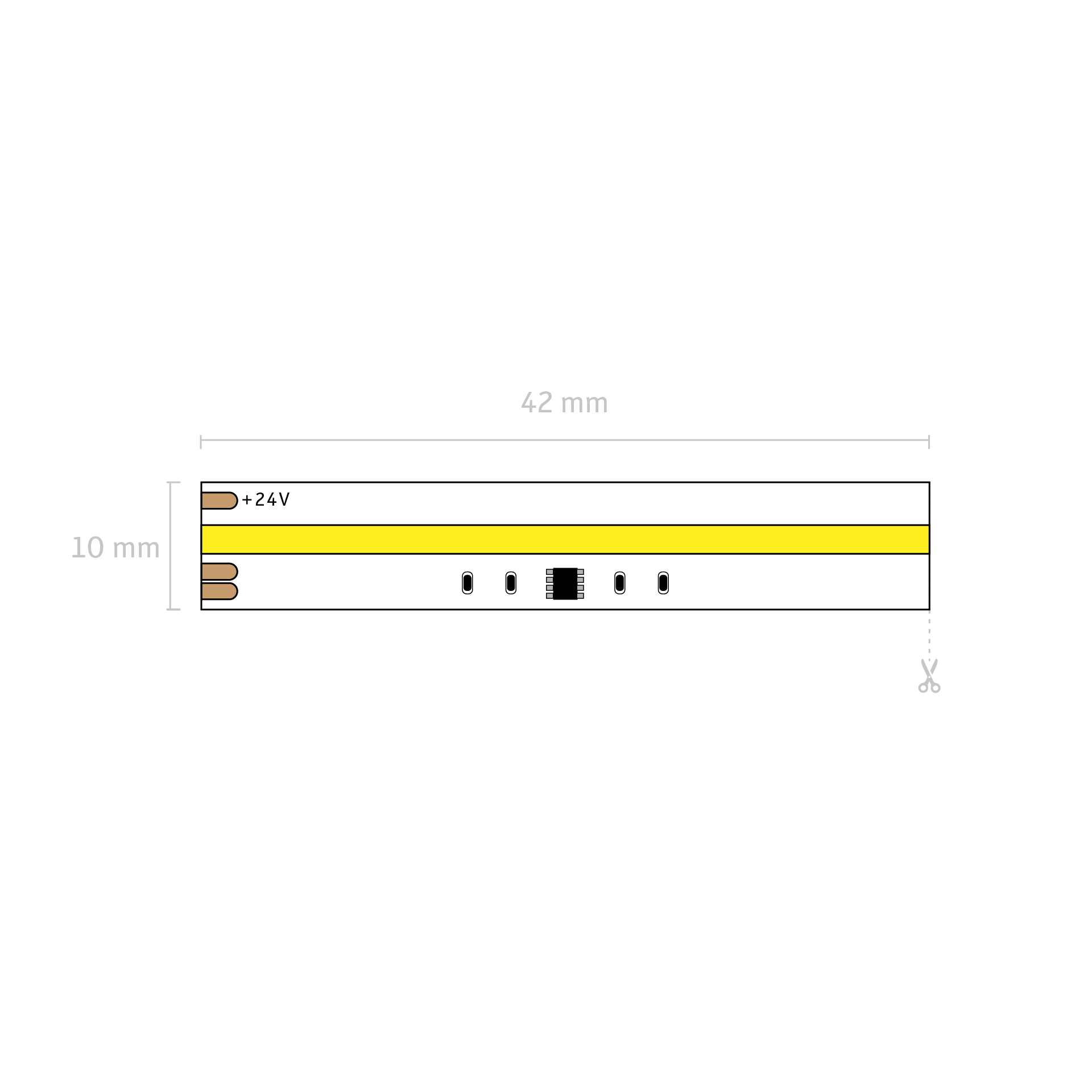

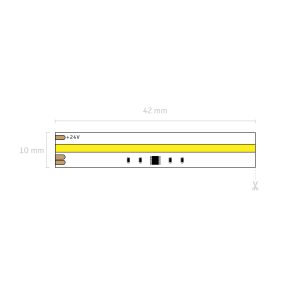

| Cut Points | 42mm |
| Strip Width | 10mm (IP: 10.5mm) |
| Lumens / M | 1920 |
| Lumens / Watt | 95 |
| Colour Options | 2700K-6500K |
| Cri | 90+ |
| Ip Rating | 20, 65, 67 |
| Beam Angle | 180° |
| Reel Length | 5m |
| Max Run Length | 10m (Power One End) |
| Warranty | 5 Years |
| Backing Tape | 3m 300LSE |
| Chip Set | Epistar (WS2811) |
High-Efficiency 20W Dotless LED Strip Light
Built for performance and precision, this 20W/m LED strip light delivers serious brightness with 576 LEDs per metre, pushing out 1920 lumens per metre. Powered by Epistar’s WS2811 chipset, it offers pixel-level control with built-in ICs every 42mm, giving you smooth, customisable lighting across your space.
With a high CRI of 90+, colours stay true to life. Choose from a wide CCT range of 2700K to 6500K — from warm white to cool daylight tones — to suit any setup. Beam angle is a wide 180°, ensuring full light coverage.
It’s built for flexibility too: available in IP20, IP65, and IP67 versions, so whether it’s indoor accent lighting or splash-prone areas, you’re covered. The 10mm strip (10.5mm with coating) runs up to 10 metres powered from one end, with strong 3M 300LSE backing tape for easy install.
Perfect for commercial or residential projects needing high output and control. Supplied in 5m reels and backed by a solid 5-year warranty.
- High Quality Branded LED Chip
- LEDs are independently addressable (via SPI protocol)
- Commercial Grade Digital LED Strip Lights
