24W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Commercial Grade LED Driver
Full Specification
| Product Code | DD-024-24 |
| Wattage | 24W |
| Voltage (DC) | 24v |
| Current (DC) | 1A |
| Length | 150mm |
| Width | 42.5mm |
| Depth | 28.5mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220/240 AC |
| Input Current | 0.15A @ 230V |
| Inrush Current | 15A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 151g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
24W DALI Dimmable LED Driver – 24V, IP20 Rated
Our 24W DALI dimmable LED driver is a compact, professional-grade power supply built for projects that demand precise and flexible lighting control. Delivering a steady 24V DC constant output at up to 1A, it provides reliable power for smaller LED installations while supporting smooth dimming functionality.

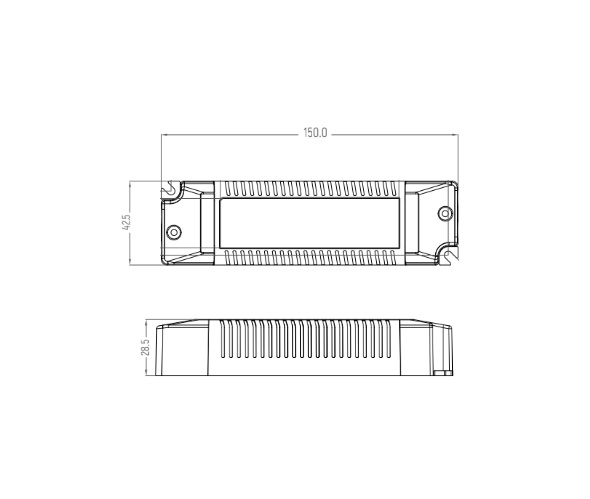

Compatible with both DALI and 1–10V/0–10V dimming protocols, this driver offers excellent versatility, allowing integration into a wide range of smart control systems. Its slim, lightweight design (150mm x 42.5mm x 28.5mm, 151g) makes installation straightforward, even in tight or discreet spaces.
Rated IP20, it is designed for indoor use, making it suitable for commercial environments, offices, retail displays, and residential applications where controlled, efficient lighting is essential. With an operating temperature range of -20°C to +50°C, it delivers dependable performance across varied conditions.
Engineered for efficiency, it features 220–240V AC input, a power factor greater than 0.95, and a very low input current of 0.15A at 230V. A 15A inrush current capacity adds resilience during start-up, protecting connected LED systems.
Backed by a 5-year warranty, the 25W DALI dimmable LED driver is a dependable choice for energy-efficient, controllable, and long-lasting LED lighting solutions.
