25W TRIAC Mains Dimmable LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | TR-025-24 |
| Wattage | 25W |
| Voltage (DC) | 24v |
| Current (DC) | 1.04A |
| Length | 155mm |
| Width | 54mm |
| Depth | 21mm |
| Dimmable | TRIAC / Mains |
| IP Rating | IP20 |
| Input Voltage | 180 / 240 AC |
| Input Current | 0.28A @ 230V |
| Inrush Current | 20A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 210g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
25W TRIAC Mains Dimmable LED Driver – 12V/24V, IP20 Rated
The 25W TRIAC mains dimmable LED driver is designed for professional LED lighting projects where smooth, reliable dimming is essential. Offering a constant 24V DC output at up to 1.04A, it provides dependable power for small to medium LED installations with flicker-free performance.

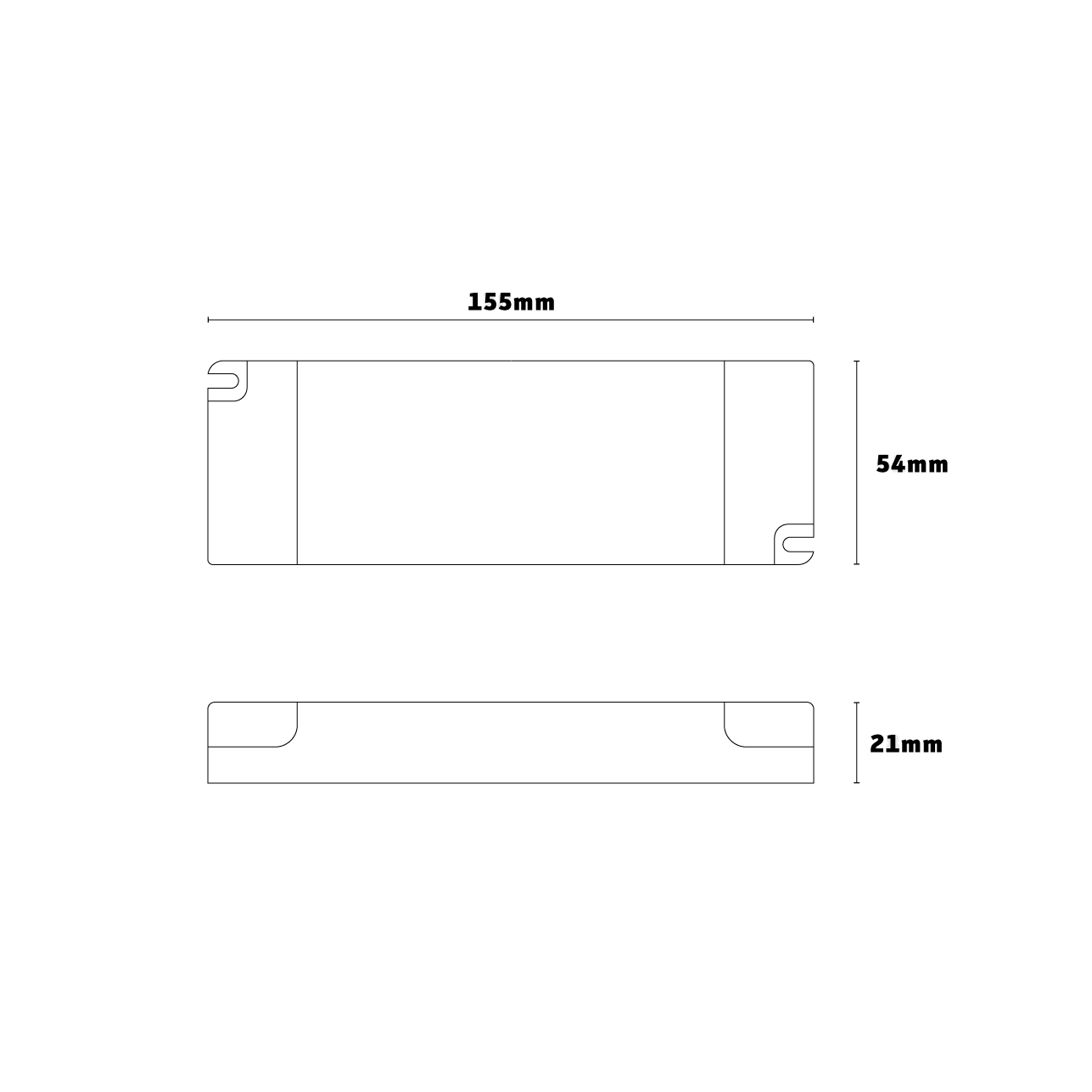

This driver is fully compatible with TRIAC dimming systems, allowing you to adjust brightness directly from standard mains dimmer switches. Its compact housing (155mm x 54mm x 21mm) and weight of just 210g make it easy to integrate into discreet spaces while maintaining robust performance.
Rated IP20, the driver is intended for indoor use, making it perfect for residential, retail, or commercial applications where controlled lighting levels are required. With an operating temperature range of -20°C to +50°C, it delivers reliable performance across varied environments.
Engineered for efficiency, it supports an input voltage of 180–240V AC, with a power factor greater than 0.95 and a low input current of 0.28A at 230V. A 20A inrush current capacity provides extra protection during power-up, ensuring long-lasting system stability.
Backed by a 5-year warranty, the 25W TRIAC dimmable LED driver is a dependable choice for precise, flexible lighting control.
