300W Constant Voltage, Slimline LED Driver, 12v, IP67
Commercial Grade Signage LED Driver
Full Specification
| Product Code | SL-300-12-IP |
| Wattage | 300W |
| Voltage (DC) | 12v |
| Current (DC) | 25A |
| Length | 322mm |
| Width | 41mm |
| Depth | 27mm |
| Dimmable | No |
| IP Rating | IP67 |
| Input Voltage | 175 / 265 AC |
| Input Current | 3A / 230V |
| Inrush Current | 75A / 230V |
| Input Frequency | 50 / 60Hz |
| Power Factor | >0.9 |
| Weight | 710g |
| Operating Temp | -20°C/50°C |
| Warranty | 3 Years |
300W Slimline LED Driver – 12V Constant Voltage, IP67 Rated
The 300W constant voltage LED driver is a high-capacity power supply designed for large commercial signage and heavy-duty LED lighting installations. Delivering a reliable 12V DC output at up to 25A, it ensures consistent, flicker-free illumination across extensive LED systems.

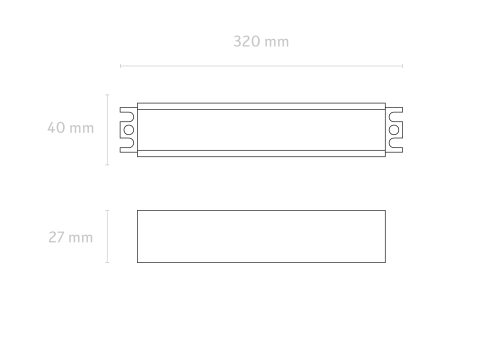

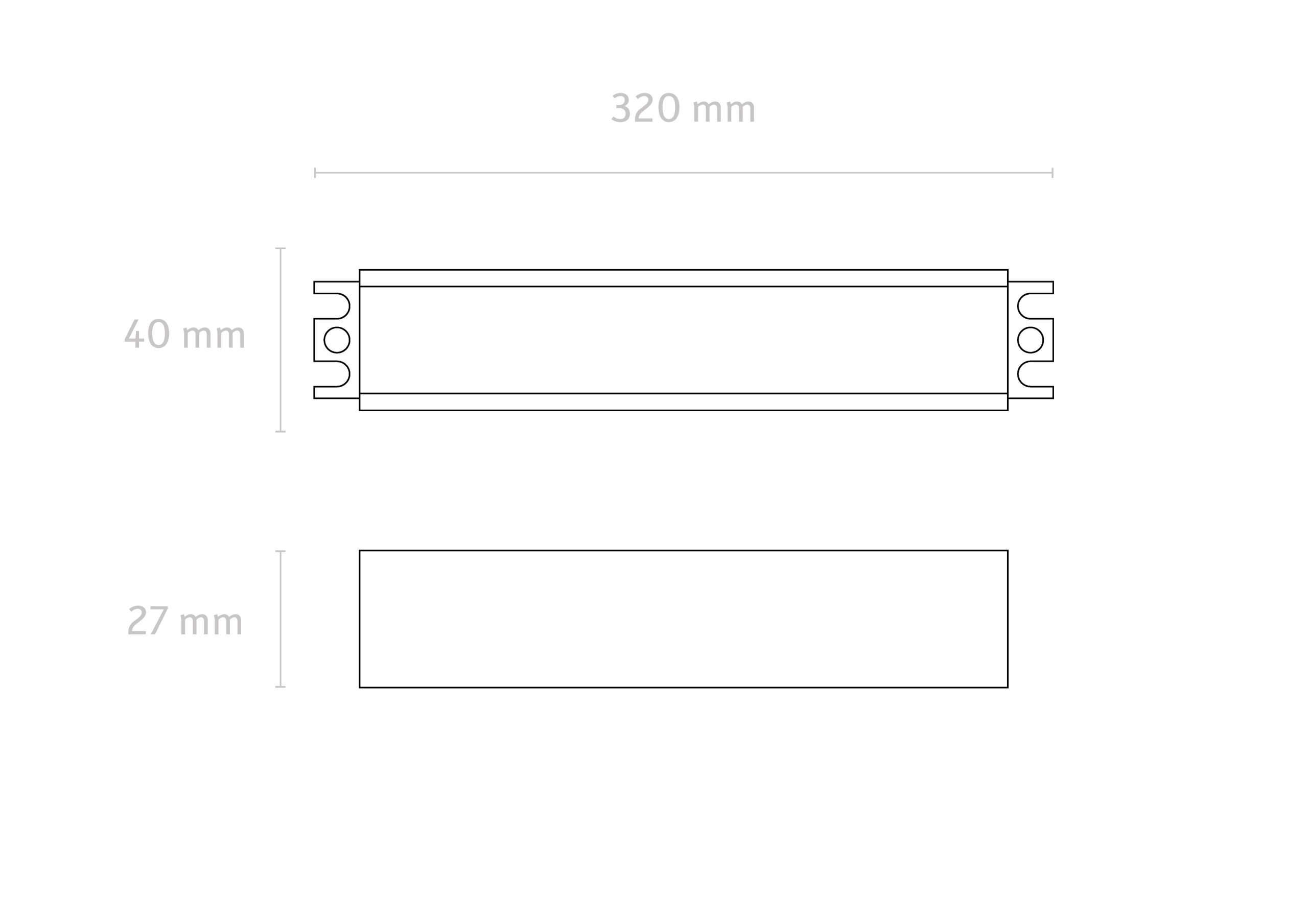

Measuring 322mm x 41mm x 27mm and weighing 710g, its slimline construction allows for easy integration into tight spaces without sacrificing strength or performance.
With an IP67 rating, this driver is fully protected against dust and water ingress, making it suitable for both indoor and outdoor environments. Its wide operating range of -20°C to +50°C ensures dependable performance in all weather conditions, from cold storage areas to exposed exterior signage.
Built for efficiency and durability, it supports an input voltage of 175–265V AC, with a power factor greater than 0.9 and an input current of just 3A at 230V. A robust 75A inrush current capacity adds protection at start-up, safeguarding connected systems against sudden surges.
This unit is non-dimmable, making it ideal for applications that demand steady, reliable output. Backed by a 3-year warranty, the 300W Slimline LED Driver is the professional choice for powering large-scale LED signage and lighting projects.
