320W Constant Voltage LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-320-24 |
| Wattage | 320W |
| Voltage (DC) | 24v |
| Current (DC) | 13.33A |
| Length | 215mm |
| Width | 77.5mm |
| Depth | 35mm |
| Dimmable | Non Dimmable |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1.7A / 230V |
| Inrush Current | 75A / 230V |
| Input Frequency | 47 / 63Hz |
| Power Factor | >0.9 |
| Weight | 860g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
320W Constant Voltage LED Driver | 12V / 24V, IP20
This 320W constant voltage LED driver is built for large-scale, commercial-grade lighting installations where maximum power and reliability are essential. Designed to convert 220/240V AC mains into a stable 12V or 24V DC output, it provides consistent performance for LED strip lights, panels, and other low-voltage systems.
Delivering 13.33A at 24V DC, this driver supplies robust, efficient power with a high power factor greater than 0.9. With an input frequency of 47–63Hz and an inrush current of 75A/230V, it is engineered for demanding professional environments, making it suitable for retail, hospitality, and architectural projects.

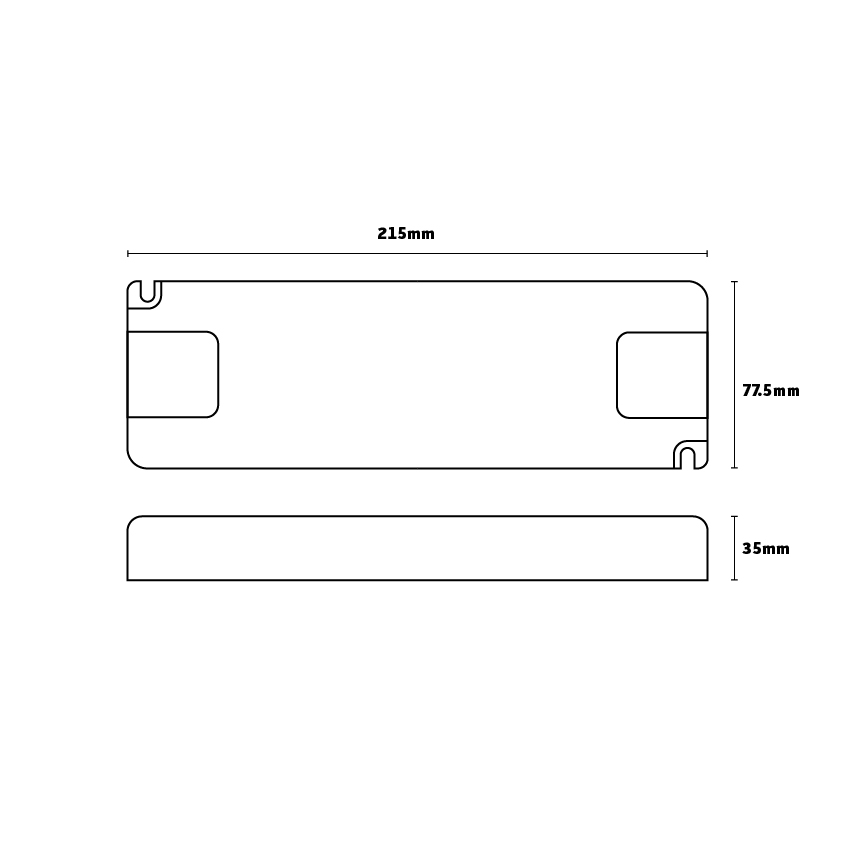

Measuring 215mm x 77.5mm x 35mm and weighing 860g, the driver is compact yet powerful, fitting neatly into enclosures or electrical housings. Rated IP20, it is designed for indoor use in dry conditions. It operates reliably across a wide temperature range of -20°C to 50°C.
This driver is non-dimmable, ideal for straightforward on/off applications where stable, uninterrupted power is required. Backed by a 5-year warranty, the 320W constant voltage LED driver delivers efficiency, safety, and long-lasting reliability for high-demand lighting systems.
