320W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-320-24 |
| Wattage | 320W |
| Voltage (DC) | 24v |
| Current (DC) | 13.3A |
| Length | 360mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 1.6A @ 230V |
| Inrush Current | 80A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 630g |
| Operating Temp | -20°C / 50°C |
| Warranty | 5 Years |
320W DALI Dimmable LED Driver – 24V, IP20 Rated
The 320W DALI dimmable LED driver is built for large-scale LED lighting systems that require high power, stability, and advanced control. Delivering a constant 24V DC output at up to 13.3A, it provides consistent, flicker-free performance across extensive commercial and residential installations.
Supporting both DALI and 1–10V/0–10V dimming protocols, the driver integrates seamlessly into professional lighting networks, enabling smooth and precise dimming control. From retail and office environments to hospitality venues and high-end residential projects, it offers flexibility and reliability for demanding applications.

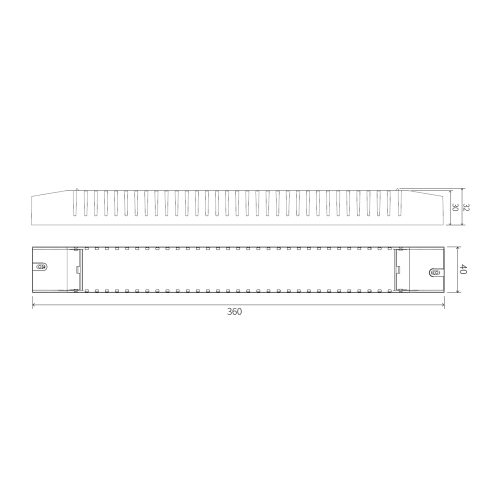

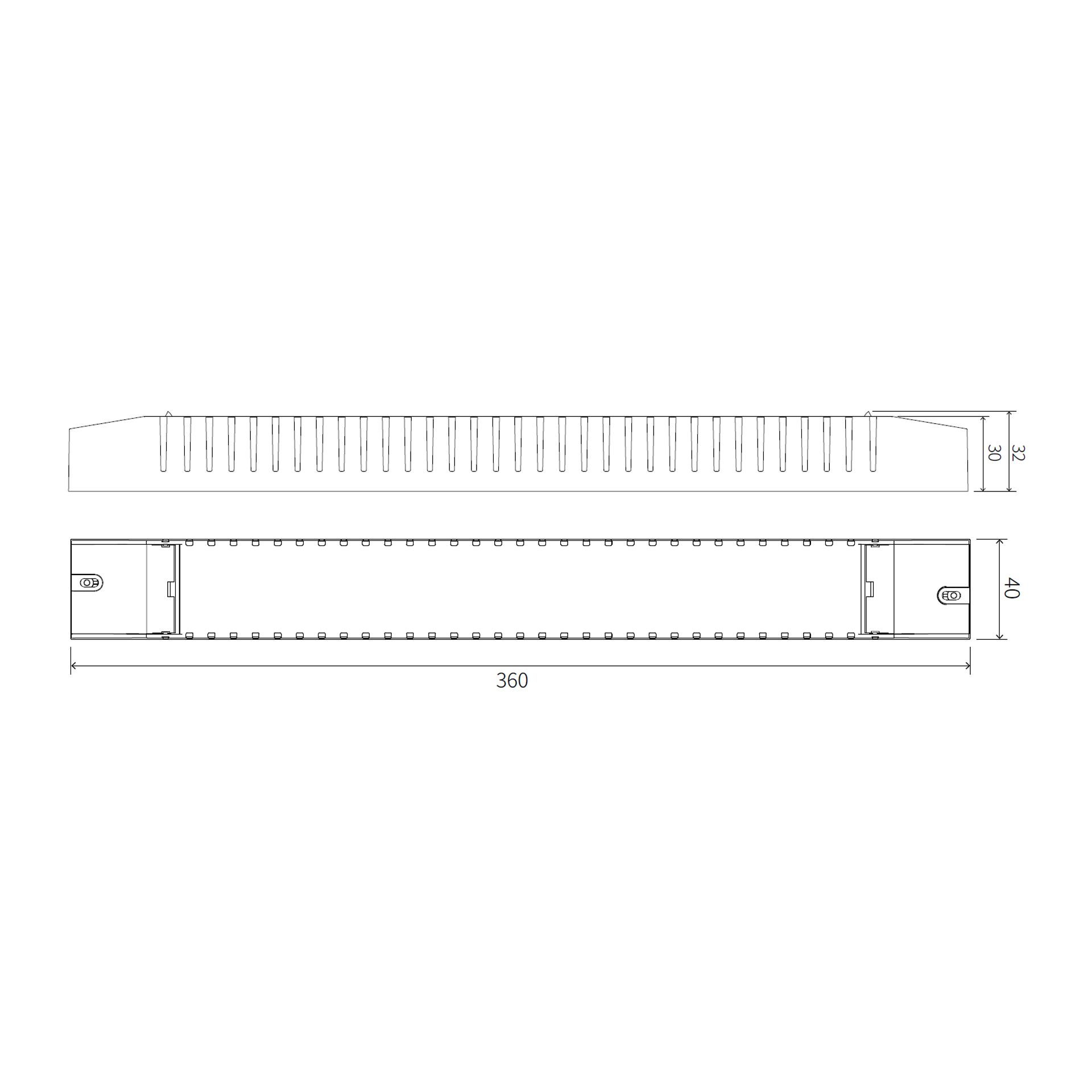

Measuring 360mm x 40mm x 32mm and weighing 630g, the slim and practical housing makes installation straightforward without compromising durability. Rated IP20, the unit is intended for indoor use and operates reliably across a temperature range of -20°C to +50°C, ensuring dependable performance in varied environments.
Engineered for efficiency, it operates on 220–240V AC input with a power factor greater than 0.95 and a modest input current of 1.6A at 230V. A robust 80A inrush current capacity protects connected systems during start-up, enhancing longevity and safety.
Backed by a 5-year warranty, the 320W DALI dimmable LED driver is a trusted choice for large projects that demand efficiency, advanced control, and long-term reliability.
