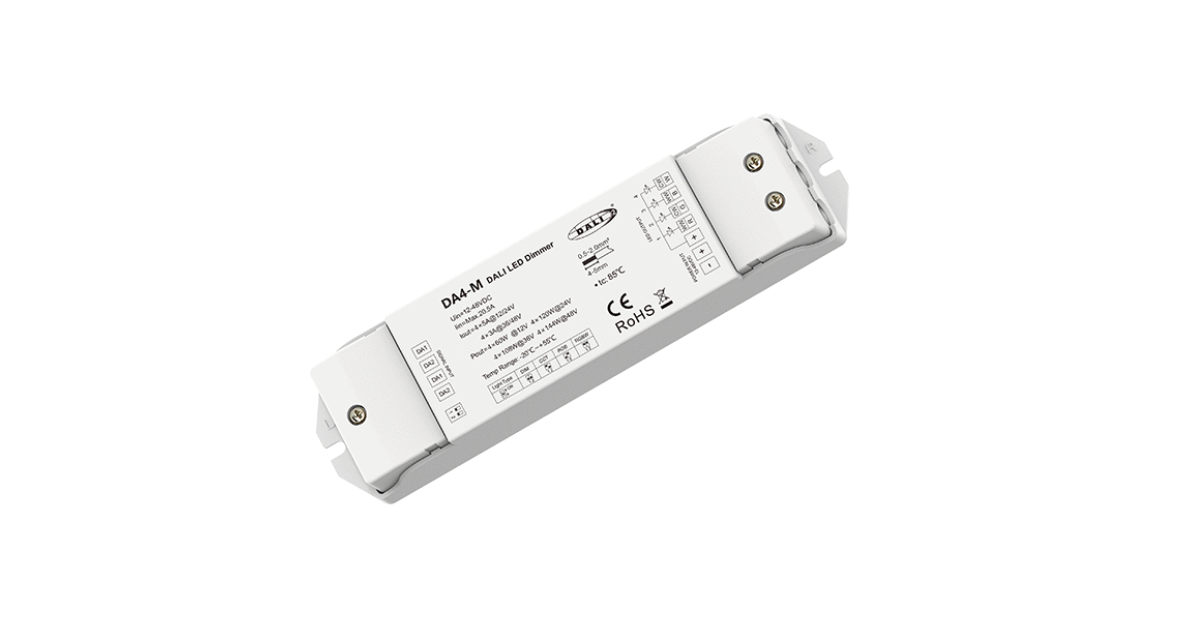

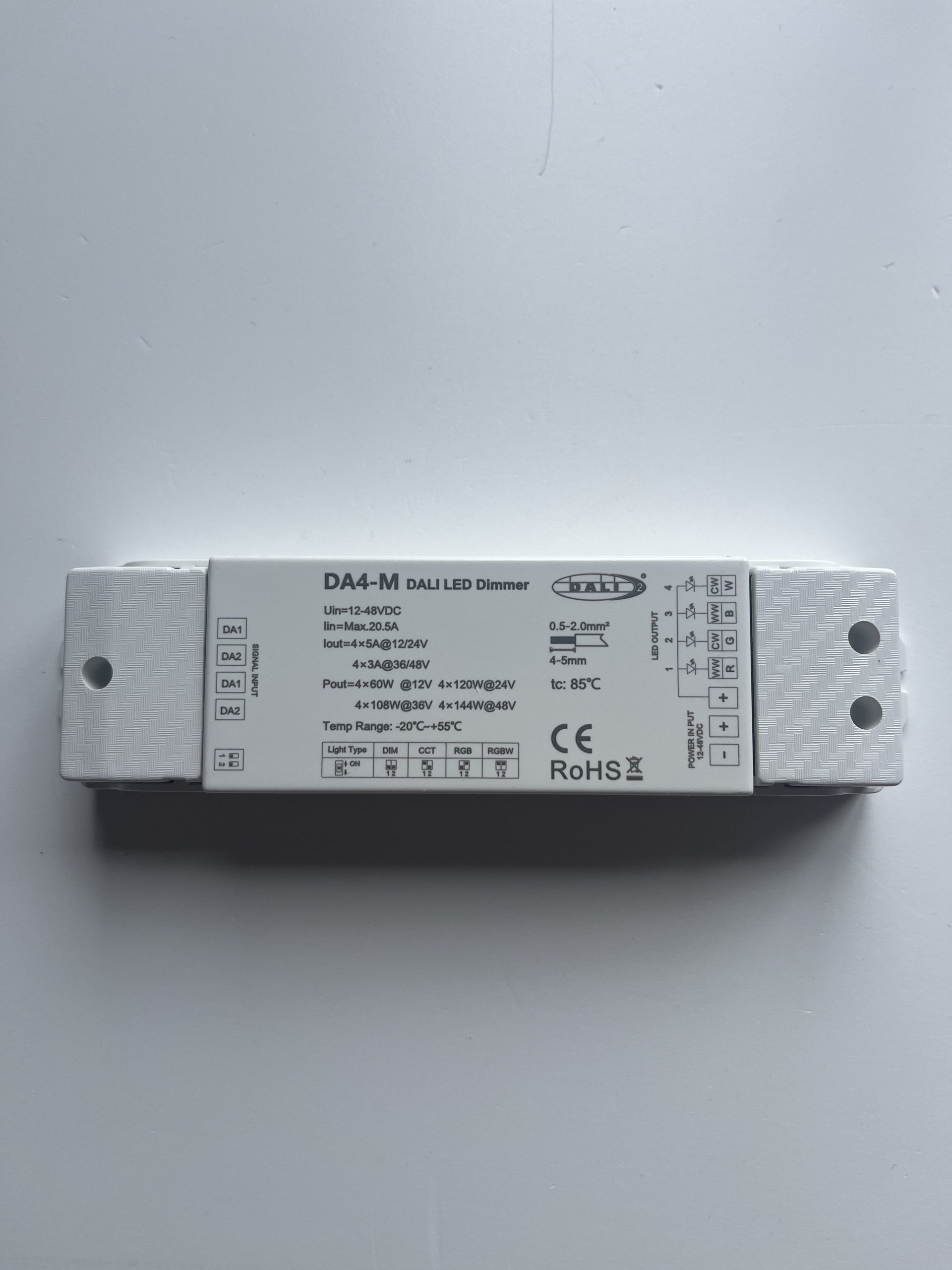

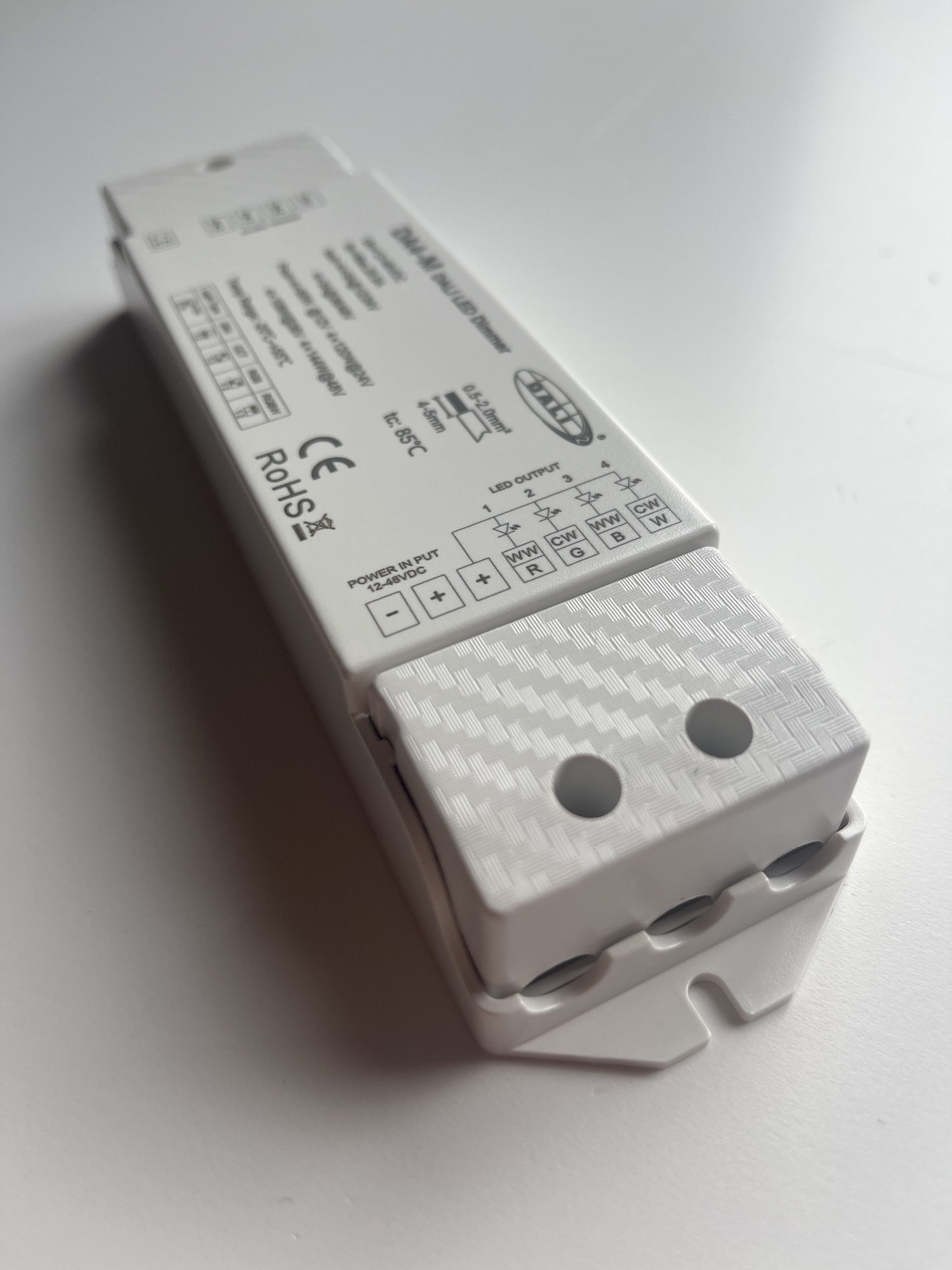

4 Chanel | 4 x 5A | DALI 2 | LED Dimmable Decoder (DT6 & DT8)
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DALI-4 |
| Protocol | DALI |
| Compatible LED | White & Single Colour Colour Changing (RGB/W) Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-4 |
| Input Voltage | 12-48V DC |
| Input Current | 20.5A |
| Output Voltage | 12-48V DC |
| Output Current | 4 x 5A/CH (20A) |
| Output Wattage | 240W -12v / 480W – 24v |
| Signal | DALI |
| Dimming Range | 0 -100% |
| Dimensions | L178 x W50 x H38mm |
| Weight | 0.14kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015:2019+A11:2020 EN 61547:2009 EN IEC 61000-3-2:2019+A11:2021 EN 61000-3-3:2013+A11:2019 |
| Safety standard(LVD) | EN 61347-1:2015+A1:2021 EN 61347-2-13:2014+A1:2017 |
| Certification | CE,EMC |
| Compatible Products | RC-DALI-BUS |
4 Channel DALI-2 LED Dimmable Decoder | DT6 & DT8 | 4x5A
This 4 Channel DALI-2 LED Dimmable Decoder is designed for professional-grade lighting systems, supporting single colour, tunable white (CCT), and RGB/W colour-changing LEDs. Offering compatibility with both DT6 and DT8 protocols, it provides flexibility for a wide range of installations.
With 4 outputs at 5A each (20A total), it supports up to 240W at 12V or 480W at 24V, ensuring reliable power delivery for larger projects. The decoder works with input and output voltages from 12–48V DC, delivering smooth, flicker-free dimming from 0–100%.
Compact at 178mm x 50mm x 38mm and weighing just 0.14kg, it is simple to install in commercial or residential setups. Certified to CE and EMC standards, it ensures compliance, safety, and reliable performance.
Backed by a 5-year warranty, this DALI-2 decoder is a robust, versatile, and precise solution for modern lighting control across single colour, CCT, and RGB/W applications.
