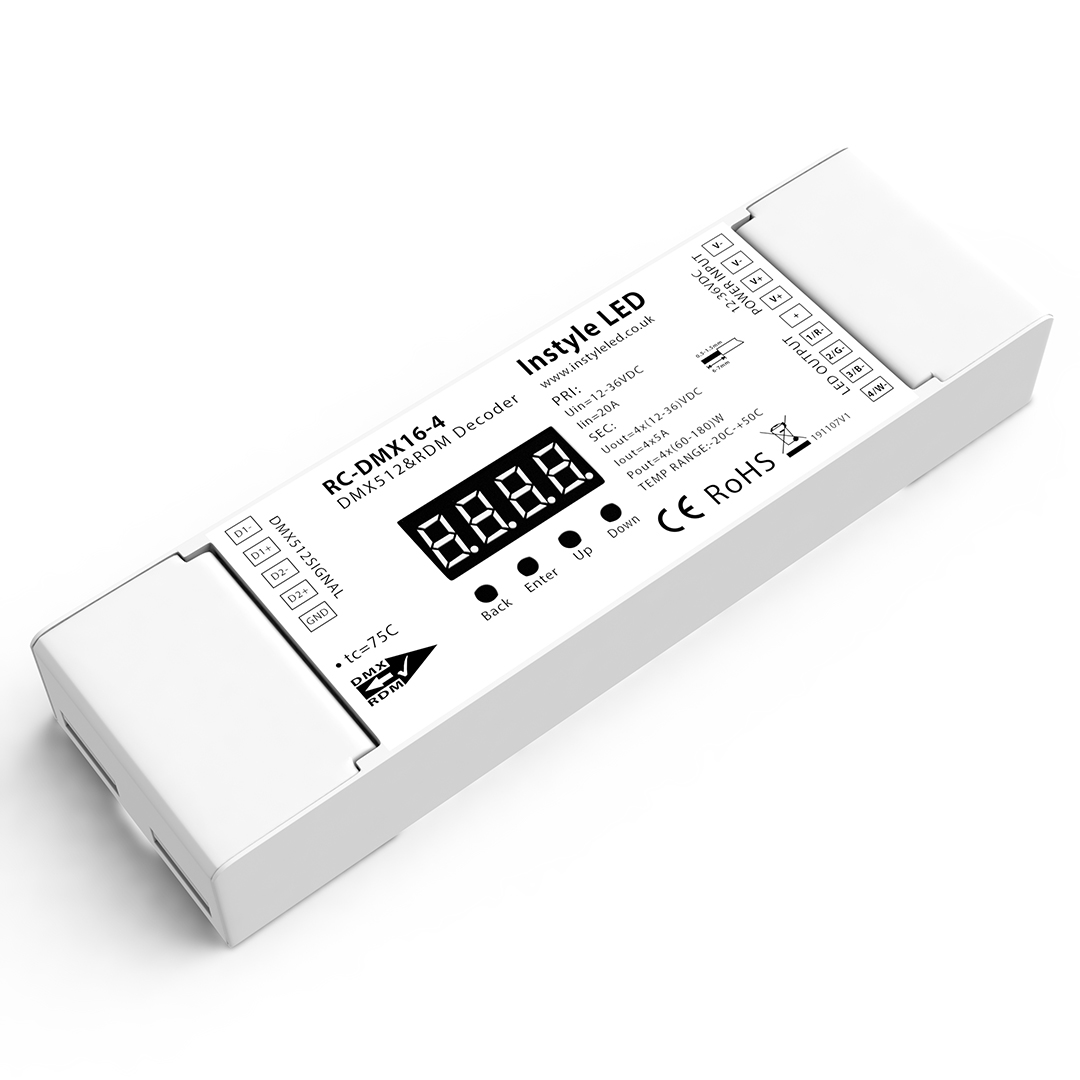

4 Channel | 4 x 5A | DMX 512 | LED Decoder (16-Bit)
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX16-4 |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-4 |
| Input Voltage | 12-36V DC |
| Input Current | 20A |
| Output Voltage | 12-36V DC |
| Output Current | 4 x 5A/CH |
| Output Wattage | 240W -12v / 480W – 24v |
| Signal | DMX512 |
| Dimming Range | 0 -100% |

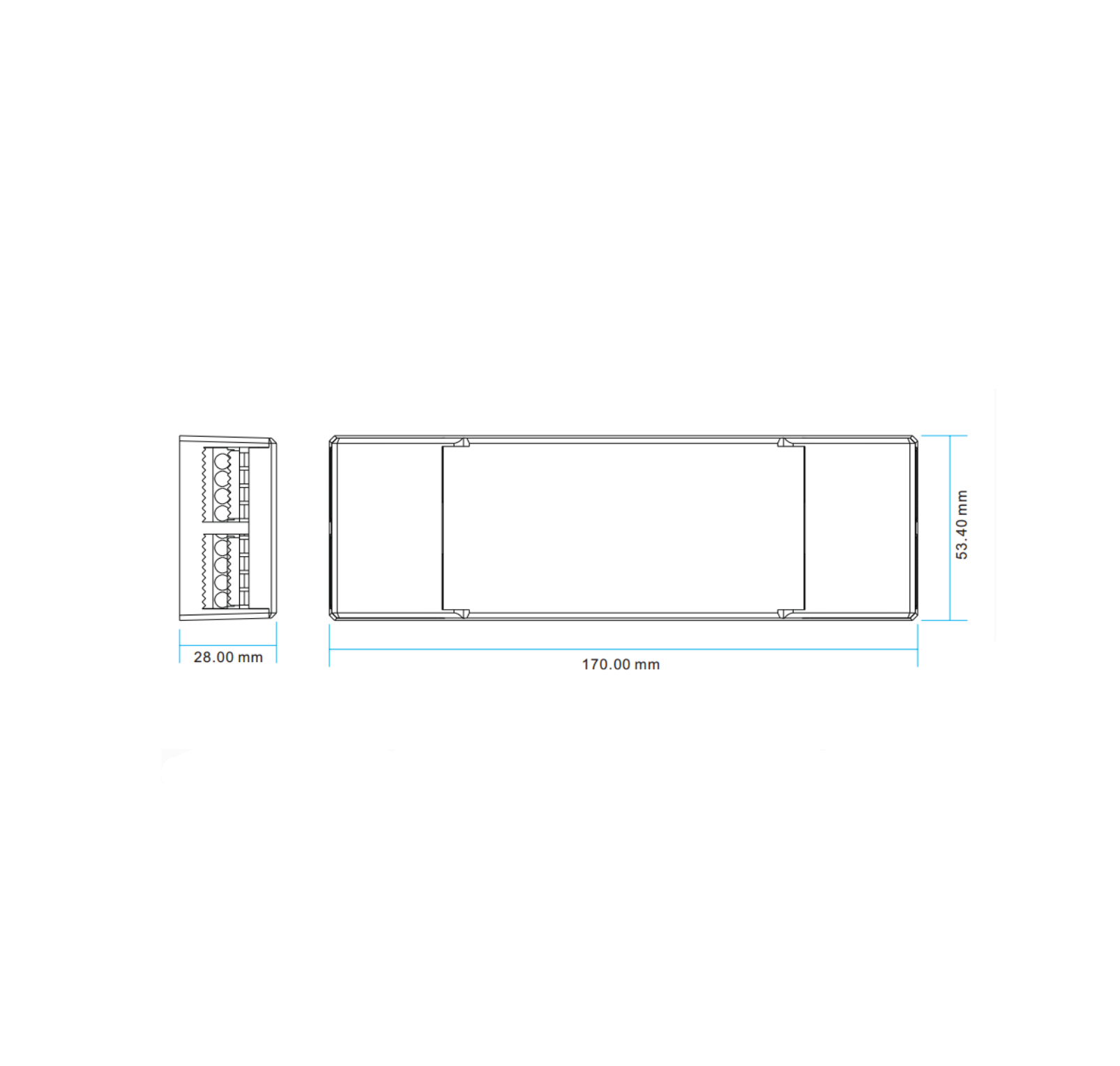

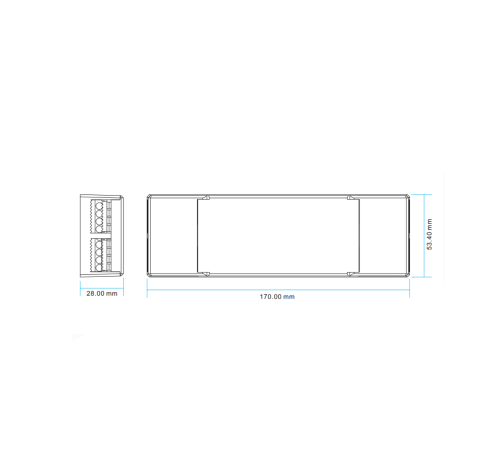

| Dimensions | L170 x W53 x H28mm |
| Weight | 0.172kg |
| Warranty | 5 Years |
| Certification | CE, RoHs |
| Compatible Products |
The RC-DMX-16-4 is a professional-grade controller designed for advanced LED lighting systems. Supporting both DMX decoder and standalone master modes, it delivers precise and flexible control for a wide range of lighting projects.
Key Features:
4 Channel DMX/RDM Decoder – Supports RGB, RGBW, and tunable white LED strips
Dual Functionality – Operates as DMX decoder or standalone master controller
High Power Output – Up to 5A per channel (60–180W @ 12–36V DC)
Precision Dimming – 8-bit/16-bit resolution with adjustable gamma curves (0.1–9.9)
Flicker-Free Performance – PWM frequency adjustable from 500Hz to 30kHz
Built-In Programs – 31 pre-set effects including fades, jumps, strobes, and static colors
RDM Support – Remote Device Management for easy setup and monitoring
User-Friendly Interface – Digital display with Back/Enter/Up/Down navigation keys
Compact & Reliable – Slim 170×53.4×28mm design with IP20 protection
Applications
Stage & Event Lighting – Smooth dimming and dynamic effects for live shows.
Commercial Spaces – Control RGB, RGBW, or tunable white lighting in offices, hotels, and shops.
Architectural Lighting – Highlight building features with precision-controlled LEDs.
High-End Residential Projects – Perfect for custom home lighting automation.
