4 Channel | 4 x 5A | RF | RGB/W | LED Receiver
Commercial Grade LED Receiver
Full Specification
| Product Code | RC-RF-RGB-5 |
| Protocol | RF |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 12-36V DC |
| Input Current | 20.5A |
| Output Voltage | 12-36V DC |
| Output Current | 4 x 5A/CH (20A) |
| Output Wattage | 240W -12v / 480W – 24v |
| Signal | RF 2.4GHz |
| Control Distance | 20m (RF) |
| Dimming Range | 0 -100% |

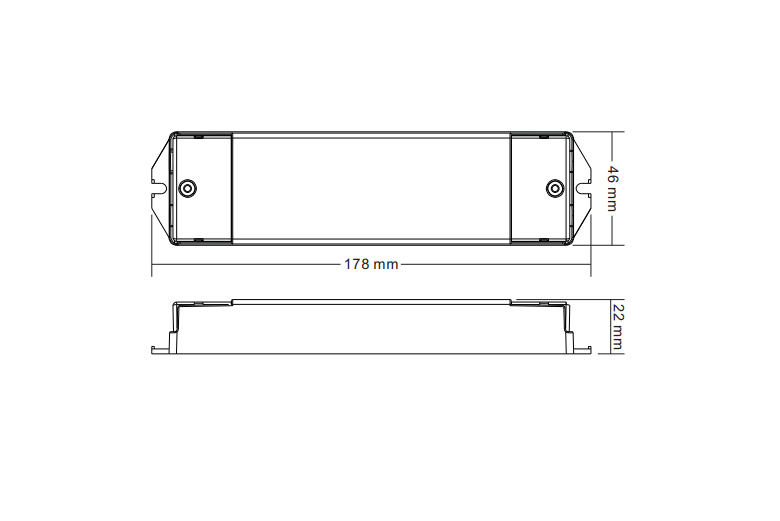

| Dimensions | L178 x W46 x H22mm |
| Weight | 0.072kg |
| Warranty | 5 Years |
| Certification | CE. RoHS. FCC |
4-Channel LED Receiver (5 Amp)
INSTYLE’s 5-amp multichannel RF receiver offers four LED-control channels, so it’s ideal for our colour-changing LED tape range (RGB and RGBW). Suitable for use with either 12v or 24v LEDs, the receiver outputs 4 x 5 amps (up to 120W per channel) – if your project needs more, then please check out our sister product 8-amp multichannel LED receiver.
You can set multiple receiver units to a single zone, or they can be set independently to different controller zones – up to a range of 20m. Simply press the receiver’s button to synchronise with your controller.
Our multizone receiver works with RGB and RGBW LED tape, and offers the option of wifi connection as well. Using wifi, you don’t even need a controller – you can control your LED lighting through an app on your phone or tablet.
- Commercial Grade Multichannel Receiver
- Ideal for internal use
- 4 channels – 60W each (12V), 120W each (24V)
