4 Zone | Wireless | CCT | Wall Plate (Battery)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-WALL-4-CCT-BAT |
| Protocol | RF |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC(CR2032) |
| Input Current | <8mA |
| Output Signal | RF / 2.4GHz |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

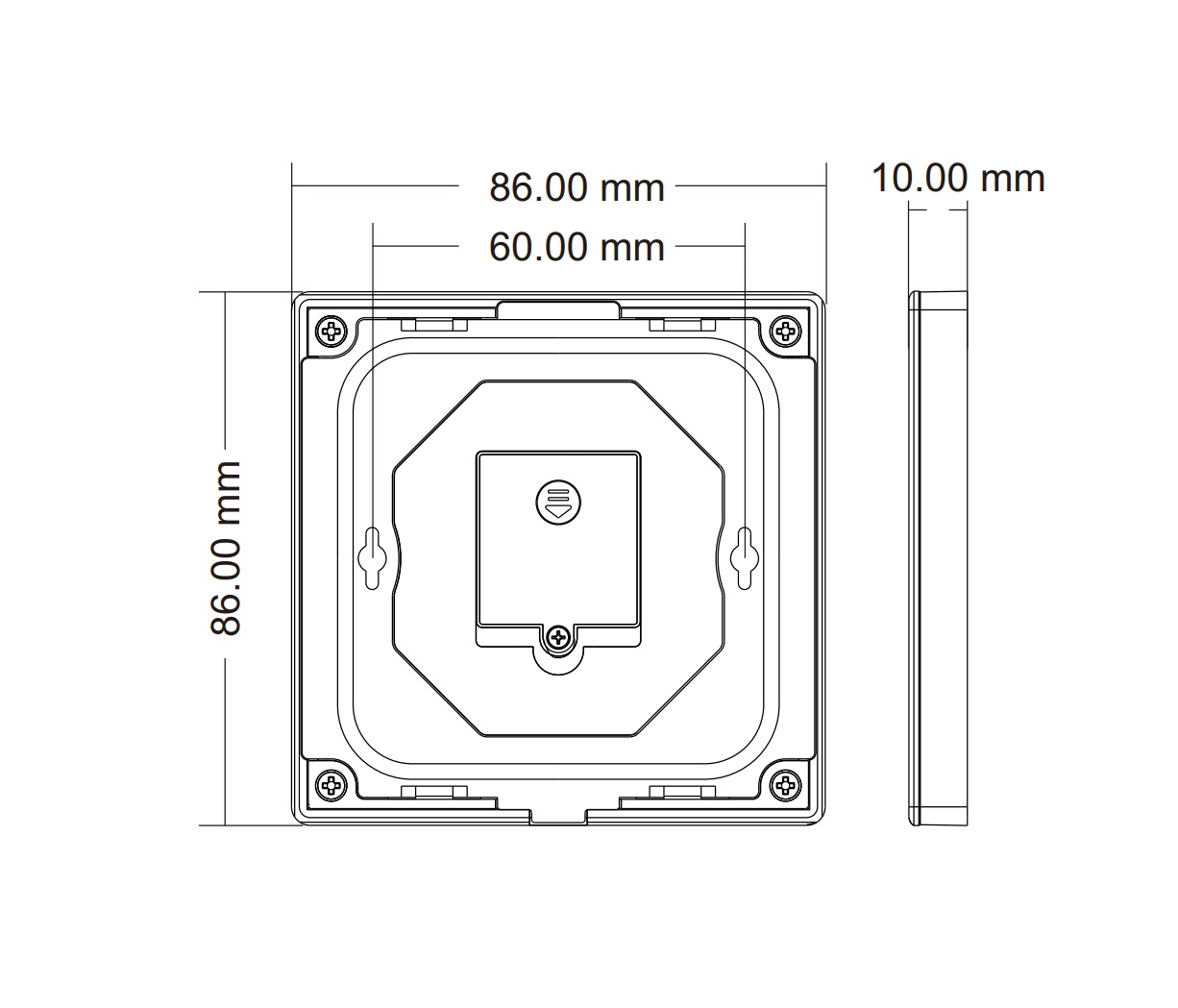

| Dimensions | L86 x W868 x H10mm |
| Weight | 0.137kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN 61347-1/-2 EN 62493 |
| Safety standard(LVD) | EN IEC 55015 EN IEC 61547 ETSI EN 301 489-1/-3 |
| Radio Equipment(RED) | ETSI EN 300 440 |
| Certification | CE RoHS FCC |
| Compatible Products |

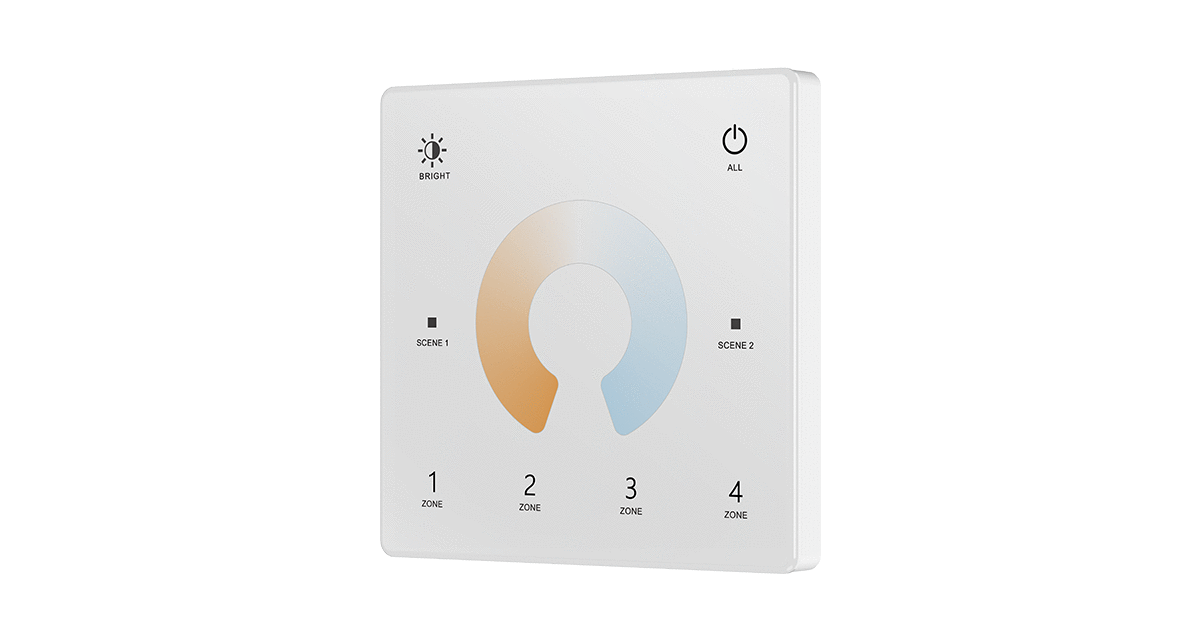

4 Zone Wireless CCT LED Wall Plate (Battery Powered)
This 4 Zone Wireless Wall Plate offers professional control of tunable white (CCT) LED lighting, allowing you to adjust both brightness and colour temperature with ease. Designed for flexibility, it operates via RF 2.4GHz technology with a control distance of up to 30m, giving reliable wireless performance in residential and commercial projects.

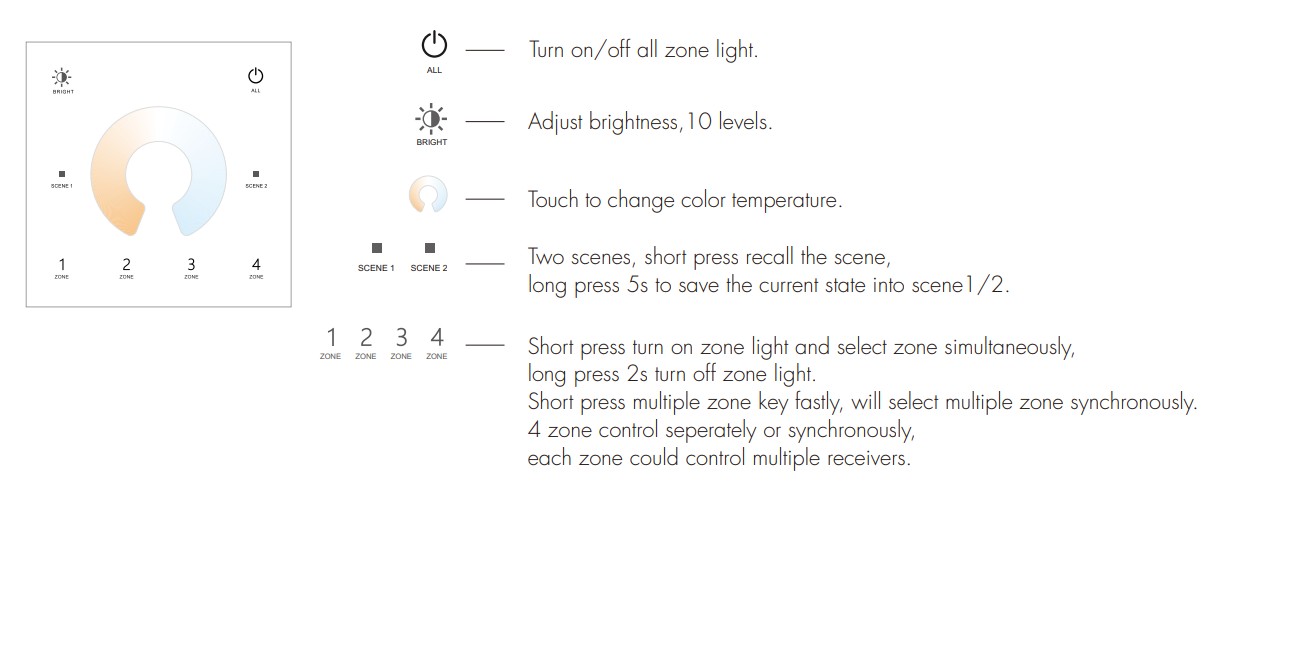

With four independent zones, you can manage multiple areas from a single, sleek wall-mounted unit. The 0–100% dimming range ensures smooth brightness adjustment, while CCT control lets you shift from warm to cool whites to suit different moods and environments.

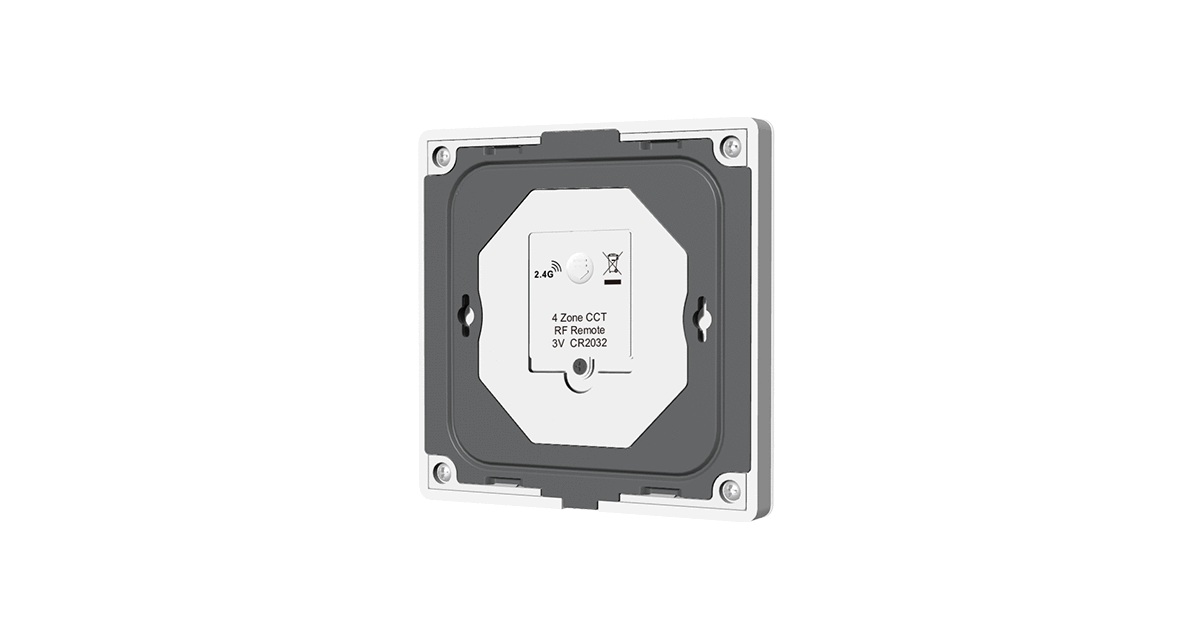

Battery powered by a CR2032 cell, installation is quick and cable-free, making it perfect for retrofits or projects where wiring is limited. At just 86mm x 86mm x 10mm and 0.137kg, it’s compact, discreet, and stylish.
Certified to CE, RoHS, and FCC standards and backed by a 5-year warranty, this controller is a reliable, modern solution for wireless CCT LED lighting control.
