4 Zone | Wireless | DMX | CCT | Wall Plate Controller (Black)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-CCT-4-B |
| Protocol | RF & DMX |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Input Current | 0.1A |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products | RC-WIFI-RGB-5 RC-WIFI-RW-1 RC-DMX-8 |

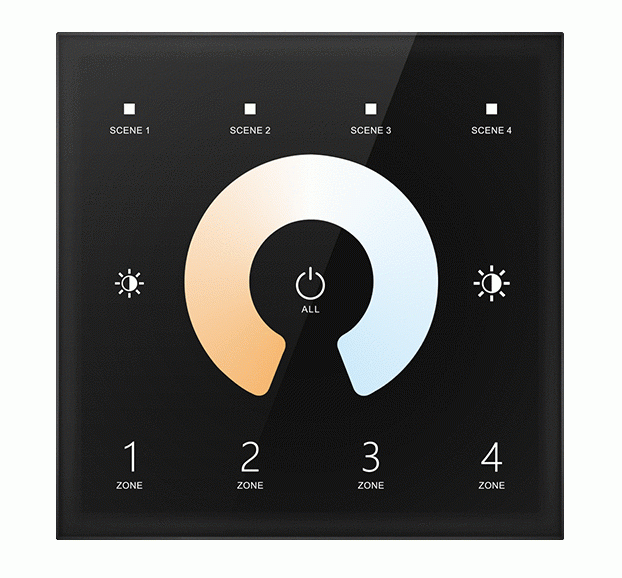

This advanced controller masterfully orchestrates up to four zones of CCT LED strips, enabling the expansion of lighting systems through the connection of multiple receivers within each zone. Its intuitive ultra-sensitive glass touch panel features a central color slider, zone selection keys on the left, and brightness controls on the right, delivering effortless control and customisation. Seamlessly adjust the color palette with precise accuracy by simply gliding your finger along the color slider. Additionally, the controller retains the last settings in memory, ensuring instantaneous recall upon power-up, fostering efficiency and convenience.
It’s crucial to note that this controller demands a live and neutral power source and adheres to the standard deep back box format.
