4 Zone | Wireless | DMX | CCT | Wall Plate Controller (White)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-CCT-4-W |
| Protocol | RF & DMX |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Input Current | 0.1A |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |

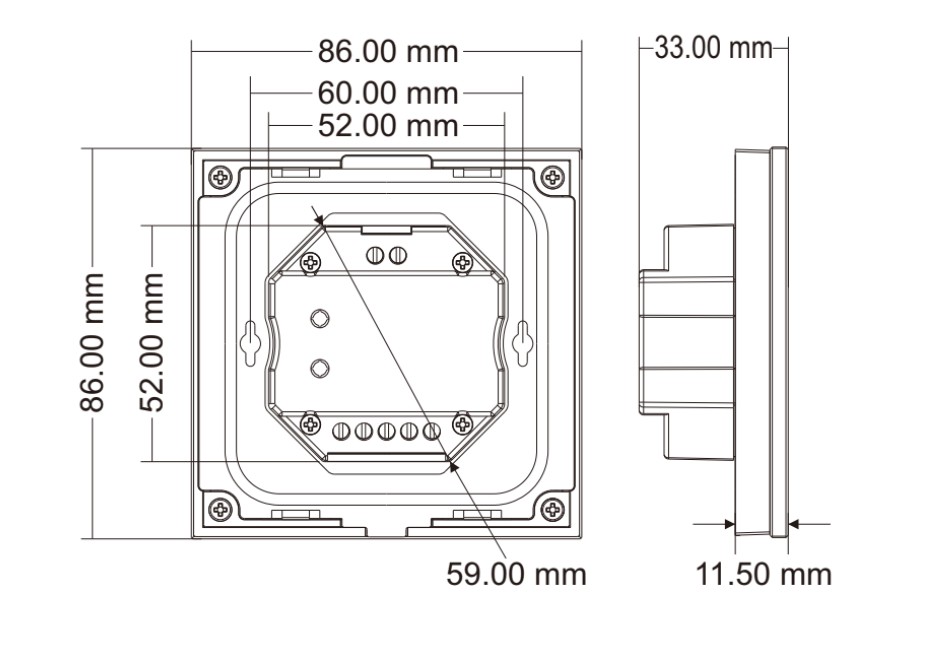

| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products |
This comprehensive controller seamlessly manages up to four zones of CCT LED strip lights, empowering you to create dazzling lighting setups with the receiver. Within each zone, you can effortlessly expand your lighting system by connecting multiple receivers, catering to even the most expansive lighting needs.

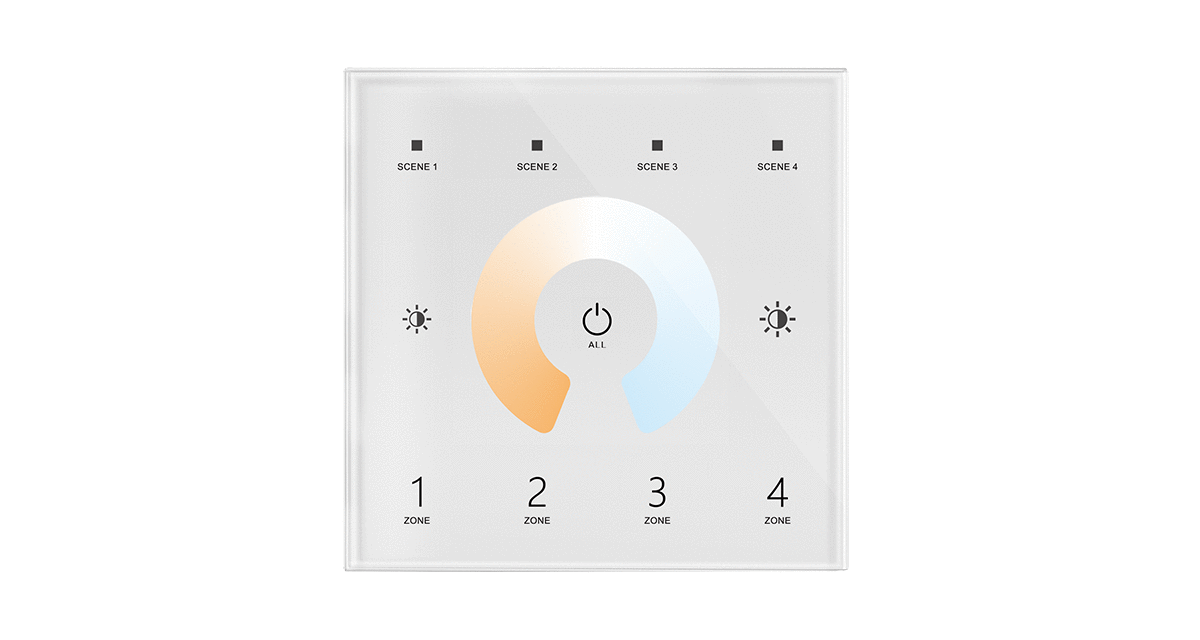

Its intuitive ultra-sensitive high-strength glass touch panel serves as a central hub for effortless control, featuring a color slider at its core, zone selection keys on the left, and brightness controls on the right. Seamlessly glide your finger along the color slider to achieve precise color adjustments, crafting the perfect ambiance for any occasion.
For added convenience, the controller retains the last used settings in memory, allowing you to seamlessly recall your preferred lighting configurations upon each power-up. This feature ensures efficiency and minimises the hassle of re-adjusting lighting settings.
Please note that this controller requires a live and neutral power connection and fits into a standard deep back box for discreet installation.
