4 Zone | Wireless | DMX | RGB/W | Wall Plate Controller (Black)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-RGBW-4-B |
| Protocol | RF & DMX |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | AC |
| Input Current | 0.1A |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products |

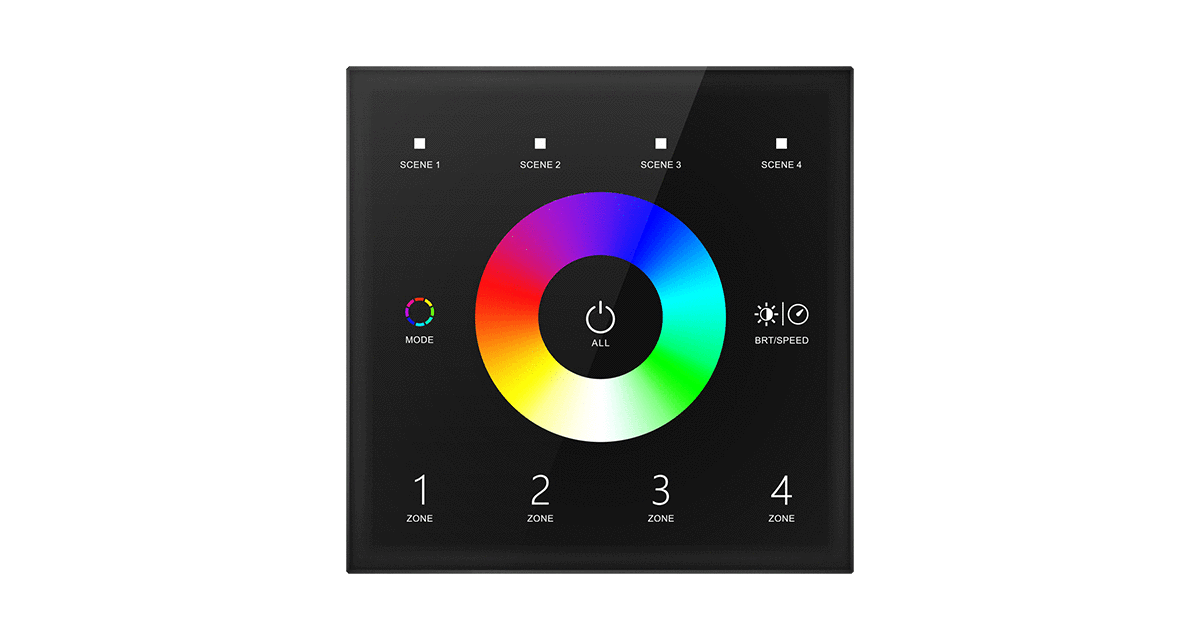

4 Zone Wireless DMX RGB/W Wall Plate Controller | Black
This 4 Zone Wall Plate Controller combines modern design with professional functionality, giving you simple and effective control over RGB/W colour-changing LED lighting. Finished in stylish black, it offers both RF wireless and DMX wired protocols, making it flexible enough for residential and commercial applications.
The controller manages up to 4 independent zones, allowing you to adjust brightness and colours separately across multiple areas. With a smooth 0–100% dimming range and reliable DMX512 or RF 2.4GHz signals, it ensures precise and responsive control.
Wireless RF operation offers a control distance of up to 10m, while DMX connectivity integrates seamlessly into larger lighting setups. Compact and unobtrusive, the unit measures 112mm x 112mm x 50mm and weighs just 0.234kg.
Certified to CE, EMC, and RED standards, this controller delivers peace of mind and reliability. Backed by a 5-year warranty, it’s a durable, commercial-grade solution for versatile LED lighting control.
