4 Zone | Wireless | DMX | RGB/W | Wall Plate Controller (White)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-RGBW-4-W |
| Protocol | RF & DMX |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | AC |
| Input Current | 0.1A |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products |

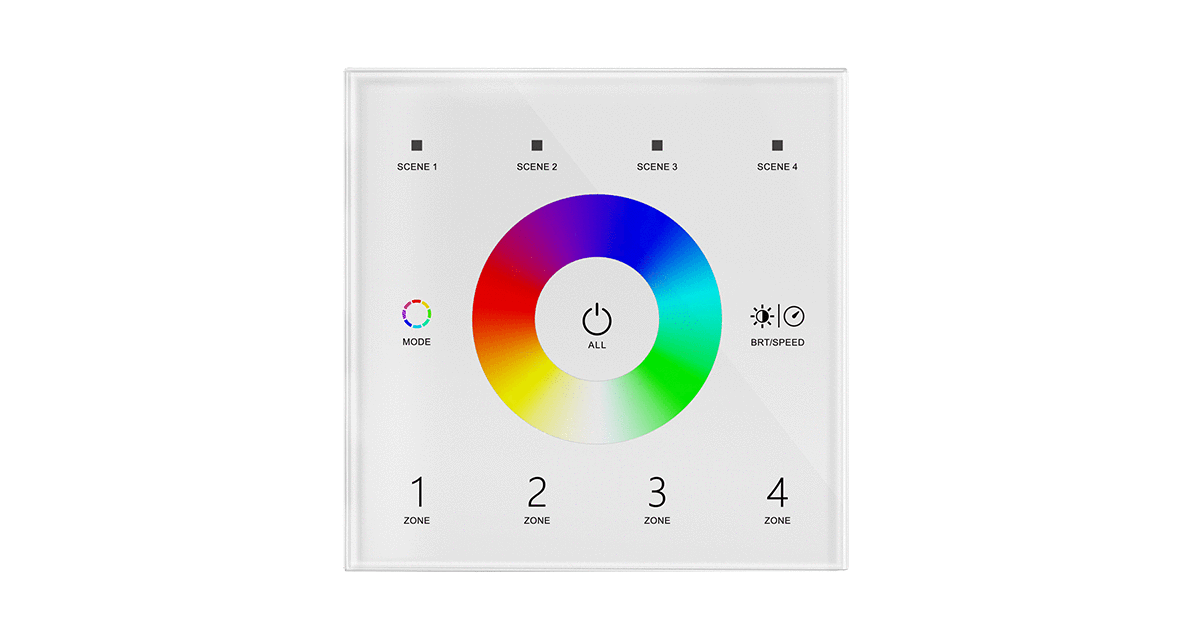

4 Zone Wireless DMX RGB/W Wall Plate Controller | White
This 4 Zone Wall Plate Controller offers simple, reliable control for RGB/W colour-changing LED lighting. Combining RF and DMX protocols, it provides flexibility for both wireless and wired setups, making it suitable for professional and commercial installations.
Designed as a sleek wall-mounted plate in white, it controls up to 4 independent zones, giving you full freedom to adjust colours and brightness across different areas. The dimming range of 0–100% ensures smooth transitions, while DMX512 and RF 2.4GHz output signals deliver precise control.
With a 10m RF control distance, it’s ideal for smaller wireless projects, while DMX compatibility allows seamless integration into larger lighting systems. Measuring 112mm x 112mm x 50mm and weighing 0.234kg, it is compact and discreet.
Certified to CE, EMC, and RED standards, and backed by a 5-year warranty, this controller is a professional-grade solution for modern, versatile LED control.
