4 Zone | Wireless | DMX | Single Colour | Wall Plate Controller (White)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-DIM-4-W |
| Protocol | RF & DMX |
| Compatible LED | White & Single Colour |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Input Current | 0.1A |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products |

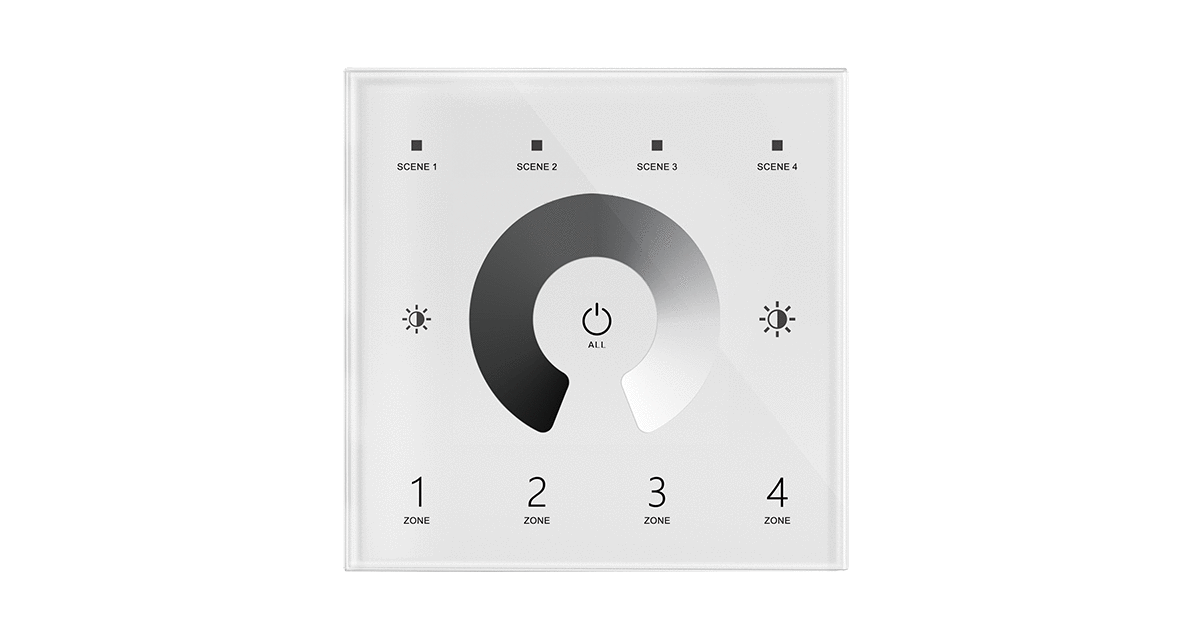

The 4 Zone Wireless DMX Single Colour Wall Plate Controller in white offers effortless control over your LED lighting. Designed with a sleek white-glass finish, this wall-mounted unit features four rocker-style switches, each of which can be assigned to an individual lighting zone. Easily dim lights independently or synchronise zones together for a seamless effect. Simply touch to power on/off, and press up or down to adjust brightness levels. Please note: an LED receiver is required for each zone.
