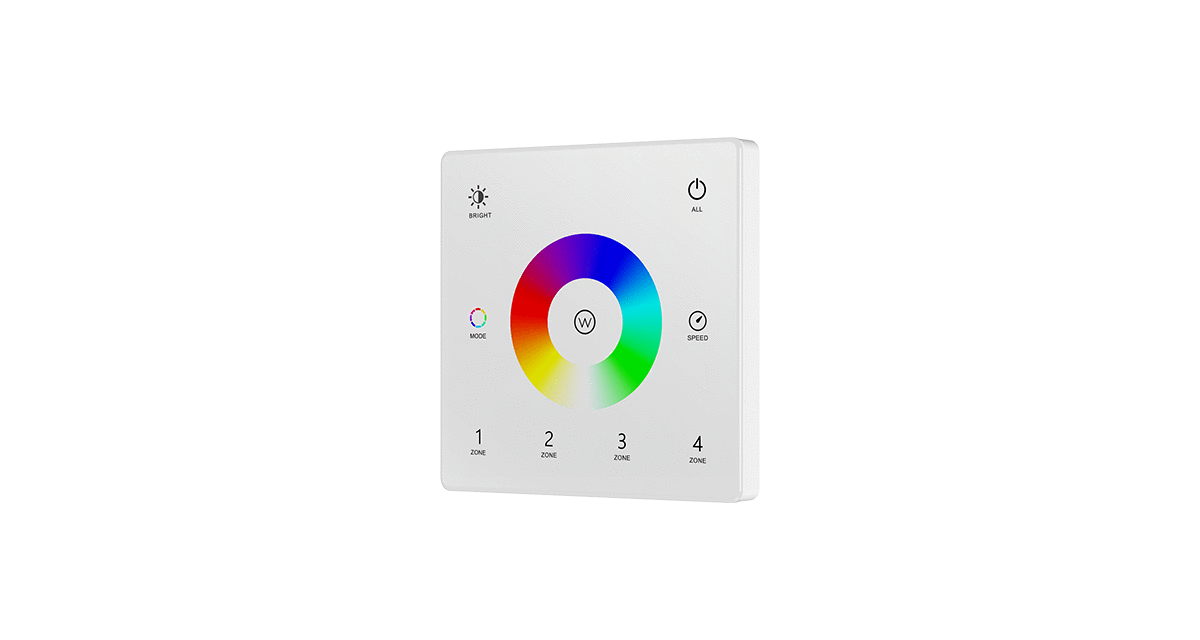

4 Zone | Wireless | RGB/W | Wall Plate (Battery)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-WALL-4-RGBW-BAT |
| Protocol | RF |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC(CR2032) |
| Input Current | <8mA |
| Output Signal | RF / 2.4GHz |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

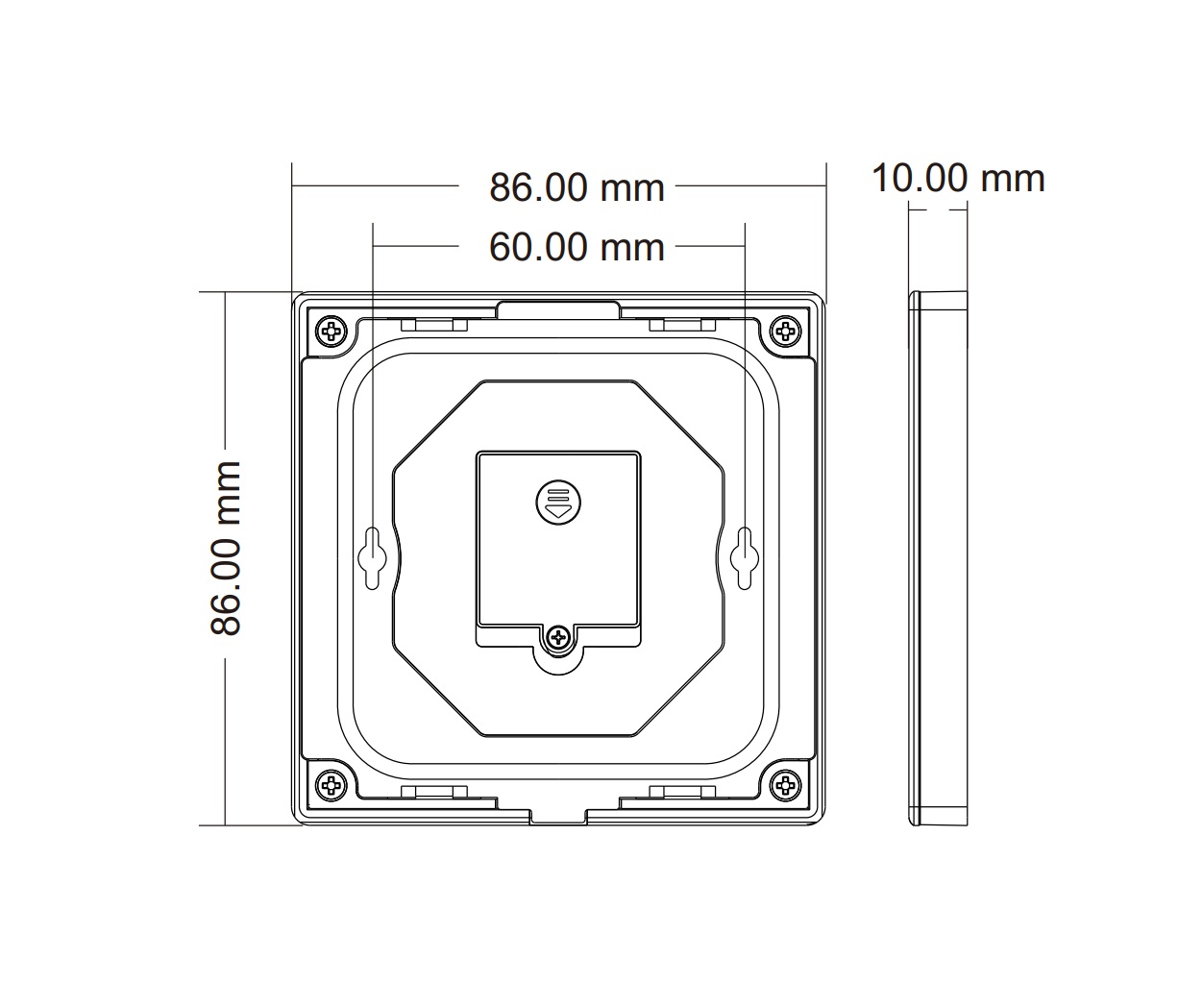

| Dimensions | L86 x W868 x H10mm |
| Weight | 0.137kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN 61347-1/-2 EN 62493 |
| Safety standard(LVD) | EN IEC 55015 EN IEC 61547 ETSI EN 301 489-1/-3 |
| Radio Equipment(RED) | ETSI EN 300 440 |
| Certification | CE RoHS FCC |
| Compatible Products |
4 Zone Wireless RGB/W LED Wall Plate (Battery Powered)
This 4 Zone Wireless Wall Plate gives you complete control over RGB/W colour-changing LED lighting, offering a simple yet professional solution for managing multiple areas. Using RF 2.4GHz technology, it provides a wireless control distance of up to 30m, delivering reliable performance for both residential and commercial projects.

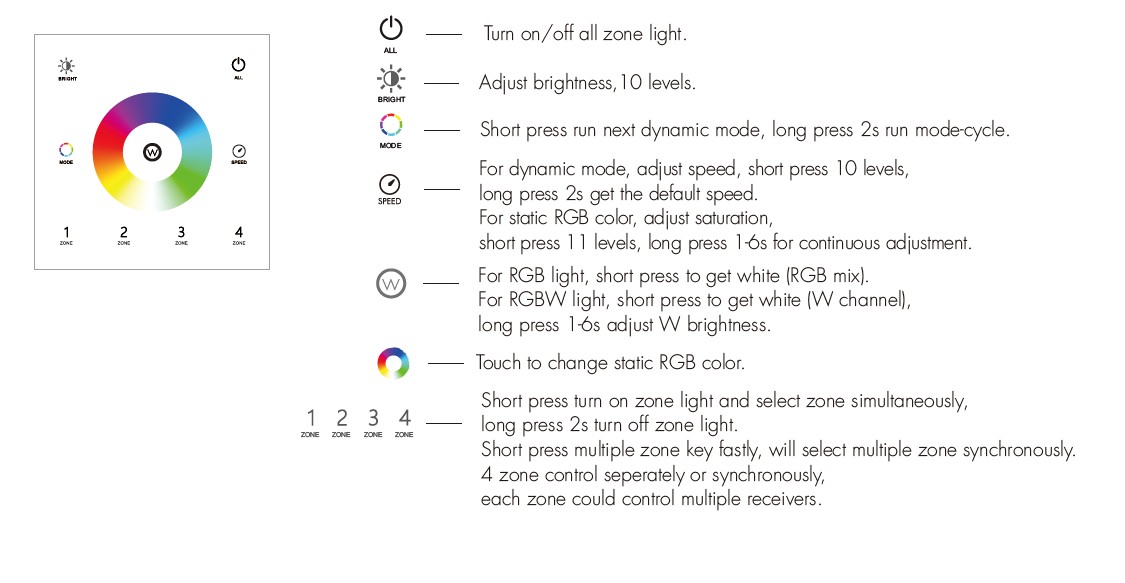

With four independent zones, you can manage separate rooms or lighting areas individually, adjusting colours and brightness to create the perfect atmosphere. The controller offers smooth 0–100% dimming, precise colour control, and the flexibility to set different moods across multiple zones.

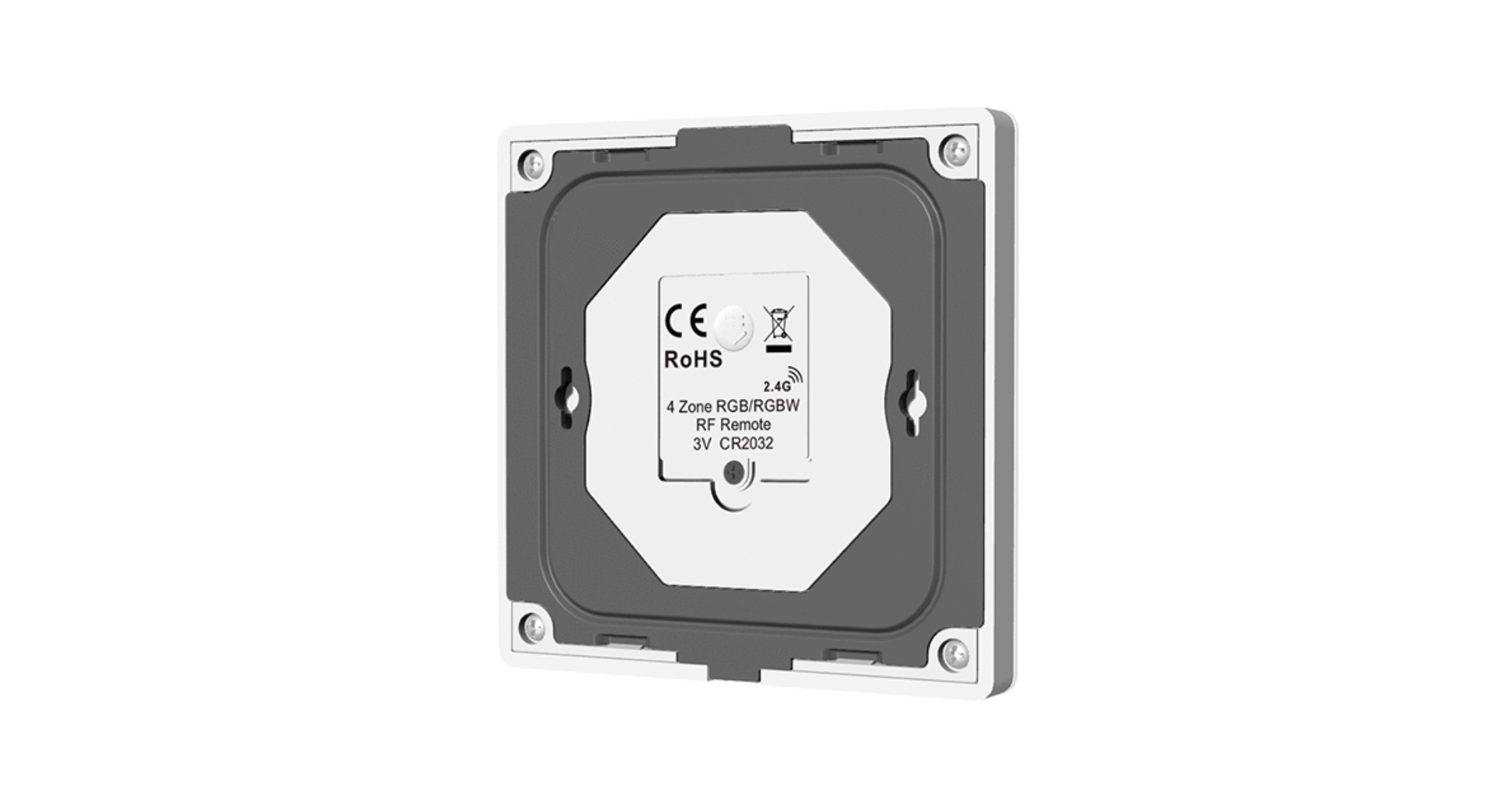

Powered by a CR2032 battery, the wall plate requires no wiring, making installation quick and hassle-free — ideal for retrofits or locations where mains power is limited. At just 86mm x 86mm x 10mm and 0.137kg, it is slim, discreet, and modern in design.
Certified to CE, RoHS, and FCC standards and backed with a 5-year warranty, this controller is a reliable, commercial-grade choice for versatile LED control.
