4 Zone | Zigbee | CCT | Wall Plate Controller (White)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-ZB-CCT-4 |
| Protocol | Zigbee |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Signal | RF / 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |
| Dimensions | L86 x W868 x H29mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| Certification | CE RoHS FCC UL |
| Compatible Products |

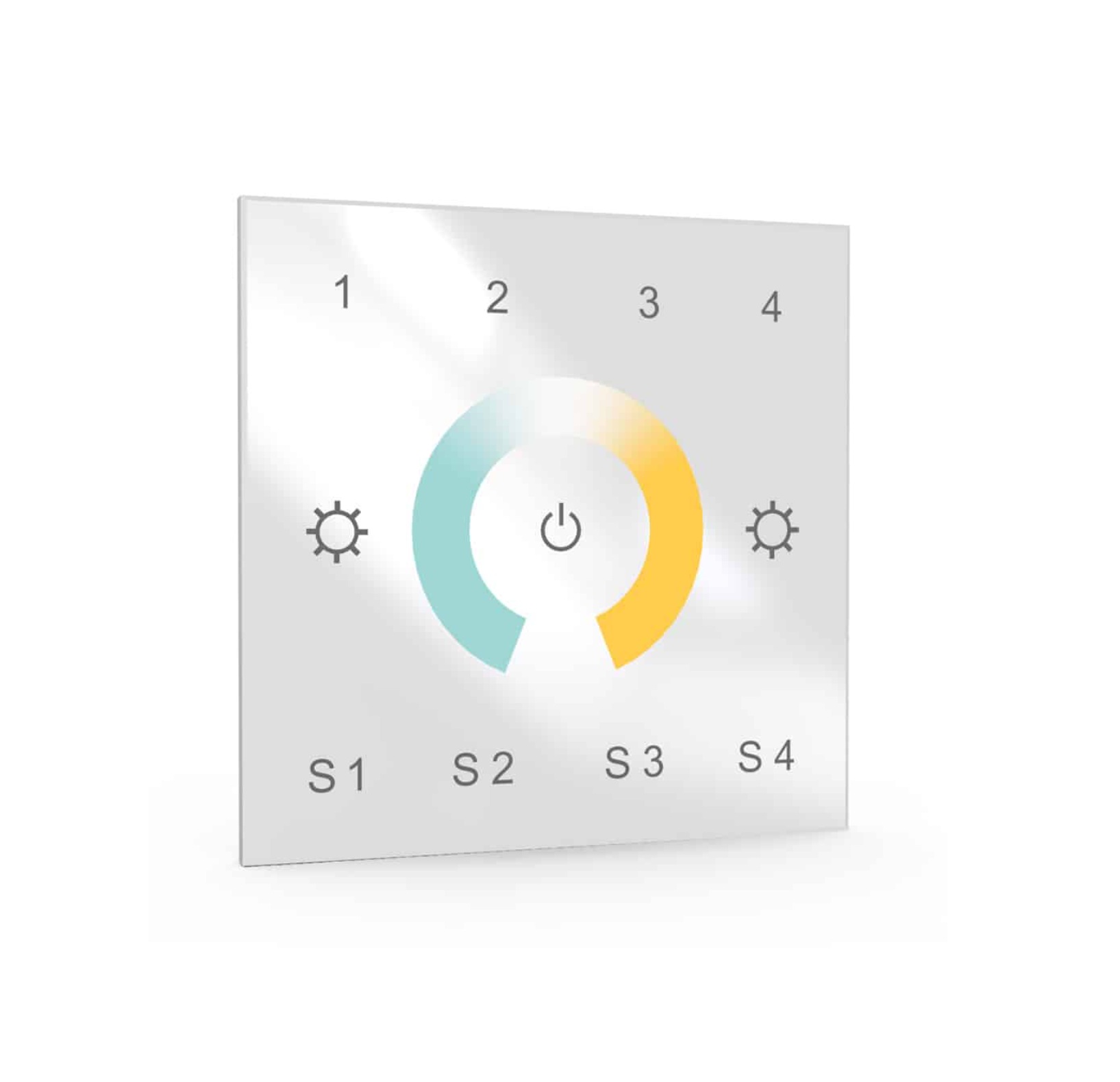

4 Zone Zigbee CCT LED Wall Plate Controller | White
This 4 Zone Zigbee Wall Plate Controller in white gives you precise control of tunable white (CCT) LED lighting, making it an ideal choice for smart residential and commercial installs. Using Zigbee protocol, it integrates seamlessly with compatible smart home systems while offering manual wall plate control for added flexibility.
With four independent zones, you can manage lighting in multiple areas from one stylish controller. The 0–100% dimming range provides smooth brightness adjustment, while CCT control allows you to shift colour temperature from warm to cool white, tailoring the ambience to suit different times of day or activities.
Operating on RF 2.4GHz, it offers a control range of up to 30m for stable and reliable performance. Powered directly via 100–240V AC mains, there’s no need for batteries.
Measuring 86mm x 86mm x 29mm, this compact, sleek unit is CE, RoHS, FCC, and UL certified. Backed with a 5-year warranty, it delivers professional-grade reliability and long-lasting performance.
