4 Zone | Zigbee | RGB/W | Wall Plate Controller (White)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-ZB-WALL-4 |
| Protocol | Zigbee |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Signal | RF / 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

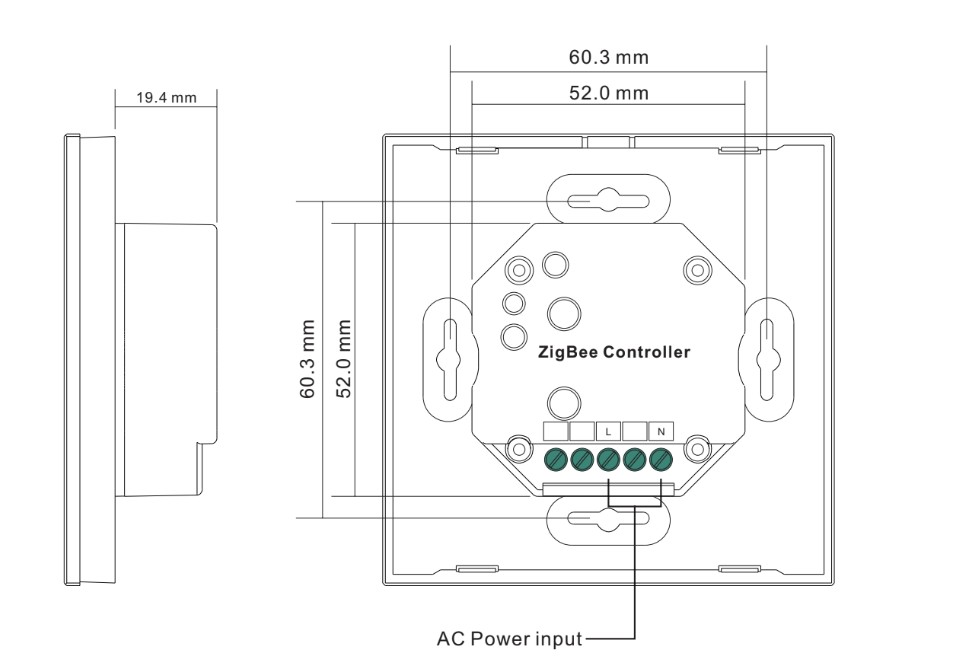

| Dimensions | L86 x W868 x H29mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| Certification | CE RoHS FCC UL |
| Compatible Products |

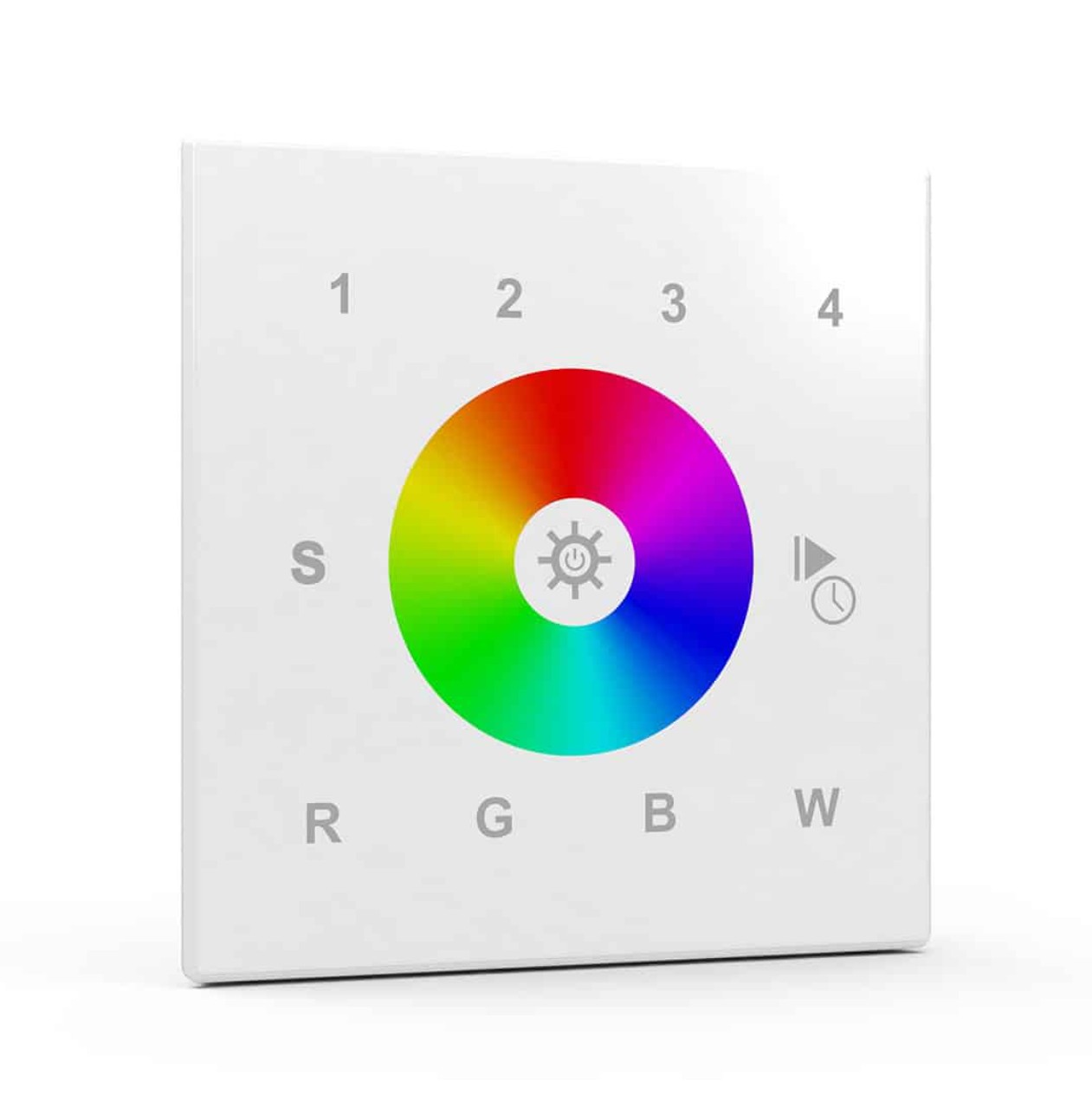

4 Zone Zigbee RGB/W LED Wall Plate Controller | White
This 4 Zone Zigbee Wall Plate Controller in white delivers powerful and flexible control of RGB/W colour-changing LED lighting. Designed for both commercial and residential projects, it supports Zigbee smart home integration while offering reliable manual wall plate control.
With four independent zones, you can manage different rooms or areas individually, adjusting colours and brightness to create the perfect atmosphere. The controller supports smooth 0–100% dimming and full RGB/W colour control, allowing you to set dynamic scenes or subtle moods with ease.
Using RF 2.4GHz, it offers a wireless control distance of up to 30m, ensuring responsive performance. Powered directly by 100–240V AC mains, it removes the need for batteries, making it a durable and long-term solution.
Compact at 86mm x 86mm x 29mm and weighing 0.234kg, it blends discreetly into any space. Certified to CE, RoHS, FCC, and UL standards and backed by a 5-year warranty, it provides professional-grade reliability.
