4 Zone | Zigbee | Single Colour | Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | CT-ZB-DIM-4 |
| Protocol | Zigbee |
| Compatible LED | White & Single Colour |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Signal | RF / 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |
| Dimensions | L86 x W868 x H29mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| Certification | CE RoHS FCC UL |
| Compatible Products |

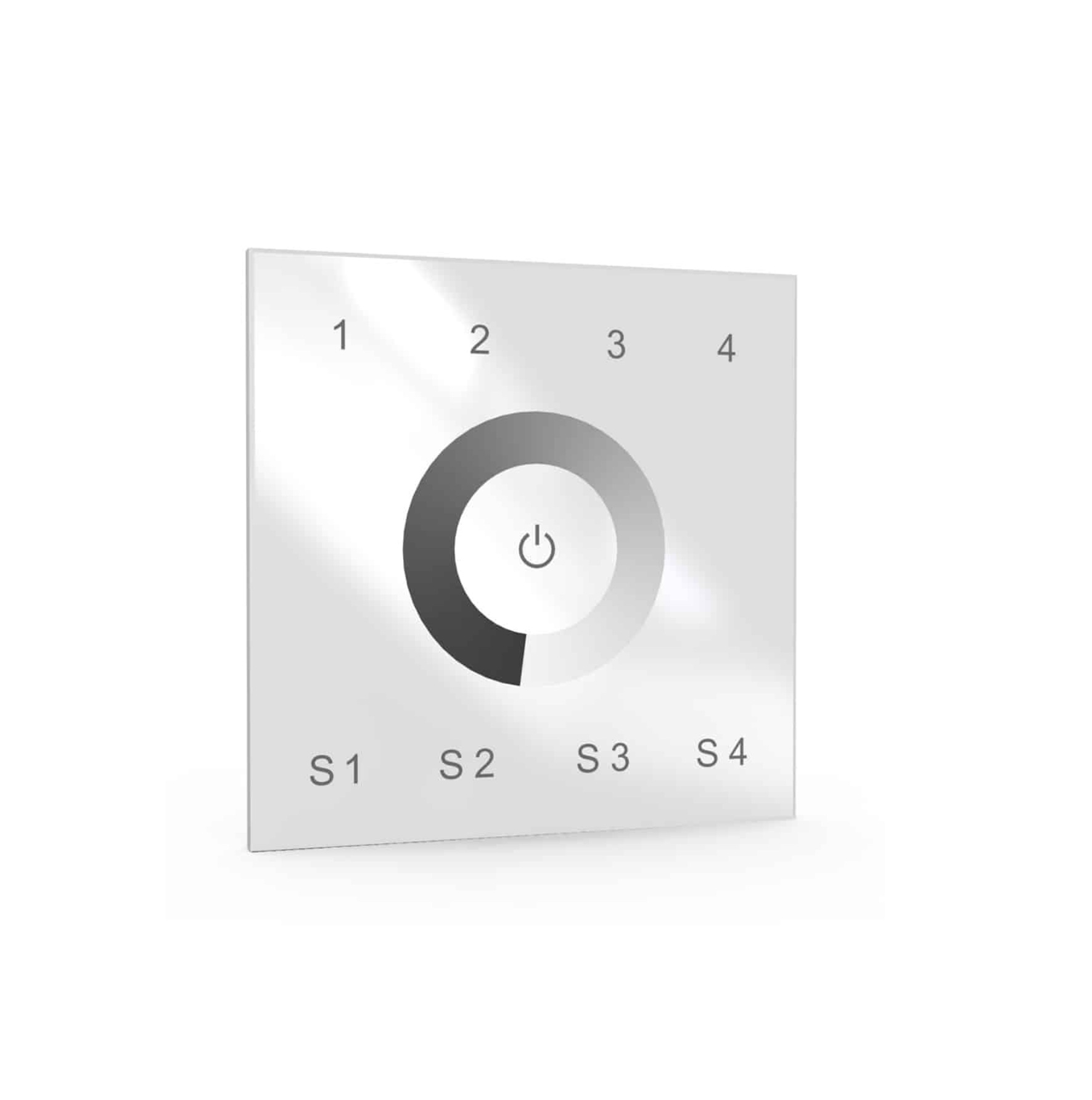

4 Zone Zigbee Single Colour LED Wall Plate Controller
This 4 Zone Zigbee Wall Plate Controller provides smart, reliable control for single colour LED lighting, making it a professional-grade solution for both residential and commercial use. With Zigbee protocol integration, it connects seamlessly with compatible smart home systems, offering advanced functionality alongside simple manual control.
Designed to control up to four independent zones, it gives you the flexibility to manage multiple rooms or areas individually. The 0–100% dimming range allows smooth brightness adjustment, helping you create the perfect lighting levels for any environment.
Operating on RF 2.4GHz, the wall plate delivers a control distance of up to 30m, ensuring strong and stable performance. Powered directly by 100–240V AC mains, it removes the need for batteries, making it a dependable long-term option.

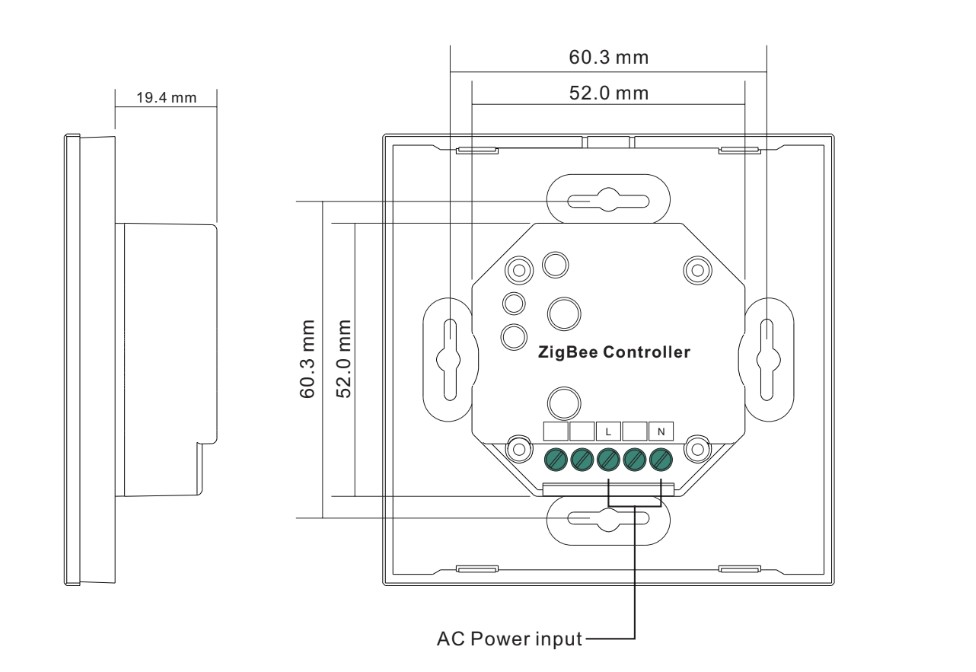

Measuring 86mm x 86mm x 29mm and weighing 0.234kg, it is compact, stylish, and discreet. Certified to CE, RoHS, FCC, and UL standards, and backed by a 5-year warranty, it’s built for durability and peace of mind.
