40W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-040-24 |
| Wattage | 40W |
| Voltage (DC) | 24v |
| Current (DC) | 1.65A |
| Length | 185mm |
| Width | 42.5mm |
| Depth | 28.5mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 0.27A @ 230V |
| Inrush Current | 28A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 151g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
40W DALI Dimmable LED Driver – 24V, IP20 Rated
The 40W DALI dimmable LED driver is a professional solution for powering and controlling medium-sized LED installations. Delivering a constant 24V DC output at up to 1.65A, it provides stable, flicker-free performance that ensures reliability in both commercial and residential projects.

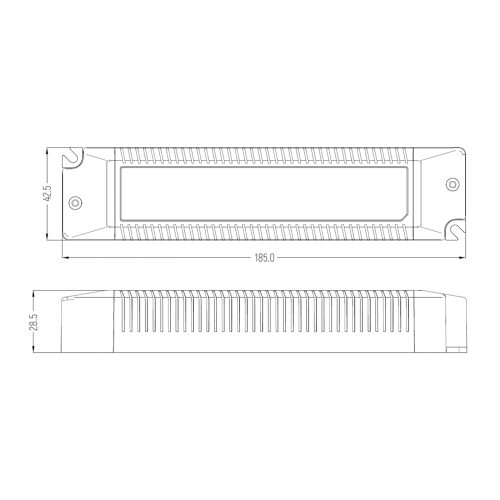

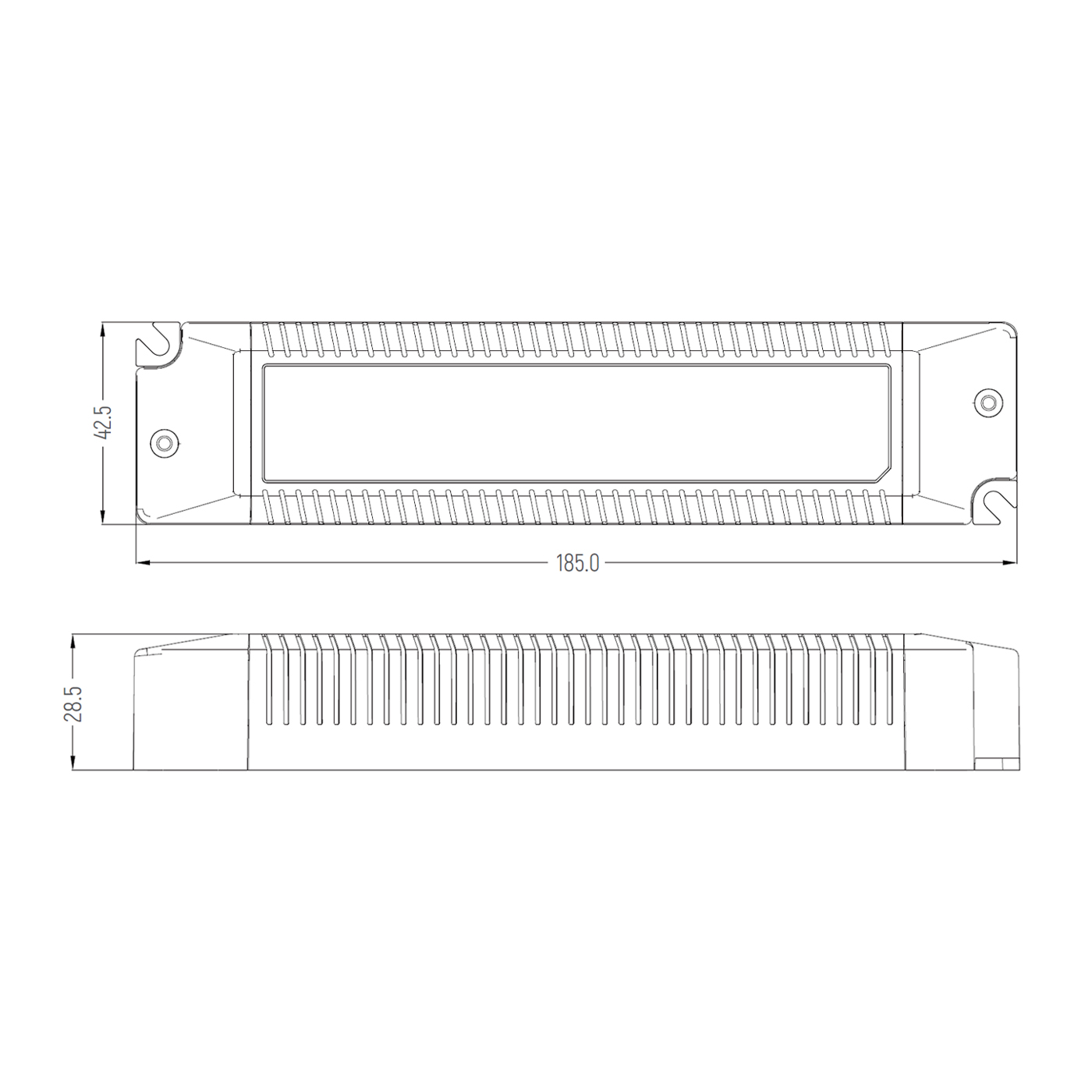

Supporting DALI and 1–10V/0–10V dimming protocols, this driver integrates easily with modern lighting control systems, giving precise and flexible dimming options. Its compact design (185mm x 42.5mm x 28.5mm) and light weight of just 151g make it easy to fit into discreet locations without compromising durability.
With an IP20 rating, it is suited for indoor use, making it ideal for retail, office, hospitality, and domestic environments where controlled lighting is key. Capable of operating in temperatures from -20°C to +50°C, the unit performs reliably across varied conditions.
The driver offers efficient operation with 220–240V AC input, a power factor above 0.95, and a low input current of 0.27A at 230V. A 28A inrush current capacity adds resilience at start-up, protecting connected LED systems from electrical surges.
Covered by a 5-year warranty, the 40W DALI dimmable LED driver is a dependable choice for projects requiring efficient, controllable, and long-lasting LED lighting power.
