5 Channel | 12A | WiFi & RF | Single colour | CCT | RGB/W | SPI | Pixel | LED Controller (BalanX App, Alexa, Google Home)
Commercial Grade LED Receiver
Full Specification
| Product Code | PIXEL-CONTROL |
| Protocol | Pixel (SPI) |
| Compatible LED | White & Single Colour Colour Changing (RGB/W) Tunable White (CCT) |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 5-24V DC |
| Input Current | 12A |
| Output Voltage | 5/24V DC |
| Output Current | 12A |
| Output Wattage | 60W – 5v / 288W – 24v |
| Signal | SPI (Pixel) |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

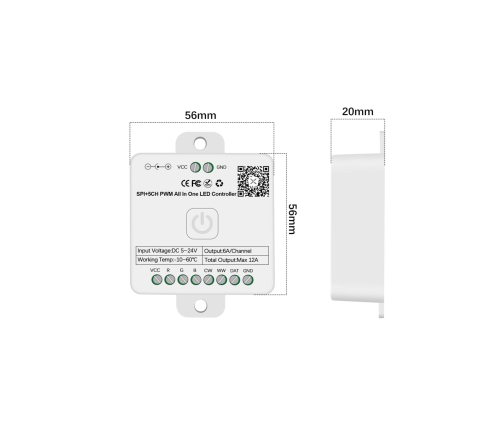

| Dimensions | L78mm x W56mm X D20mm |
| Weight | 0.042kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC |
| Compatible Products | PIXEL-RM-CCT / PIXEL-RM-DIM PIXEL-RM-RGBW / PIXEL-WALL-CCT PIXEL-WALL-DIM / PIXEL-WALL-RGBW |
5 Channel, 12A, WiFi & RF, Single colour – CCT – RGB/W, Pixel (SPI) LED Controller (BalanX App, Alexa, Google Home)
The PIXEL-CONTROL is a versatile addressable (SPI) and PWM LED controller that supports both digital IC pixel strips and constant voltage single-colour, CCT, RGB, RGBW, and RGBCCT LED strips. With 5× PWM channels (max 6A/channel, 12A total) and wide compatibility with popular SPI ICs (WS2811, WS2812B, SK6812, TM1914, UCS series, GS8208, etc.), it provides unmatched flexibility for LED lighting control.
Users can operate the PIXEL-CONTROL via 2.4GHz RF remote (up to 30m range) or through the BanlanX mobile app (iOS & Android), offering brightness adjustment, colour selection, dynamic effects, music sync, and timer scheduling. Designed for professional projects, it combines one-to-many control, 4-zone grouping, and up to 600 pixels capacity in a compact and powerful device.
Key Features
Hybrid Control – Supports SPI digital IC strips + 1CH–5CH PWM LED strips
High Output – Max 6A per channel, 12A total @ DC5–24V input
Wide IC Compatibility – WS2811, WS2812B, SK6812, TM1914, UCS1903/2903, GS8208, and more
Multi-Zone Support – Control up to 4 zones independently or together
App + Remote Control – BanlanX app (iOS/Android) + 2.4GHz RF remote (30m range)
Dynamic Functions – 32 built-in effects, music sync, and up to 5 timers
User-Friendly Setup – Touch-sensitive remote, easy pairing/unpairing
Compact Design – 78×56×20mm, IP30 rated
Reliable Performance – CE, RoHS compliant, low power standby
Applications
Smart Homes – Flexible control of both pixel and PWM LED strips.
Commercial Lighting – Offices, hotels, and retail stores with multi-zone control.
Stage & Entertainment – Dynamic pixel effects and music-synced lighting.
Events & Exhibitions – Wireless, multi-zone, and app-based lighting setups.
Architectural Projects – Hybrid installations combining digital and constant voltage strips.
