5 Channel | 5 x 6A | WiFi & RF | RGB/W | CCT | Single Colour | APP | LED Receiver
Commercial Grade LED Receiver
Full Specification
| Product Code | RC-WIFI-RGB-5 |
| Protocol | RF / WIFI (APP) |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 12-24V DC |
| Input Current | 30A |
| Output Voltage | 12-24V DC |
| Output Current | 5 x 6A/CH (30A) |
| Output Wattage | 240W -12v / 576W – 24v |
| Signal | WiFi + RF 2.4GHz + Push-DIM |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

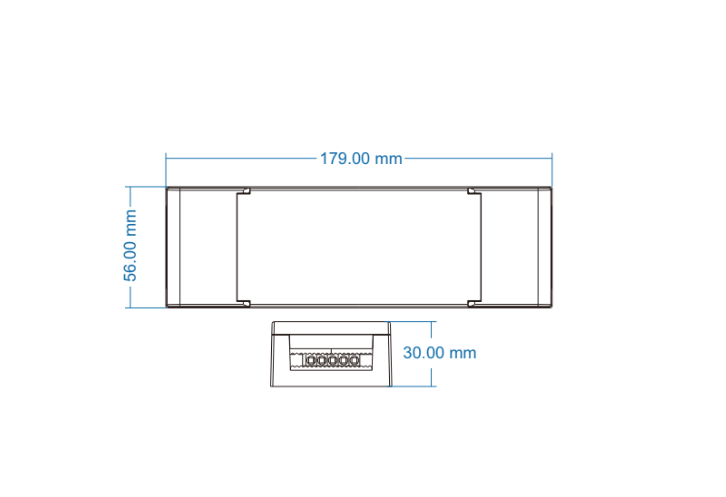

| Dimensions | L185 x W58 x H36mm |
| Weight | 0.193kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015 / EN IEC 61547 ETSI EN 301 489-1/-3/-17 |
| Safety standard(LVD) | EN 61347-1/-2 |
| Radio Equipment(RED) | ETSI EN 300 440 ETSI EN 300 328 |
| Certification | CE, RoHs |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W / CT-DIM-4-B / CT-DIM-4-W / CT-RGBW-4-W / CT-RGBW-4-B CT-WALL-1-DIM-BAT / CT-WALL-4-CCT-BAT / CT-WALL-4-DIM-BAT / CT-WALL-4-RGBW-BAT RM-CCT-1 / RM-CCT-8 / RM-DIM-1 / RM-DIM-8 / RM-RGBW-1 / RM-RGBW-8 |
WiFi & RF 5 in 1 LED Controller
Introducing the Smart 5-in-1 Wi-Fi and 2.4GHz Wireless LED Controller, a versatile lighting control solution designed for commercial and larger scale installs.
This controller can handle a wide range of LED strip lights, including single color, CCT tuneable, RGB, RGBW, and RGB+CCT tuneable LED lights, with input voltages ranging from DC12-48V and up to 6A per channel. This makes it a robust controller that can be seamlessly integrated into various large commercial LED lighting setups.
Applications include offices, retail and hospitality settings, as well as larger high-end residential projects.
The controller can be controlled using the Tuya smart app, which allows precise adjustments for color settings, brightness levels, delays, timers, scene configurations, and even music synchronization. It can also be voice-controlled when integrated with Amazon Echo. For added convenience, it can be paired with an optional RF 2.4GHz remote control.
The controller’s versatility ensures seamless compatibility with most modern LED lighting installations. It can also function as a Wi-Fi to RF converter, enabling simultaneous control of multiple RF LED controllers through the Tuya app.
When in single color mode, choose from selectable PWM frequencies of 500Hz, 2000Hz, 8000Hz, or 16000Hz to fine-tune your lighting experience. Additionally, you can adjust the light on/off and fade times, with a minimum setting of 3 seconds.
With its advanced capabilities, the Smart 5-in-1 Wi-Fi and 2.4GHz Wireless LED Controller enables the creation of a customized and responsive lighting experience in commercial settings and larger, more demanding LED lighting installations.
In short, the Smart 5-in-1 Wi-Fi and 2.4GHz Wireless LED Controller is a powerful and versatile lighting control solution that is ideal for a wide range of commercial and residential applications.
- Choice of PMW frequency: 500Hz, 2000Hz, 8000Hz or 16000Hz (when in single colour LED mode)
- Built in push dimming compatibility
- Compatible with Tuya Smart App
- Voice Controllable through Amazon ECHO
