50W Constant Voltage LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-050-24 |
| Wattage | 50W |
| Voltage (DC) | 24v |
| Current (DC) | 2.08A |
| Length | 160mm |
| Width | 58mm |
| Depth | 18mm |
| Dimmable | Non Dimmable |
| IP Rating | IP20 |
| Input Voltage | 220/240 AC |
| Input Current | 0.3A / 230V |
| Inrush Current | 60A/230V |
| Input Frequency | 47/63Hz |
| Power Factor | >0.9 |
| Weight | 160g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
50W Constant Voltage LED Driver | 12V / 24V, IP20
This 50W constant voltage LED driver is built for powering commercial and residential LED strip lighting, offering reliable performance and long-lasting durability. Designed to convert 220/240V AC mains power into a stable 12V or 24V DC output, it ensures smooth and consistent operation across your lighting system.

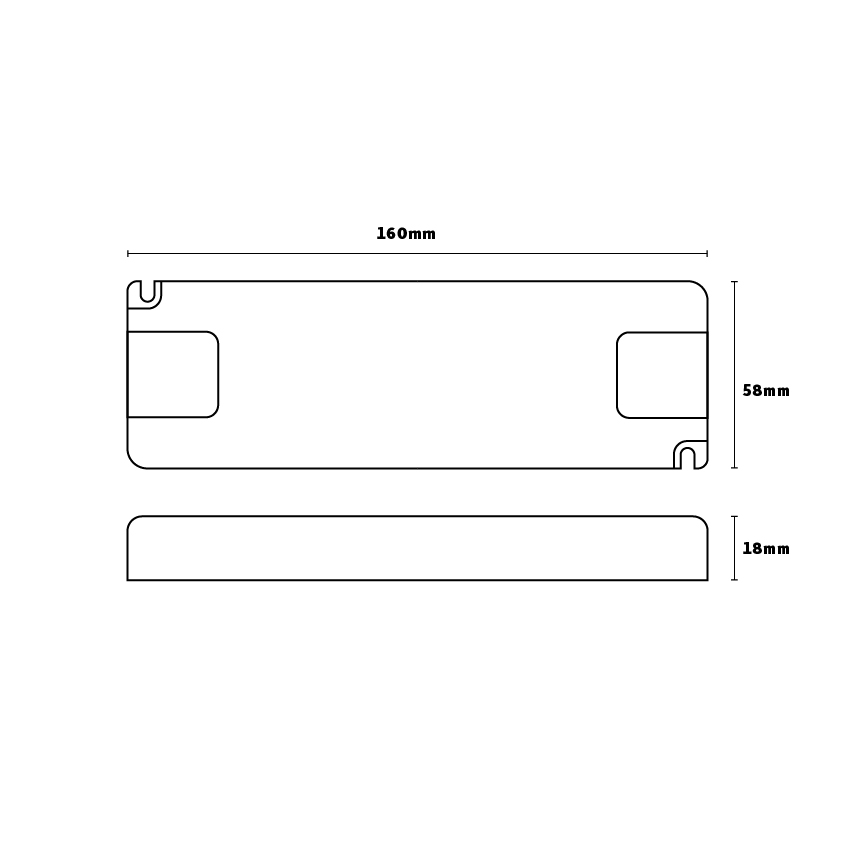

With a compact form factor of 160mm x 58mm x 18mm and a weight of just 160g, this unit is easy to fit into profiles, cabinets, or electrical enclosures. Delivering 2.08A at 24V DC, it is engineered for efficiency with a power factor of >0.9 and an input frequency of 47–63Hz. The inrush current is rated at 60A/230V, giving peace of mind for commercial-grade use.
Rated IP20, the driver is suitable for indoor installations in dry environments. It operates reliably in temperatures between -20°C and 50°C. This model is non-dimmable, making it the perfect choice for straightforward on/off applications where stable power is essential.
Backed by a 5-year warranty, this constant voltage LED driver is designed to deliver safety, efficiency, and reliability for professional lighting projects.
