50W TRIAC Mains Dimmable LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | TR-050-24 |
| Wattage | 50W |
| Voltage (DC) | 24v |
| Current (DC) | 2.08A |

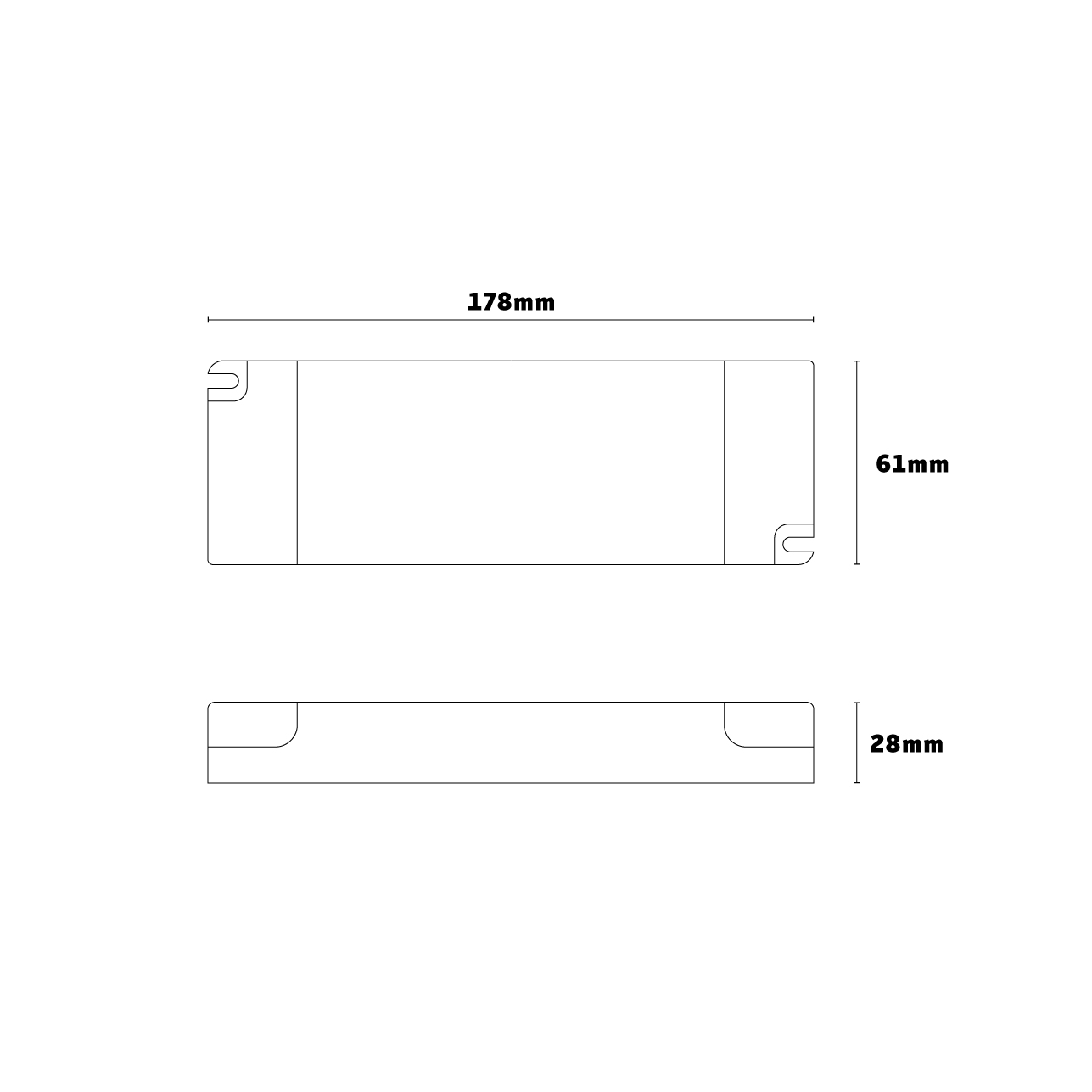

| Length | 178mm |
| Width | 61mm |
| Depth | 28mm |
| Dimmable | TRIAC / Mains |
| IP Rating | IP20 |
| Input Voltage | 180 / 240 AC |
| Input Current | 0.56A @ 230V |
| Inrush Current | 20A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 350g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
50W TRIAC Mains Dimmable LED Driver – 12V/24V, IP20 Rated
The 50W TRIAC mains dimmable LED driver delivers smooth, flicker-free control for commercial and residential LED lighting projects. Providing a constant 24V DC output at up to 2.08A, it is ideal for powering medium-sized LED installations that require reliable dimming performance.
This driver works seamlessly with TRIAC dimmer switches, giving you precise brightness control directly from the mains. Its robust yet compact design (178mm x 61mm x 28mm, 350g) makes it simple to install in both professional and domestic settings.
With an IP20 rating, the driver is designed for indoor use and is well-suited to retail displays, hospitality, offices, or residential spaces where flexible lighting control is needed. Built to perform in varied environments, it operates reliably between -20°C and +50°C.
For efficiency, it supports an input range of 180–240V AC, with a power factor above 0.95 and a modest input current of 0.56A at 230V. A 20A inrush current capacity further enhances protection during start-up, ensuring safe and stable operation.
Backed by a 5-year warranty, the 50W TRIAC dimmable LED driver offers dependable, long-lasting performance for projects that demand precision, efficiency, and control.
