6-Output | SPI | Pixel | RGB/W | Signal Splitter
Commercial Grade LED Controller
Full Specification
| Product Code | RC-PIXEL-6 |
| Protocol | Pixel (SPI) |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 5-24VDC |
| Input Current | Max. 30A |
| Output Voltage | 5-24V DC |
| Output Current | Max. 30A |
| Output Wattage | 150W – 5v / 720W – 24v |
| Signal | SPI (Pixel) |
| Control Distance | 2132 Pixels Max |
| Dimming Range | 0 -100% |

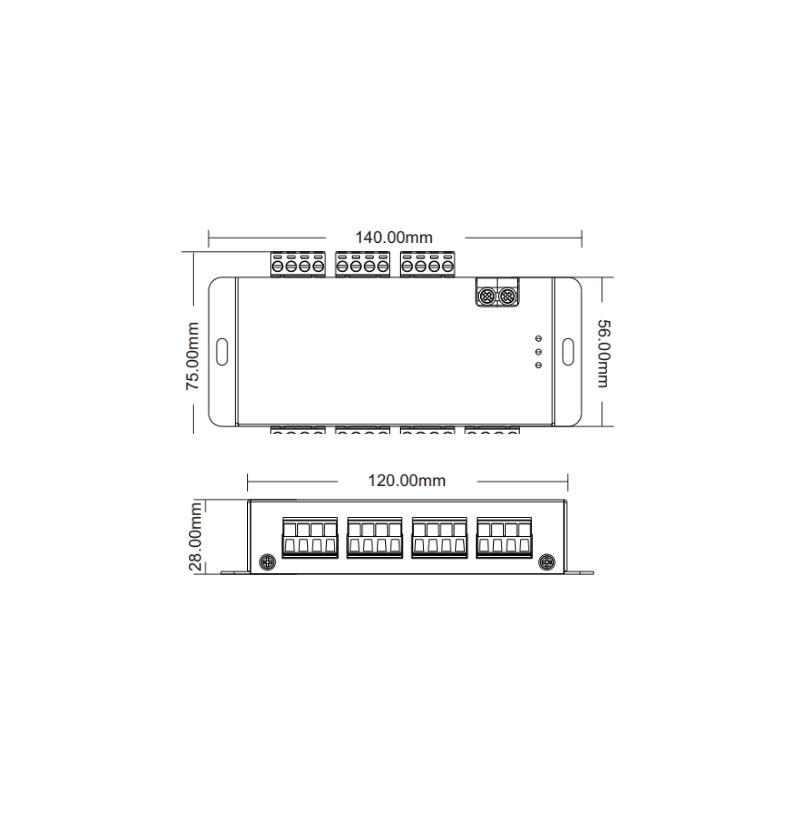

| Dimensions | L145 x W75 x H35mm |
| Weight | 0.260kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | PIXEL-CONTROL RM-WATER |

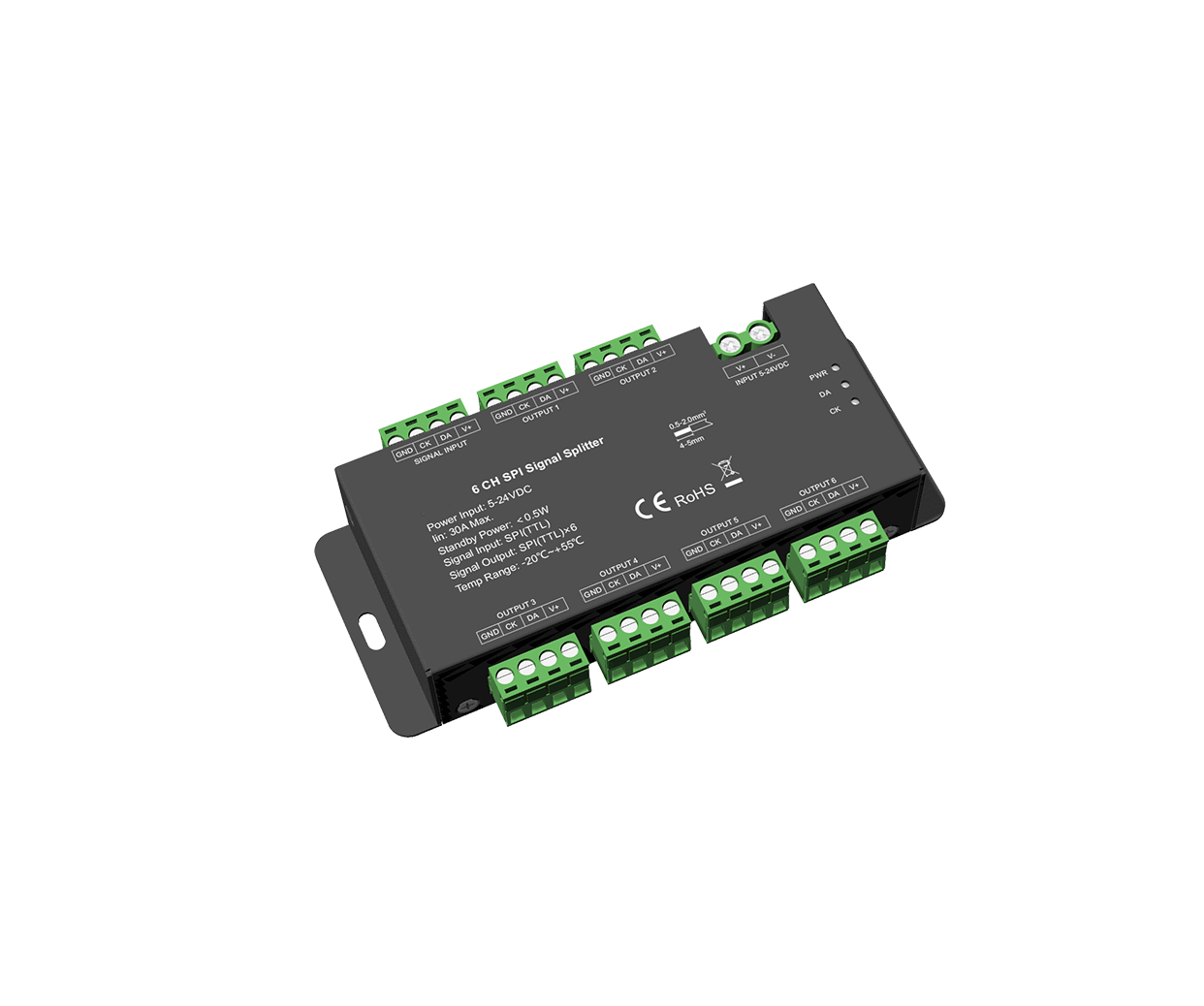

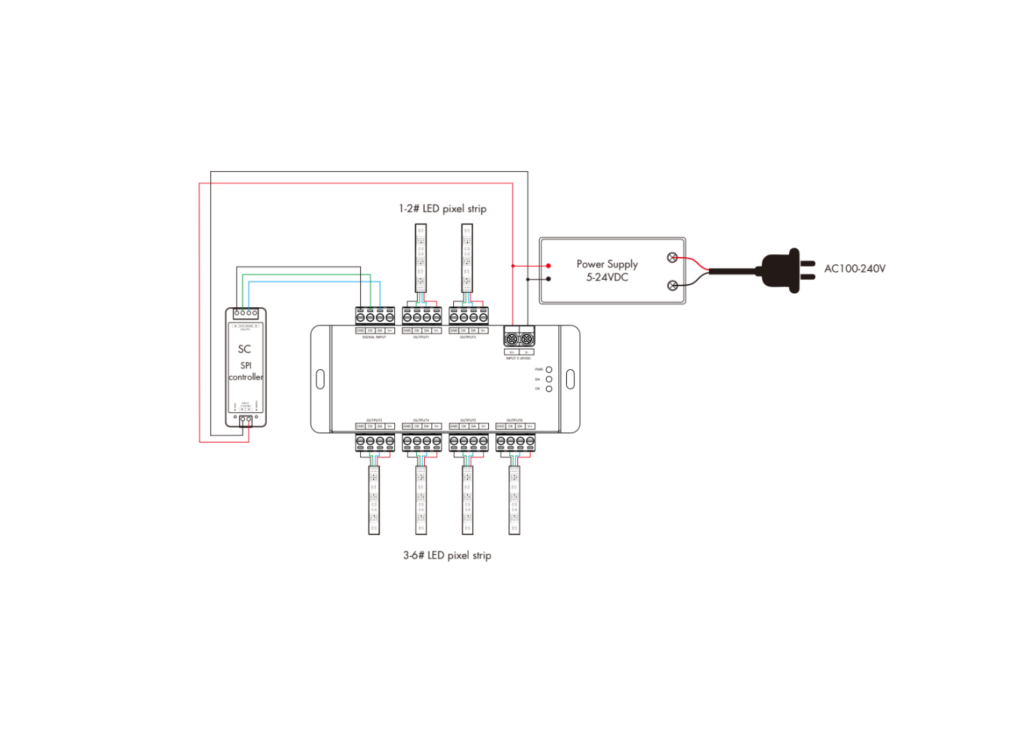

The RC-PIXEL-6 is a professional 6-way SPI signal splitter designed to expand and amplify SPI (TTL) signals for pixel LED installations. With 1 SPI input and 6 SPI outputs, it enables synchronous control of multiple SPI digital RGB or RGBW LED strips from a single controller.

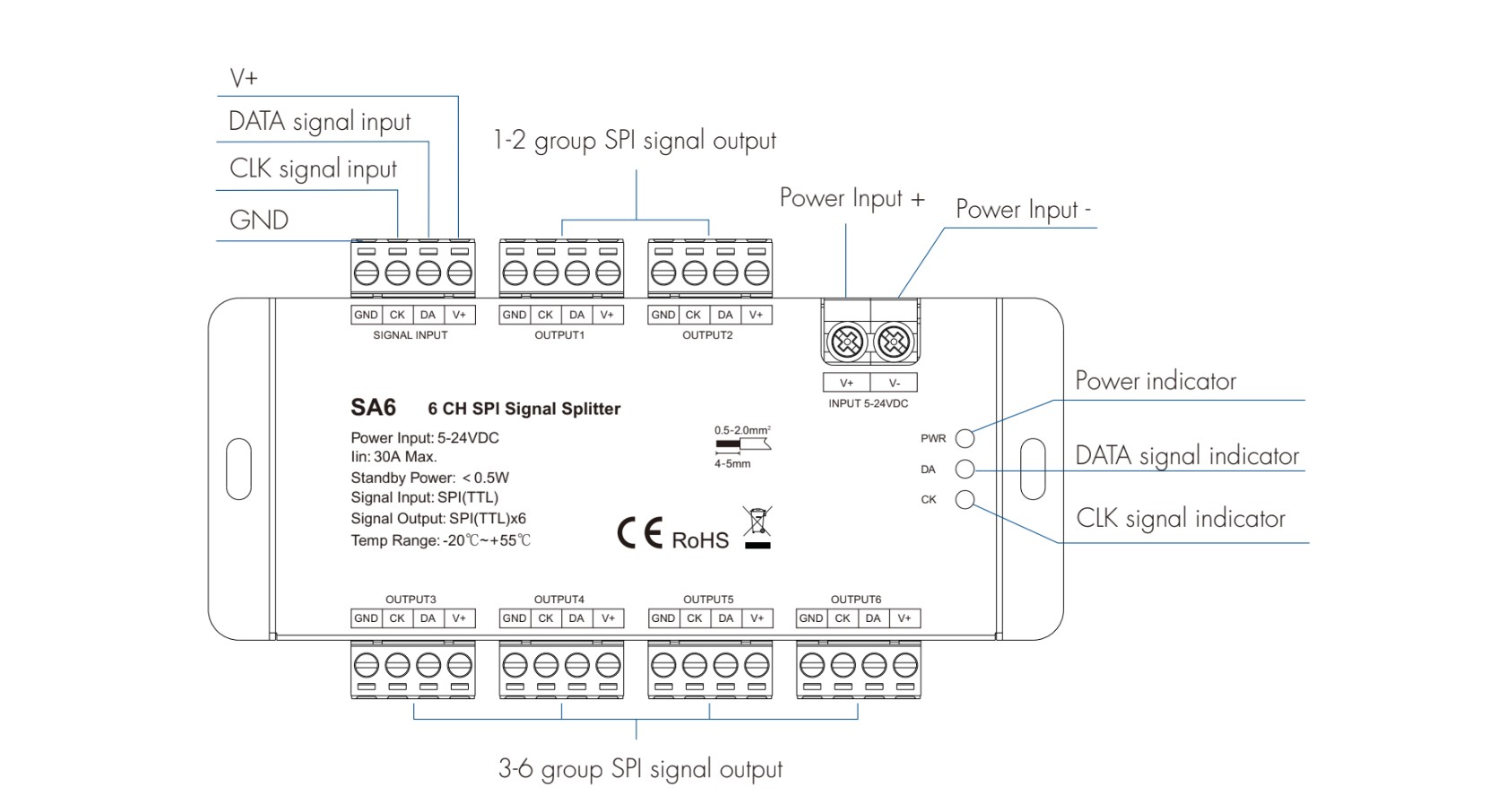

Powered by 5–24VDC with a max input current of 30A, the RC-PIXEL-6 ensures stable long-distance data transmission and reliable performance in large-scale projects. Built-in power, data, and clock indicators make it easy to monitor operation, while reverse polarity protection enhances durability. Its compact size and simple wiring make it ideal for professional lighting engineers.
