75W Constant Voltage LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-075-24 |
| Wattage | 75W |
| Voltage (DC) | 24v |
| Current (DC) | 3.13A |
| Length | 170mm |
| Width | 44.5mm |
| Depth | 28.5mm |
| Dimmable | Non Dimmable |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 0.5A / 230V |
| Inrush Current | 75A / 230V |
| Input Frequency | 47 / 63Hz |
| Power Factor | >0.9 |
| Weight | 250g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
75W Constant Voltage LED Driver | 12V / 24V, IP20
This 75W constant voltage LED driver is designed to provide safe, reliable power for LED strip lights and other low-voltage lighting systems. Converting 220/240V AC mains into a stable 12V or 24V DC output, it ensures consistent performance across a wide range of commercial and residential applications.
Delivering 3.13A at 24V DC, this driver offers strong, stable power while maintaining efficiency with a power factor greater than 0.9. It operates at an input frequency of 47–63Hz and has an inrush current of 75A/230V, making it suitable for demanding professional installs.

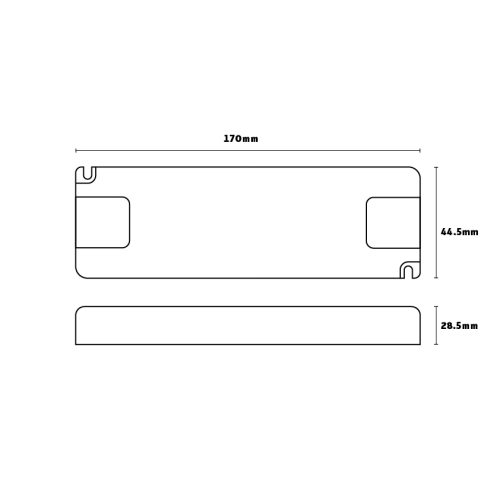

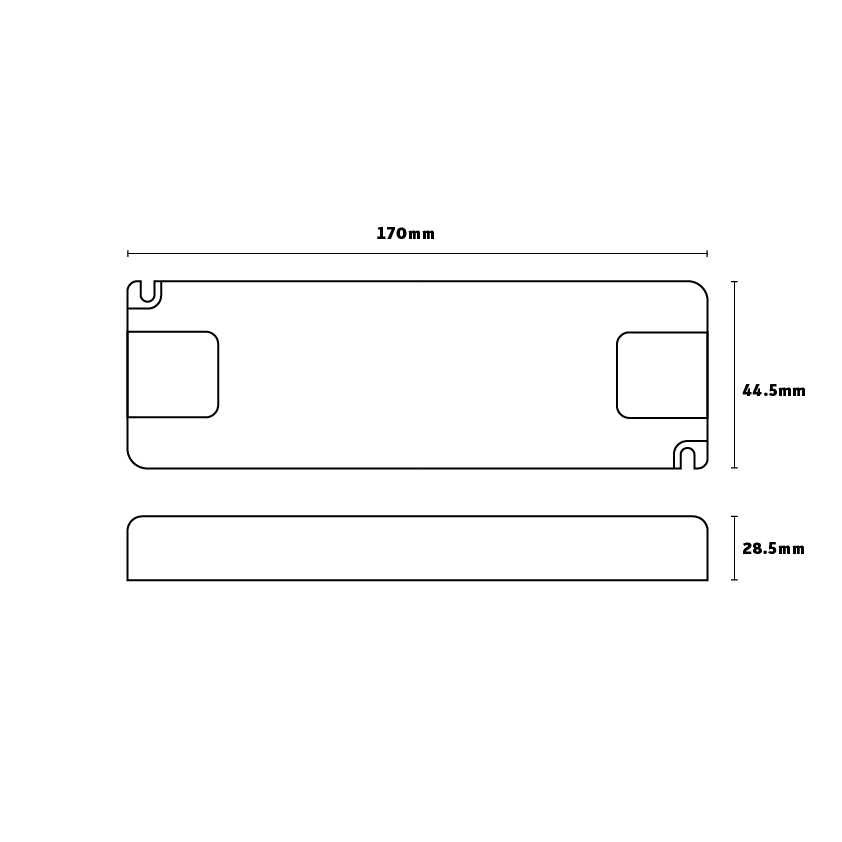

Compact and lightweight at 170mm x 44.5mm x 28.5mm and 250g, this unit is easy to install in enclosures, cabinets, or LED profiles. Rated IP20, it is designed for indoor use in dry environments. It performs reliably in operating temperatures ranging from -20°C to 50°C.
This model is non-dimmable, making it ideal for straightforward on/off applications where stable voltage is required. Backed with a 5-year warranty, the 75W constant voltage LED driver offers durability, safety, and long-term reliability for professional-grade lighting projects.
