75W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-075-24 |
| Wattage | 75W |
| Voltage (DC) | 24v |
| Current (DC) | 3.12A |
| Length | 295mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 0.42A @ 230V |
| Inrush Current | 28A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 340g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
75W DALI Dimmable LED Driver – 24V, IP20 Rated
The 75W DALI dimmable LED driver is a reliable power supply designed for larger LED installations that require smooth and accurate dimming control. Delivering a constant 24V DC output at up to 3.12A, it ensures stable, flicker-free performance for demanding projects.
This unit supports both DALI and 1–10V/0–10V dimming protocols, offering excellent flexibility for integration into modern lighting systems. Whether used in offices, retail, hospitality, or residential settings, it enables seamless brightness control with precision and consistency.

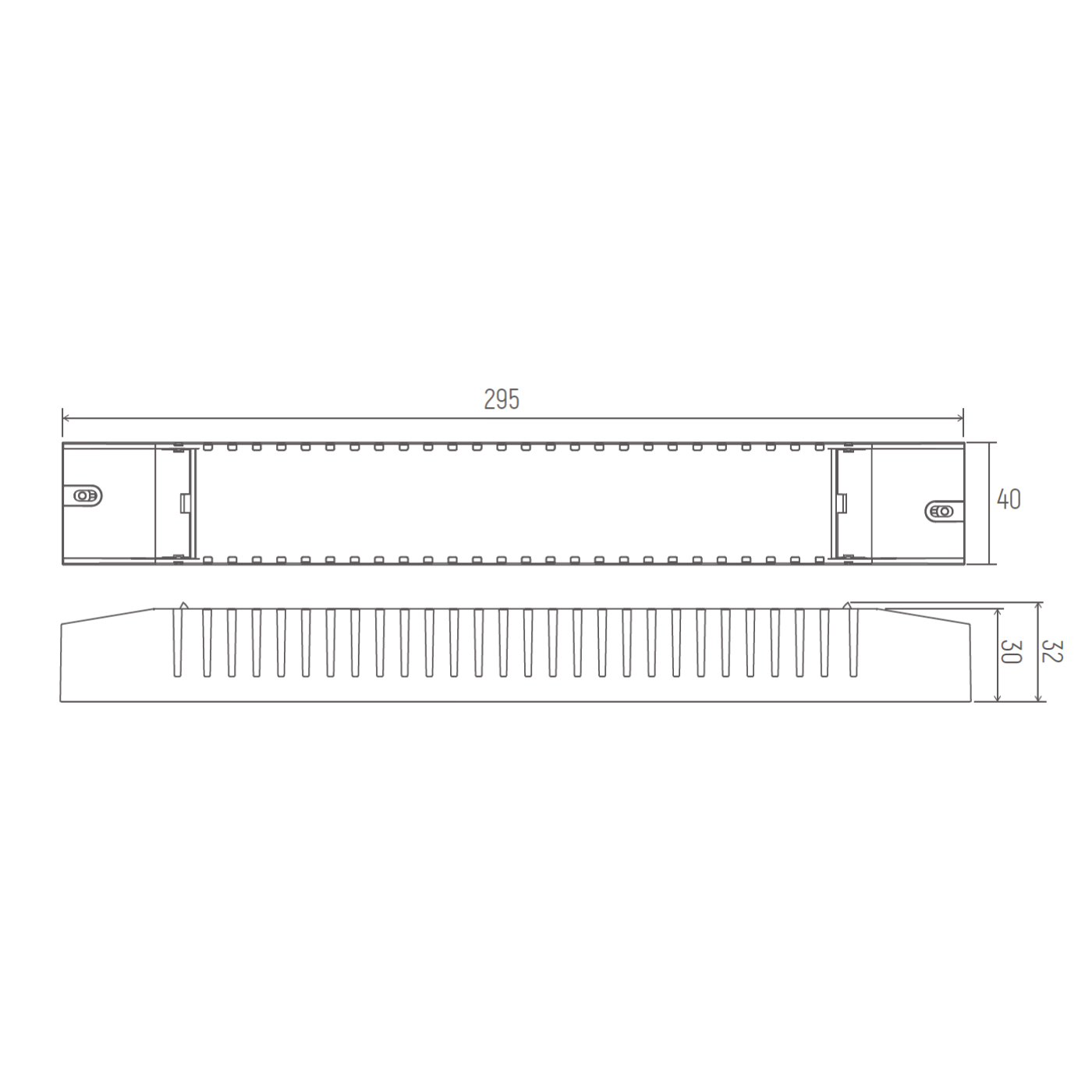

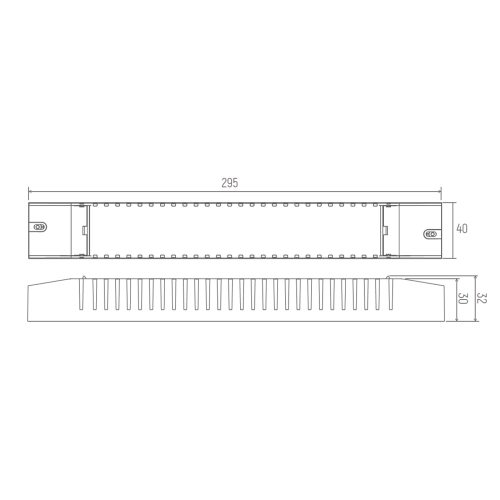

Built with a slim and practical design (295mm x 40mm x 32mm) and weighing just 340g, the driver is easy to install while remaining robust enough for professional applications.
Rated IP20, it is intended for indoor use and operates effectively in a wide range of conditions, withstanding temperatures from -20°C to +50°C. Engineered for efficiency, it runs on 220–240V AC input, with a power factor greater than 0.95 and a low input current of 0.42A at 230V. A 28A inrush current capacity ensures protection during start-up, safeguarding LED systems.
Backed by a 5-year warranty, the 75W DALI dimmable LED driver delivers dependable performance, making it a strong choice for commercial and residential lighting projects requiring advanced control.
