75W TRIAC Mains Dimmable LED Driver, 12v/24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | TR-075-24 |
| Wattage | 75W |
| Voltage (DC) | 24v |
| Current (DC) | 3.1A |

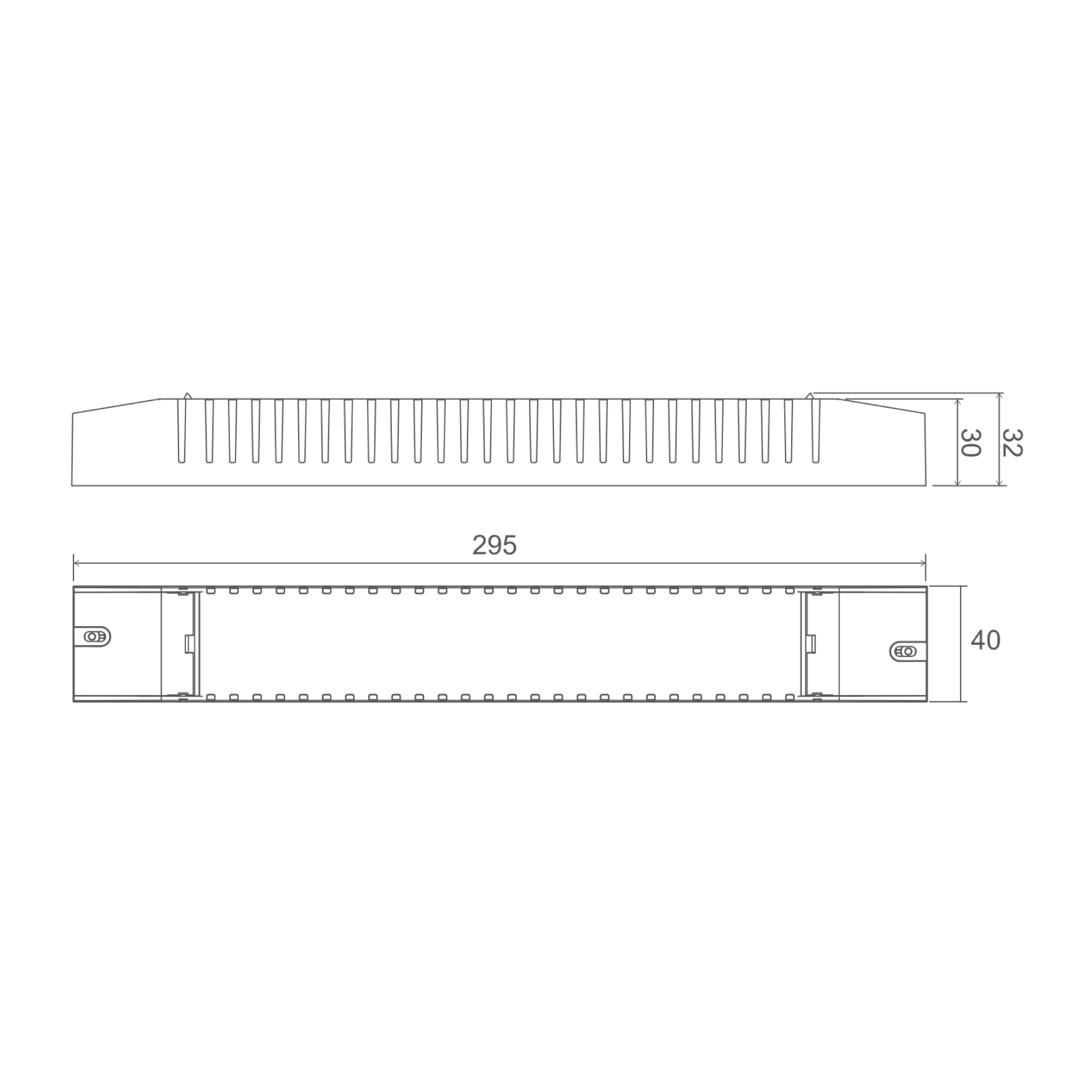

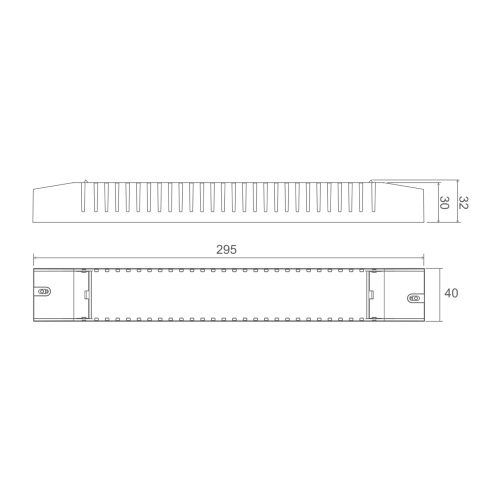

| Length | 295mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | TRIAC / Mains |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 0.43A @ 230V |
| Inrush Current | 20A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 460g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
75W TRIAC Mains Dimmable LED Driver – 12V/24V, IP20 Rated
The 75W TRIAC mains dimmable LED driver is designed for medium to large LED installations that require smooth, stable dimming and consistent performance. Delivering a 24V DC constant output at up to 3.1A, it provides reliable power for commercial and residential projects where lighting control is essential.
Fully compatible with TRIAC dimmer switches, this driver allows seamless adjustment of brightness directly from the mains, ensuring flicker-free dimming across a wide range of applications. Its slim profile (295mm x 40mm x 32mm) and weight of 460g make installation straightforward, even in tighter spaces.
Rated IP20, the driver is intended for indoor use, making it a perfect fit for retail displays, hospitality settings, offices, and residential environments. Designed to perform reliably in operating temperatures from -20°C to +50°C, it offers durability in demanding conditions.
Engineered for efficiency, the unit supports 220–240V AC input, with a power factor above 0.95 and a low input current of 0.43A at 230V. A 20A inrush current capacity offers added protection during start-up, safeguarding connected LED systems.
Backed by a 5-year warranty, the 75W TRIAC dimmable LED driver is a dependable choice for flexible, high-quality lighting control.
