CCT | SPI | Pixel | LED Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | PIXEL-WALL-CCT |
| Protocol | Pixel (SPI) |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

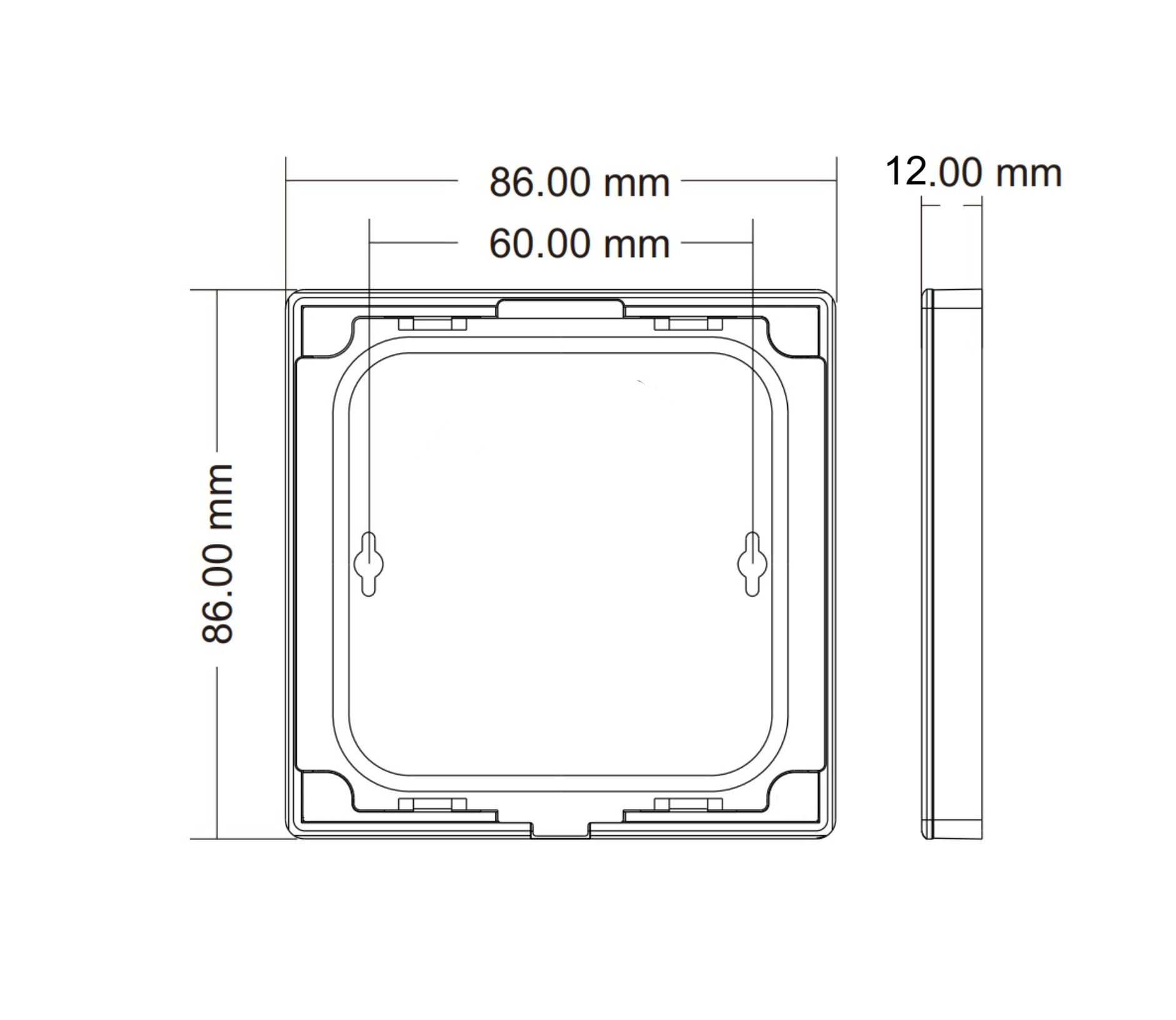

| Dimensions | L86 x W86 x H12mm |
| Weight | 0.064kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
CCT SPI Pixel LED wall plate controller with 4-zone control
The PIXEL-WALL-CCT is a stylish RF touch panel Wall Controller designed for CCT tunable white LED lighting. With support for up to 4 zones, it gives users full control of brightness (1–100%) and colour temperature (warm to cool white) using intuitive touch rings.
Featuring easy zone selection, music mode, and fast RF pairing/unpairing, the RB2 is ideal for both residential and commercial projects requiring flexible and modern control of tunable white lighting. Its sleek wall-mounted design ensures it blends seamlessly into contemporary interiors while offering reliable 2.4GHz wireless performance.
![]()
Key Features
CCT Tunable White Control – Adjust brightness and colour temperature (warm to cool white)
Multi-Zone Operation – Manage up to 4 zones independently or together

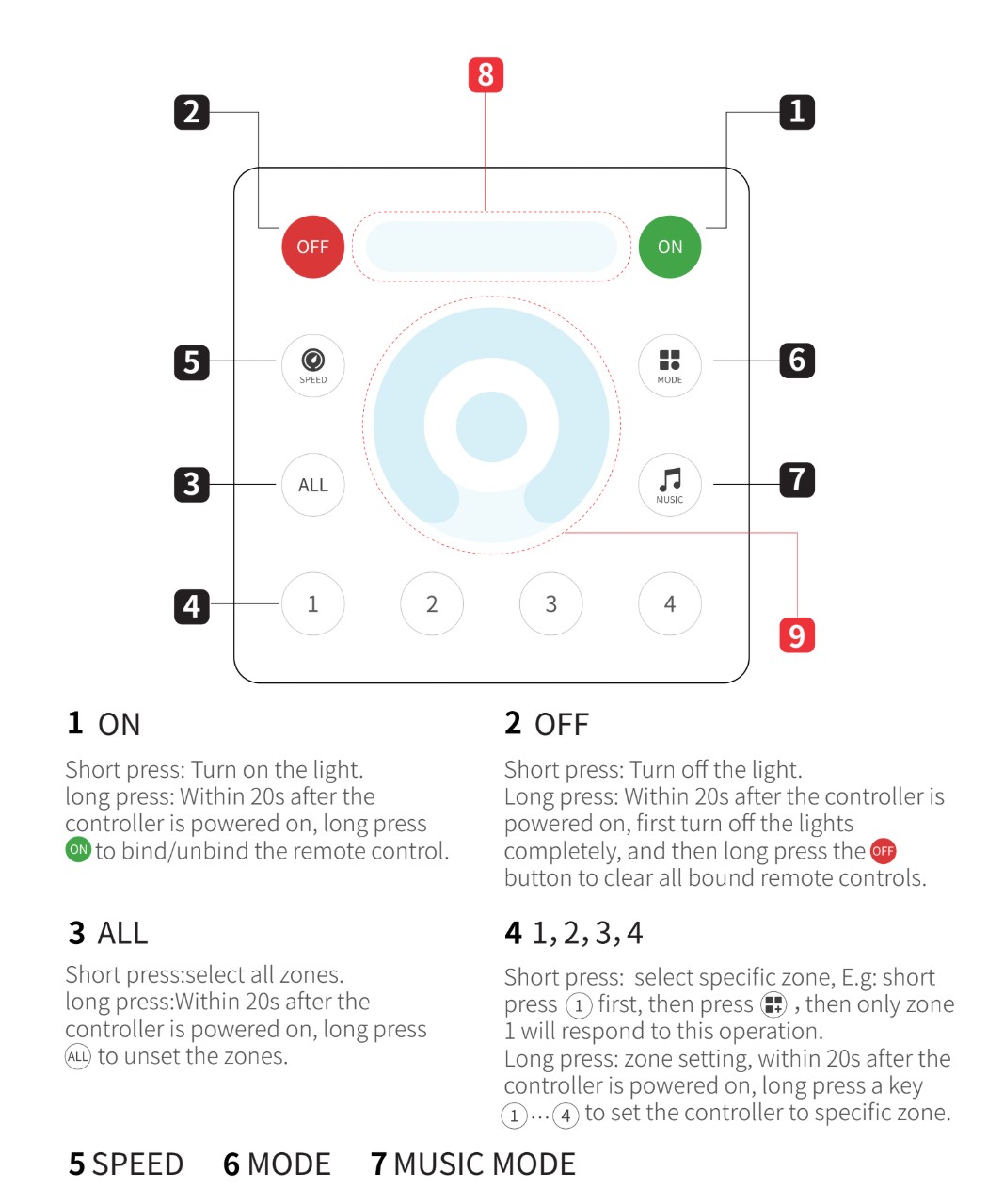

Touch Rings – Brightness ring + CCT temperature ring for smooth control
Music Mode – Sync lighting with music for dynamic ambience
Smooth Dimming – Full 1–100% brightness adjustment
Quick Setup – Easy RF pairing/unpairing within 20s
Sleek Wall Panel Design – Minimalist, modern, and intuitive
Reliable RF Signal – 2.4GHz communication for stable control
Applications
The PIXEL-WALL RB2 is ideal for:
Residential Lighting – Bedrooms, kitchens, and living rooms with tunable white strips.
Commercial Interiors – Offices, hotels, and restaurants needing adjustable ambience.
Architectural Projects – Façade and interior spaces with warm-to-cool white control.
Hospitality & Events – Dynamic tunable lighting for exhibitions, bars, and lounges.
