Deep Recessed LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-DR |
| Width | 17mm (24.9mm incl flange) |
| Height | 14.5mm |
| Max LED Width | 12.3mm |
| Available Lengths | 1m, 2m |
| Colour Options | Silver, White, Black |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) |
Deep Recessed LED Profile – Aluminium, IP20 Rated
The INSTYLE LED Deep Recessed LED profile is a professional-grade aluminium housing designed to deliver a clean, seamless finish for recessed LED strip installations. Its deeper structure enhances light diffusion, reducing visible hotspots and producing a smooth, continuous line of illumination.

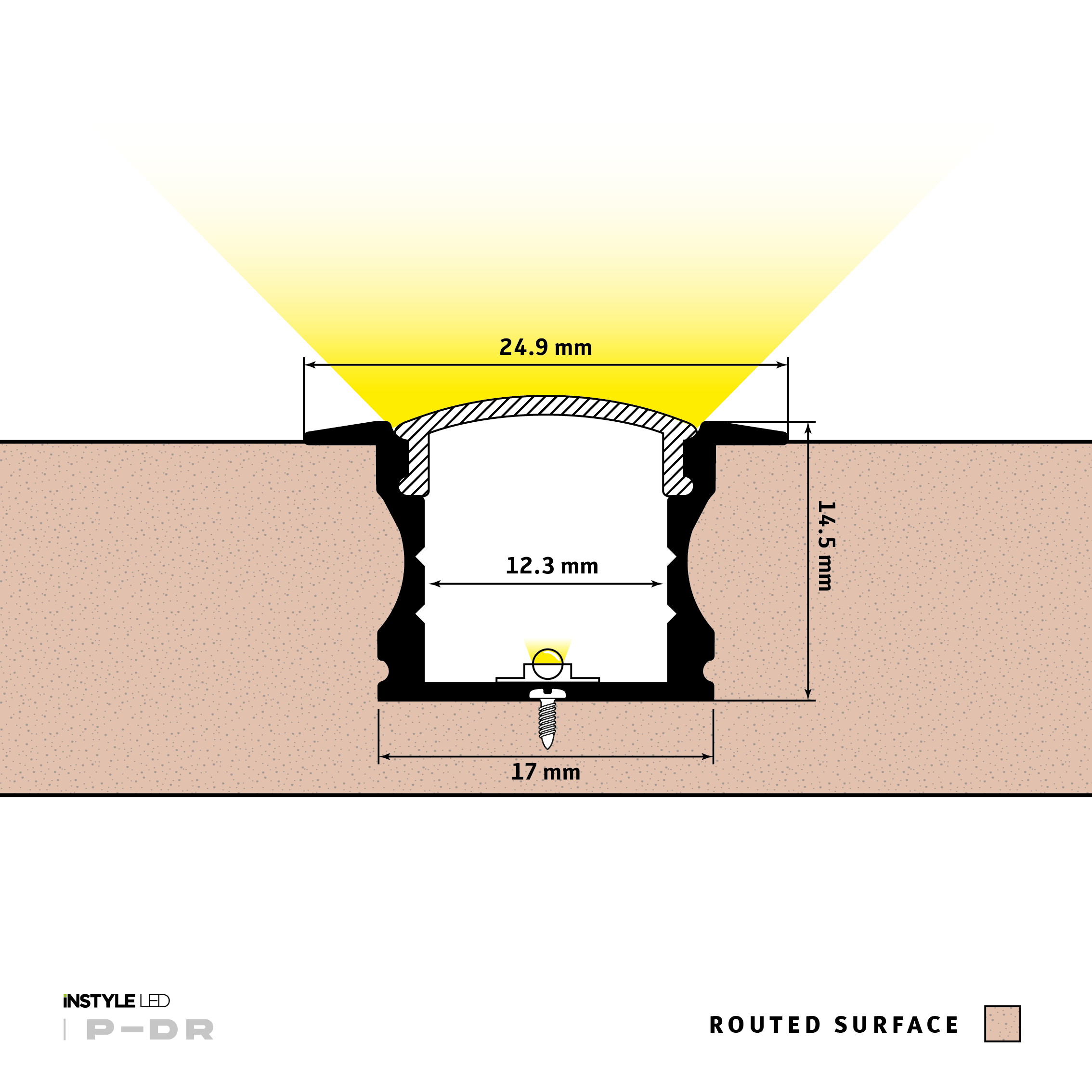

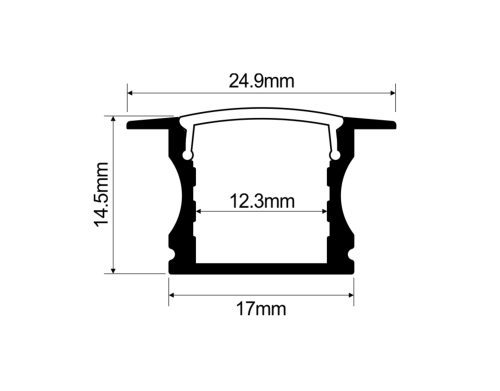

Measuring 17mm wide (24.9mm including flange) and 14.5mm high, it accommodates LED tape up to 12.3mm wide, making it suitable for a wide range of commercial and residential lighting projects. Available in 1m and 2m lengths, the profile is offered in silver, white, or black finishes, ensuring it blends with different design schemes.

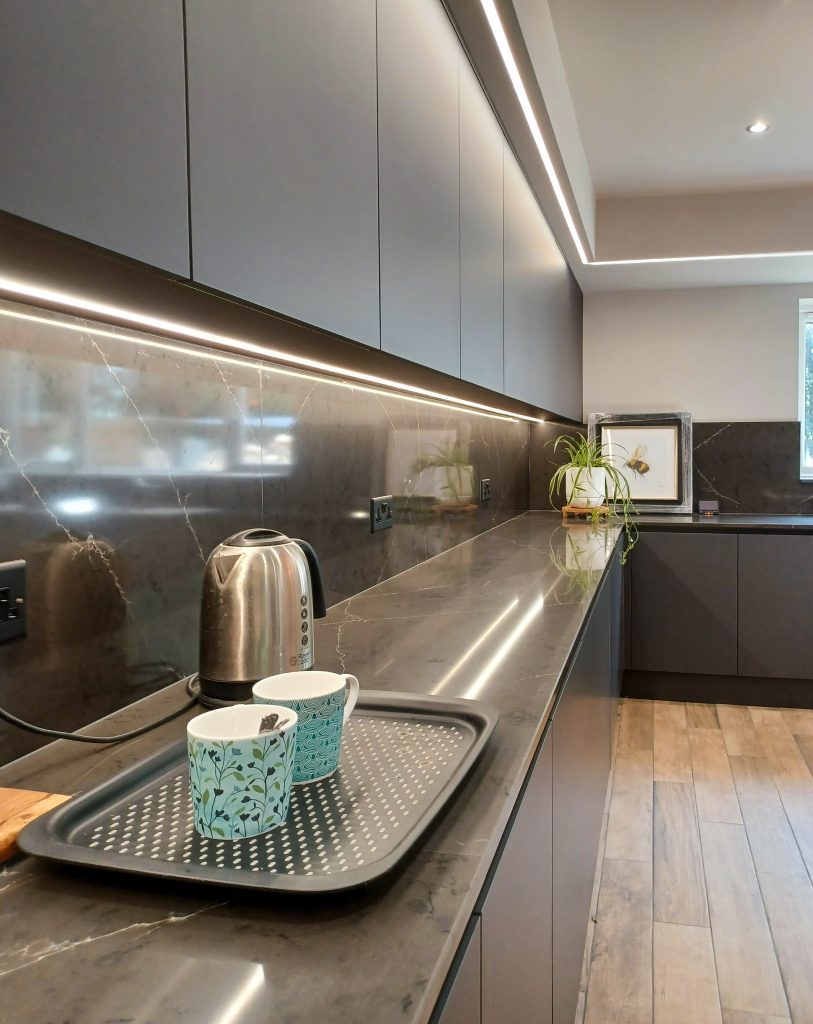

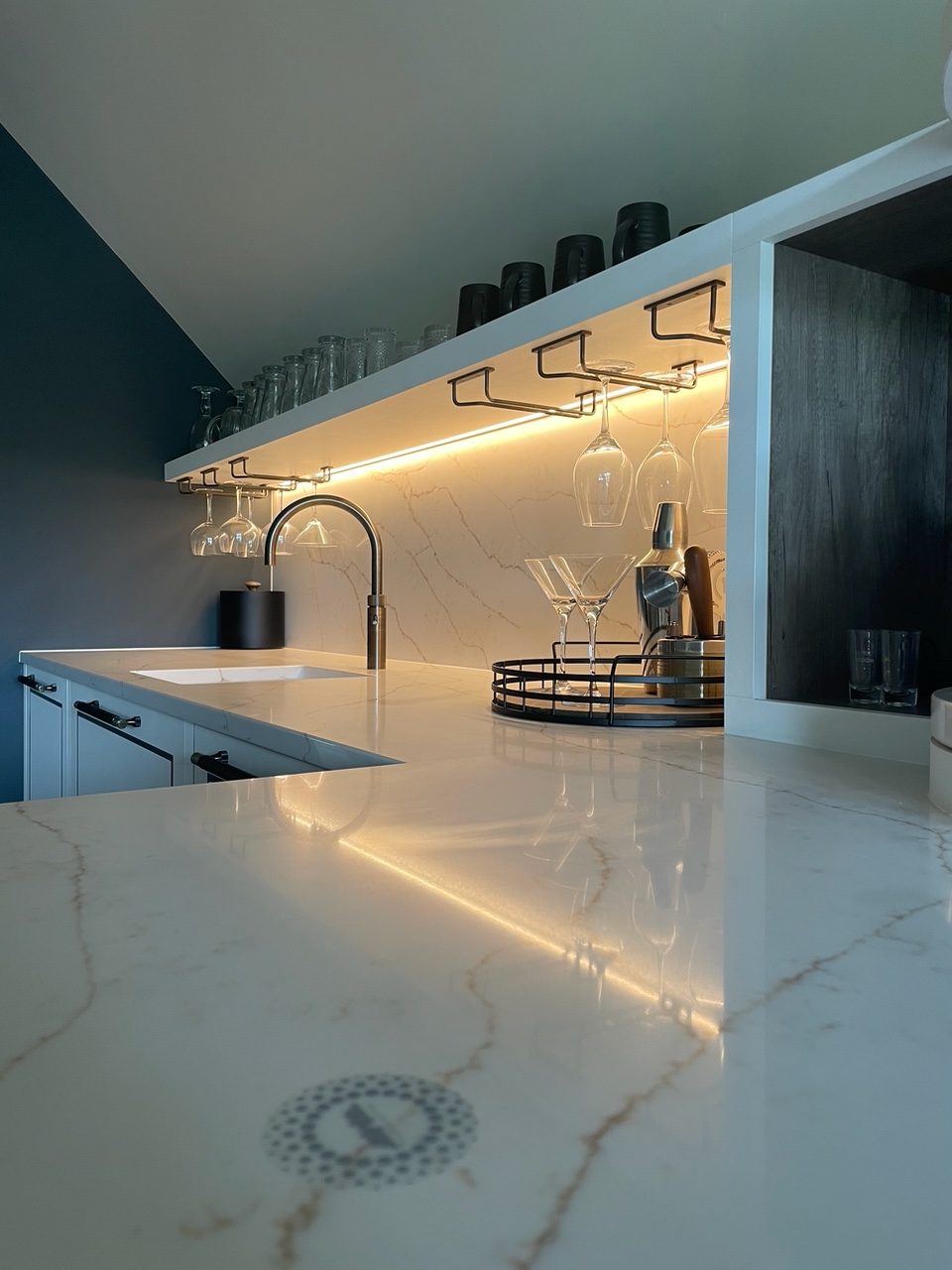

The included opal lens cover (20% semi-diffused) provides glare-free lighting while maintaining strong brightness levels, ideal for kitchens, offices, retail displays, and decorative features.
Rated IP20, the Deep Recessed LED profile is intended for indoor use only. It combines durability, function, and style, making it a reliable solution for high-quality recessed LED lighting installations.
- Commercial Grade
- Maximum LED strip width: 12.3mm
- Colour: Silver, White, Black
- Waterproof Rating: IP20
