Deep Surface LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-DS |
| Width | 17mm |
| Height | 14.2mm |
| Max LED Width | 12.5mm |
| Available Lengths | 1m, 2m |
| Colour Options | Silver, White, Black |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) |

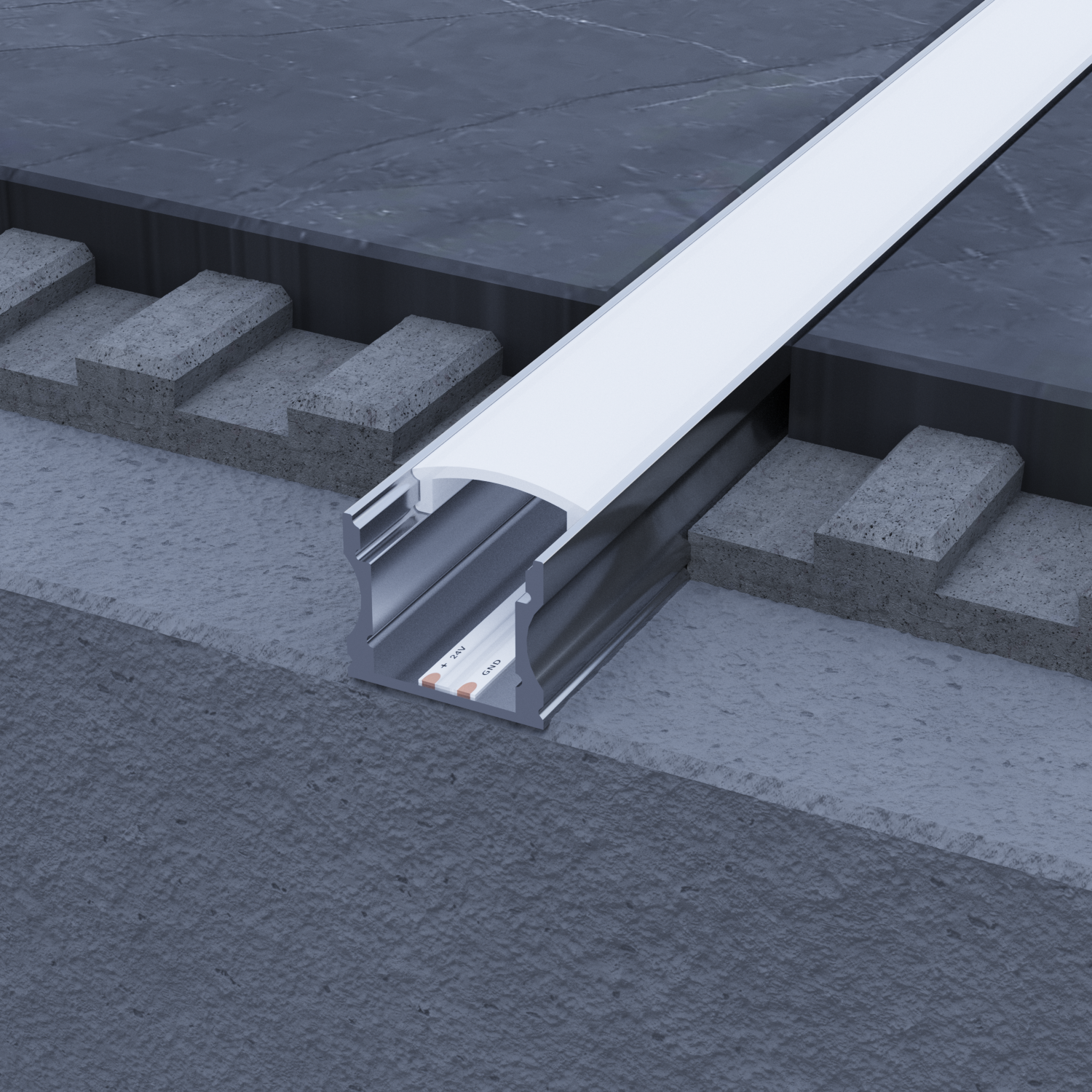

Deep Surface LED Profile – Aluminium, IP20 Rated

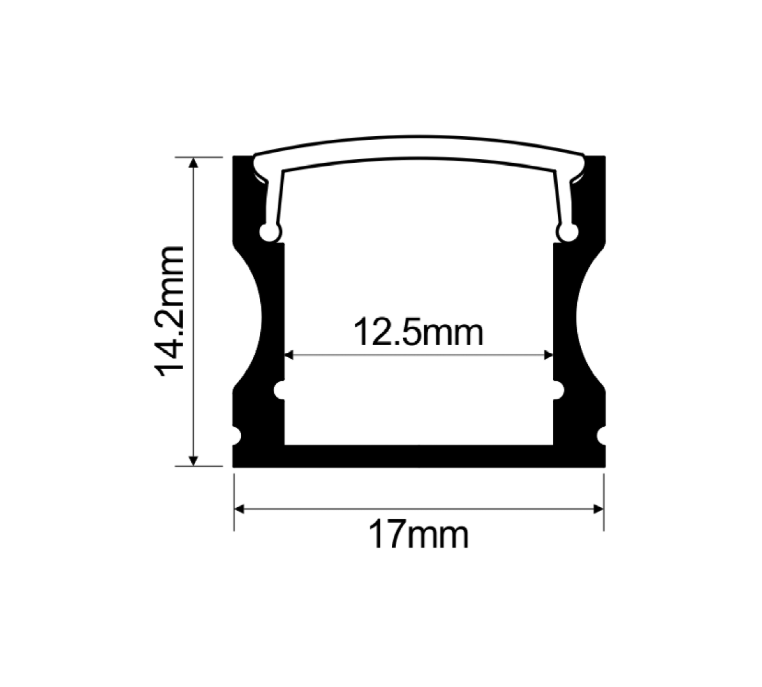

The Deep Surface LED profile is a premium aluminium housing designed to deliver a clean, professional finish for LED strip lighting while improving performance and durability. With dimensions of 17mm wide and 14.2mm high, it supports LED tape up to 12.5mm wide, making it suitable for a wide variety of installations.
Available in 1m and 2m lengths, this profile comes in a choice of silver, white, or black finishes, ensuring it blends seamlessly with any décor or project style. The deeper design improves light distribution, reducing visible LED hotspots for a smooth, continuous line of illumination.
Fitted with an opal lens cover (20% semi-diffused), it softens output to create even, glare-free lighting that’s ideal for both commercial and residential applications.
Rated IP20, the Deep Surface LED profile is intended for indoor use only. It combines durability, style, and function, making it an excellent choice for high-quality LED lighting installations.
- Commercial Grade
- Ideal for internal use
- Aluminium (buffed silver) finish
- Available in white
- Available in black
- Semi Diffused Opal Lens
