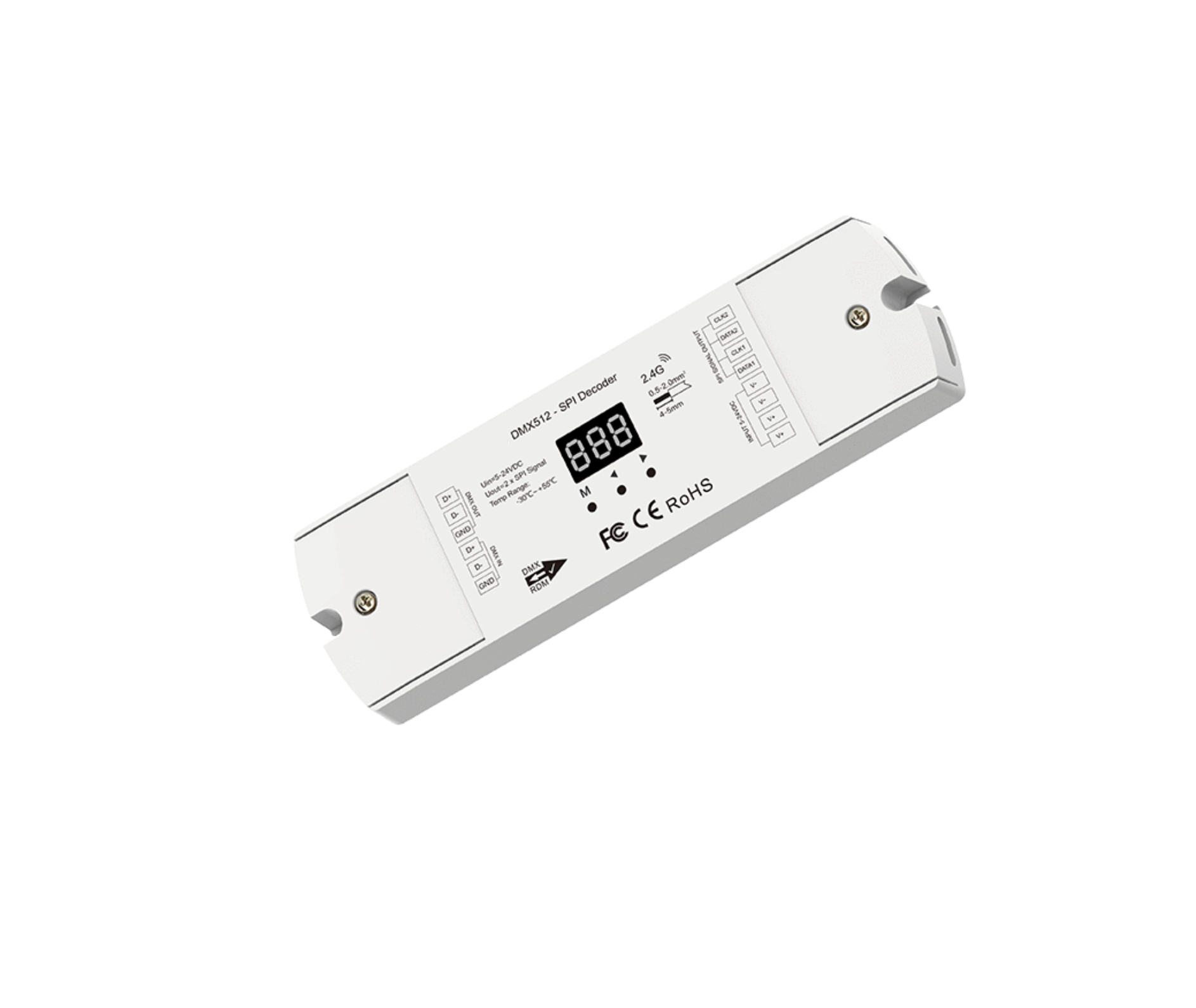

DMX 512 – SPI | Pixel | LED Decoder (with RF)
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX-SPI |
| Protocol | Pixel (SPI) |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 5-24VDC |
| Output Voltage | 5-24V DC |
| Signal | DMX512 + RF 2.4GHz SPI (Pixel) |
| Control Distance | 170 Pixels (RGB 510 CH) Max 900pixels |
| Dimming Range | 0 -100% |

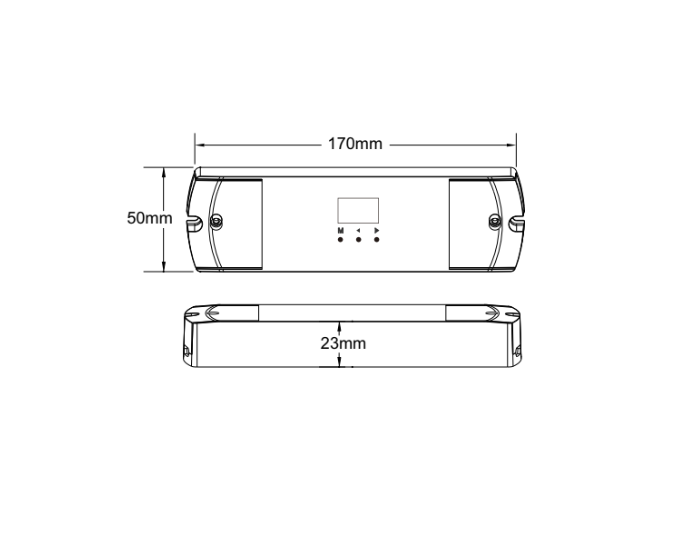

| Dimensions | L175 x W54 x H27mm |
| Weight | 0.122kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015/EN IEC 61547 |
| Safety standard(LVD) | EN 61347-1/-2 EN 62493 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products |
The RC-DMX-SPI is a powerful DMX512-to-SPI decoder and RF controller designed to control digital RGB and RGBW pixel LED strips. Supporting over 47 IC types (including WS2811, WS2812, SK6812, TM1814, UCS2904, GS8208, and more), it ensures maximum compatibility for professional lighting projects.
With DMX decode mode, stand-alone mode, and RF mode, the RC-DMX-SPI offers unmatched flexibility. It supports up to 900 pixels (RGB) with 32 dynamic effects such as horse-race, chase, meteor, and gradual change styles. Users can set DMX start address, IC type, RGB order, and pixel length directly via the onboard digital display and keys. Built-in reverse polarity protection and 5-year warranty make it reliable for long-term installations.
