Door | LED Sensor (Single)

Commercial Grade LED Sensor

Full Specification

Product Code	SN-DOOR
Protocol	Sensor
Compatible LED	White & Single Colour
Product Type	Sensor
Zones (channels)	1
Voltage	5V DC
Sensor Range	0 – 80mm
Cable Length	1m
Detection Angle	30°
IP Rating	20
Hole Cutout Size	10.5mm

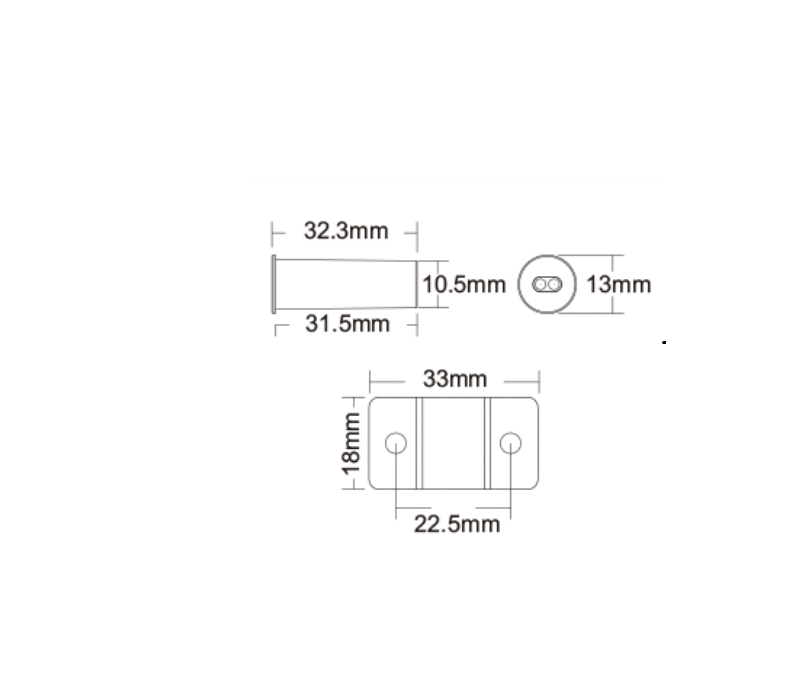

Dimensions	L31.5 x W113mm
Warranty	5 Years
Certification	CE, RoHS, EMC
Compatible Products	SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT

The SN-DOOR is a compact, low-voltage door sensor switch designed for smart LED lighting control in cabinets, wardrobes, and furniture applications. Powered by 5VDC, it outputs a 5V level or PWM signal, turning lights on when the door opens and off when the door closes.

With a ≤8–10cm detection field and 15–30° sensing angle, it ensures a precise response to door movements. The sensor supports both concealed installation (11mm hole) and surface mounting using the included holder, screws, and carabiner — giving flexibility for different furniture designs. Operating at 2000Hz PWM, it delivers flicker-free dimming performance when paired with constant voltage LED drivers and controllers.

Nothing Found

Key Features

Door-Activated Lighting – Lights turn on when door opens, off when closed
Low Voltage Powered – 5VDC input with 5V/PWM signal output
Compact Design – ≤10cm sensing distance, 15–30° angle
Smooth Performance – 2000Hz PWM signal, flicker-free

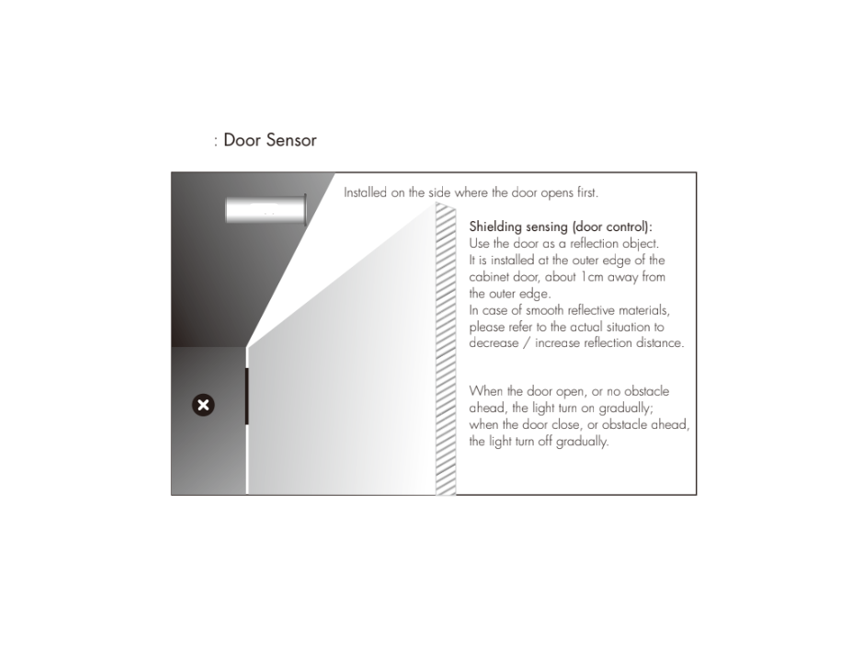

Flexible Installation – Concealed (11mm hole) or surface mount options

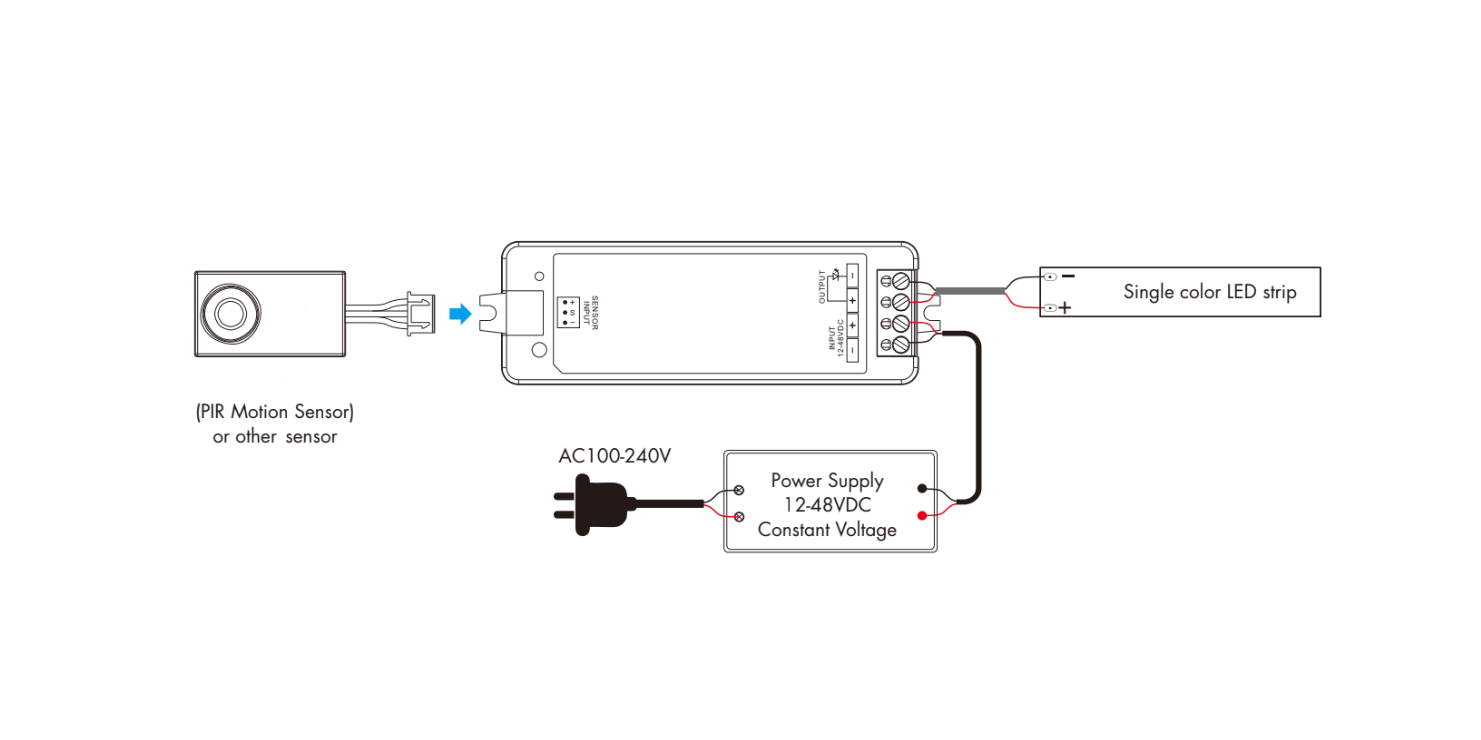

Easy Integration – Works with constant voltage LED dimming power supplies
Complete Kit – Includes sensor, screws, carabiner, and manual

Applications

Wardrobes & Closets – Automatic lighting when doors open or close.

Cabinets & Cupboards – Hands-free illumination for kitchen or storage units.

Wine Cabinets & Displays – Smart, subtle lighting control for premium interiors.

Smart Homes – Integrated sensor-based automation for furniture lighting.

Commercial Furniture – Retail shelves, hospitality units, and custom fixtures.
