Double LED Sensor Control Unit
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-UNIT-DS |
| Protocol | Sensor |
| Compatible LED | White & Single Colour Tunable White (CCT) |
| Product Type | Sensor |
| Zones (channels) | 2 |
| Input Voltage | 12-48V DC |
| Input Current | 12.5A |
| Output Voltage | 2 x (12-48V) DC |
| Output Current | 2 x 6A/CH |
| Output Wattage | 2 x 72W -12V / 2 x 144W-24V |
| Signal | Push switch / Sensor |
| Control Distance | 1-6m |
| Dimming Range | 10-100% |
| Dimensions | L120 x W78 x H55mm |
| Weight | 0.21kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, RoHs, EMC, RED |
| Compatible Products | SN-WOOD / SN-DOOR / SN-HAND SN-MICRO / SN-PIR / SN-LASER |
The SN-UNIT-DS is a versatile 2-channel LED controller designed with dual sensing inputs for advanced lighting automation. It supports single-colour (DIM) and Tunable White (CCT) LED strips, with smooth dimming, colour temperature control, and multiple sensing options.

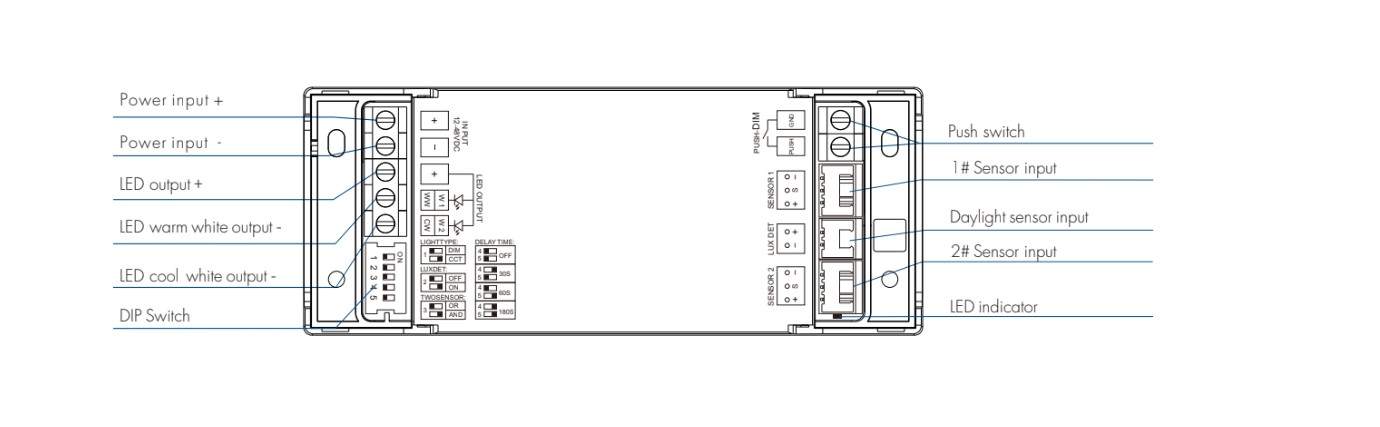

Compatible with PIR motion sensors, door sensors, hand-sweep sensors, and daylight sensors, the ES-V enables precise, responsive lighting control. A built-in push-dim interface allows manual brightness and CCT adjustment, while DIP switches configure light type, delay-off time, daylight detection, and dual-sensor logic (OR/AND). With high output power (up to 2×144W @24V) and 2000Hz PWM dimming, it ensures stable, flicker-free performance for residential and commercial applications.
Key Features
Dual Sensor Inputs – Works with PIR, door, hand-sweep, and daylight sensors
Flexible Output – Supports single-colour DIM or Tunable White CCT LED strips
Push-Dim Control – Manual brightness and colour temperature adjustment
Smart Settings – DIP switch setup for light type, sensor logic, and delay-off timing (30s/60s/180s)
High Power Output – 2×6A @12/24V or 2×4A @36/48V (up to 384W total)
Smooth Dimming – 2000Hz PWM with 4096 grey levels for flicker-free light
Compact & Durable – 120×78×55mm housing, IP20 rated, 5-year warranty
Protected Design – Overheat and overload protection built in
Applications
The SN-UNIT-DS dual-sensing LED controller is ideal for:
Staircase Lighting – Trigger lights from top or bottom with dual PIR motion sensors.
Cabinets & Wardrobes – Automatic activation via single or dual door sensors.
Bedrooms & Living Rooms – Soft, sensor-controlled ambient lighting.
Commercial Spaces – Intelligent lighting for hallways, storage areas, or offices.
Smart Homes – Combine sensors and push-dim for convenient, energy-saving lighting
