Hand Sweep | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-HAND |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 100mm |
| Cable Length | 1m |
| Detection Angle | 30° |
| IP Rating | 20 |

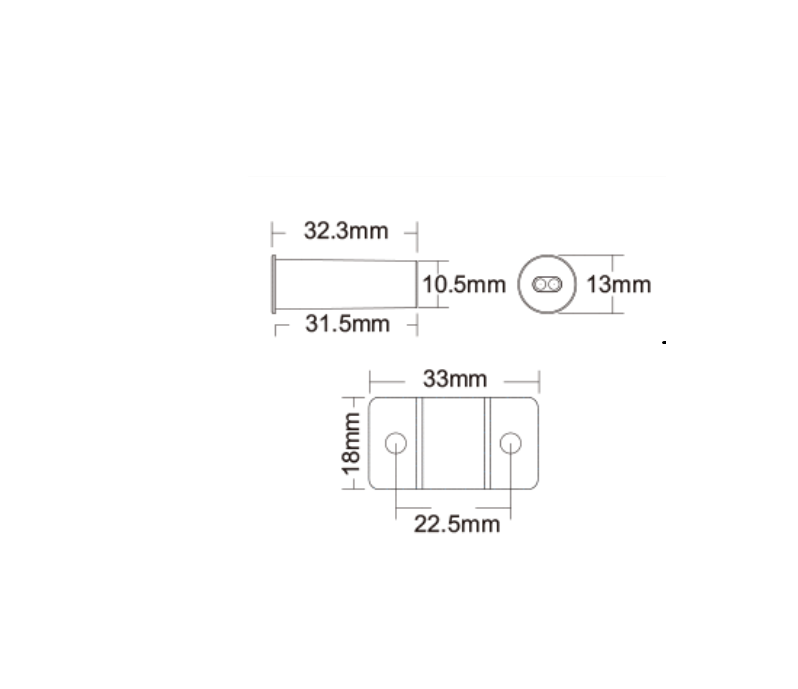

| Hole Cutout Size | 10.5mm |
| Dimensions | L31.5 x W113mm |
| Warranty | 5 Years |
| Certification | CE, RoHS, EMC, LVD |

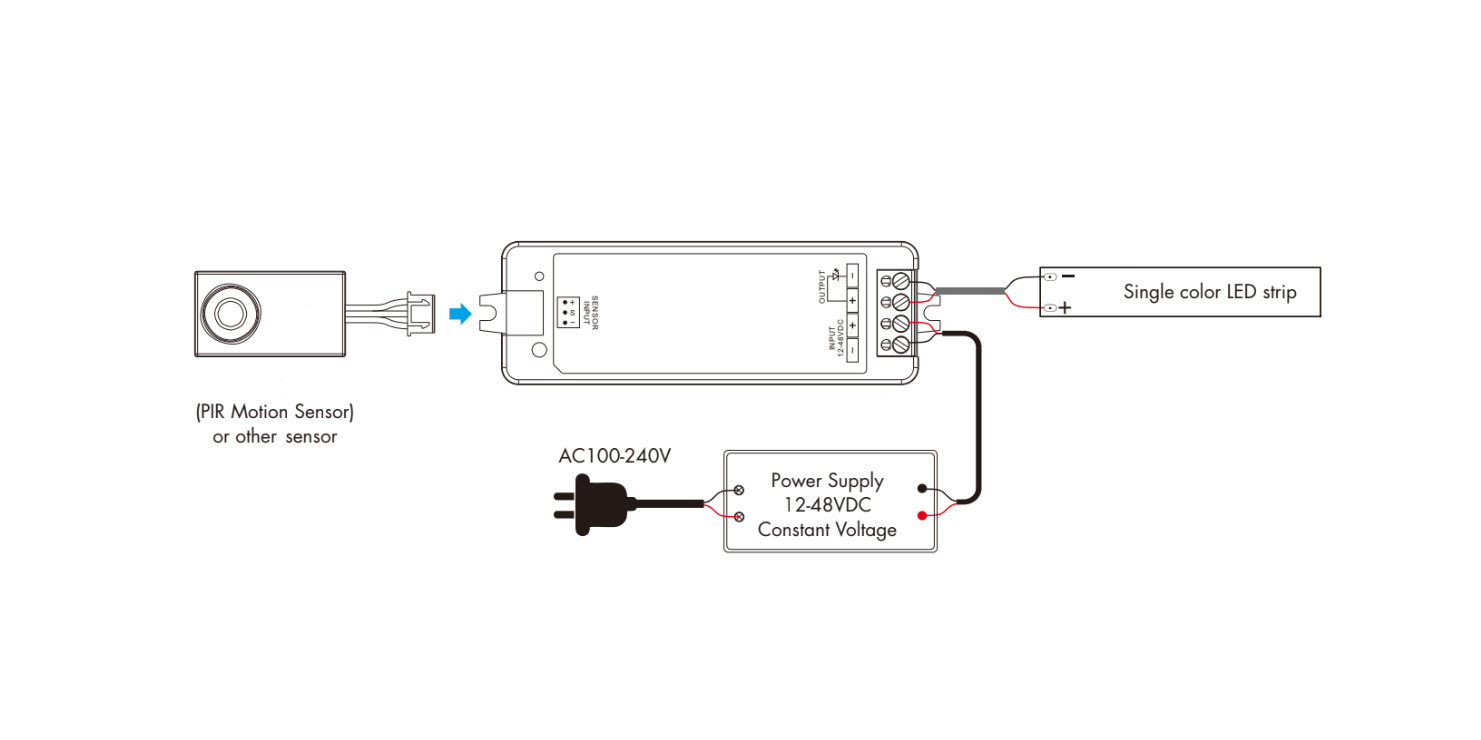

| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
The SN-HAND is a compact hand sweep sensing head designed for seamless LED lighting control in furniture, cabinets, and displays. Powered by 5VDC low voltage, it outputs a 5V level or PWM signal for direct use with constant voltage LED dimming power supplies and controllers.

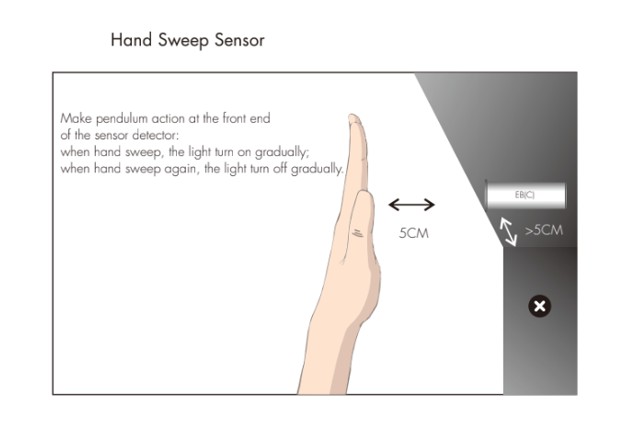

With a 10cm sensing distance and 15–30° detection angle, it offers reliable, touch-free control. A simple hand sweep turns lights on or off, while holding your hand in front of the sensor enables smooth 0–100% dimming. Its concealed or surface-mounted installation options make it an elegant and discreet solution for modern lighting automation.

Key Features
Touch-Free Control – Operate lights with a simple hand sweep
Smooth Dimming – Hold hand in front to dim up or down (2000Hz PWM, flicker-free)
Low Voltage Powered – 5VDC input with 5V/PWM signal output
Compact Design – ≤10cm sensing range, 15–30° detection angle
Flexible Mounting – Concealed (11mm drill hole) or surface mount with holder
Smart Integration – Works with constant voltage LED dimming drivers
Complete Kit – Includes sensor, screws, holder, and manual
Applications
Smart Furniture – Invisible lighting control built into tables or shelves.
Cabinets & Wardrobes – Touch-free lighting for convenience and hygiene.
Wine Cabinets & Showcases – Elegant, discreet lighting activation.
Residential Spaces – Bedrooms, kitchens, and living rooms needing contactless control.
Commercial Displays – Retail shelves and hospitality environments.
