Laser | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-LASER |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0.05 – 2.5m |
| Cable Length | 1m |
| Detection Angle | 10° |
| IP Rating | 20 |
| Hole Cutout Size | 24mm |

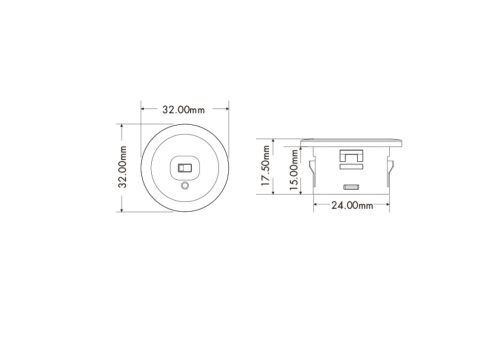

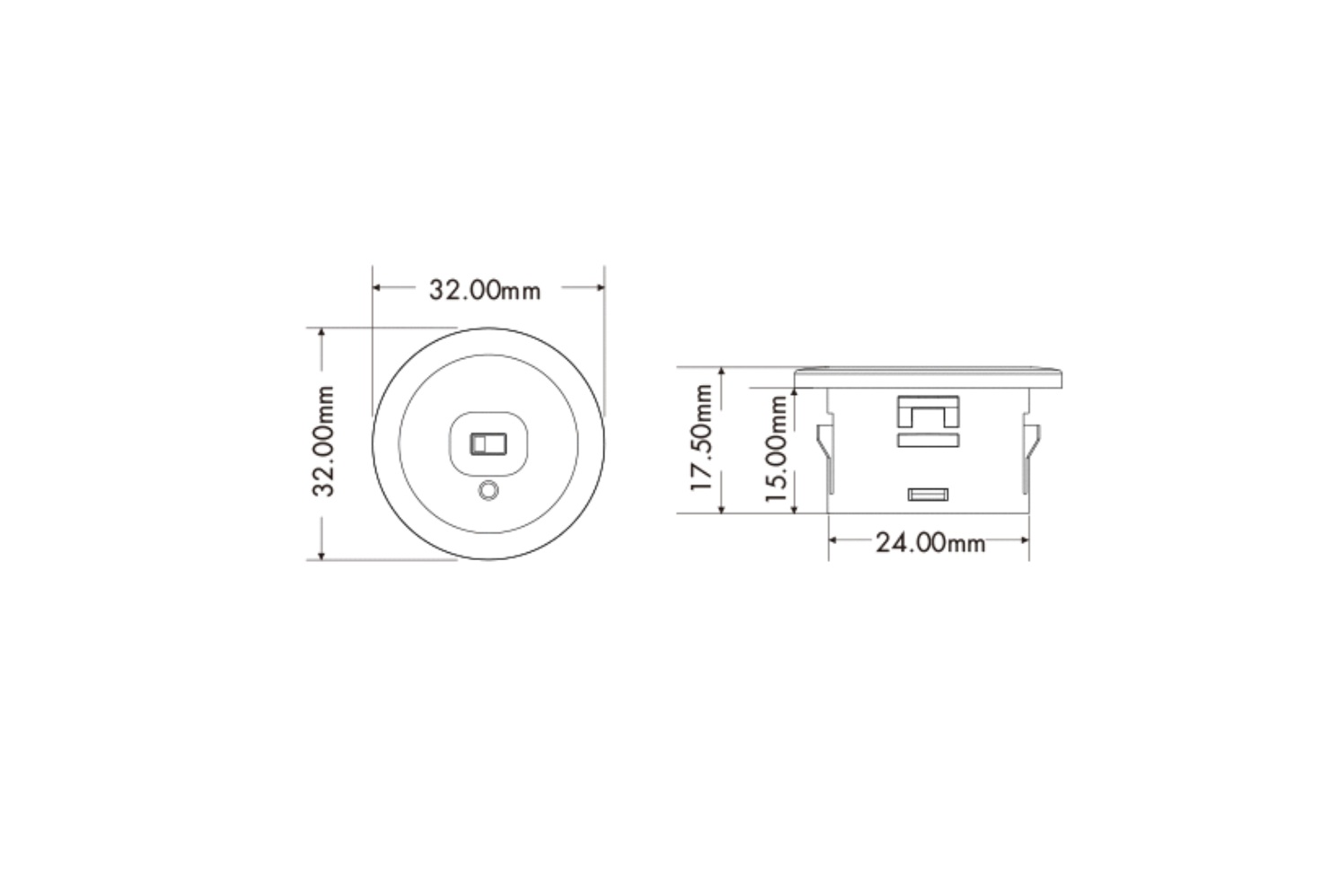

| Dimensions | L32 x W32 x H17.5mm |
| Warranty | 5 Years |
| Certification | CE, RoHS |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
The SN-LASER is a precision laser-based human/object detection sensor designed for seamless integration with LED controllers. Operating on 5VDC low voltage, it outputs a reliable high/low signal whenever motion or presence is detected. With a detection range of 0.05–2.5m and a narrow 10° sensing angle, it provides accurate triggering for staircases, corridors, aisles, and corner lighting applications.
Featuring adjustable detection distance (set automatically at power-up or via the SET key) and 5 selectable delay times (2–60 seconds), the EL-C offers flexible configuration. Its compact design and strong performance make it an ideal choice for stair lighting, directional sensing, and sequential lighting control
Key Features
Laser Detection – Narrow 10° sensing angle for accurate presence detection
Adjustable Range – 0.05–2.5m detection distance, auto-set or via SET key
Configurable Delay – 5 options (2s, 5s, 10s, 30s, 60s) for flexible lighting control
Low Voltage Powered – 5VDC operation with high/low level output
Compact Size – 32×24×15mm, discreet installation

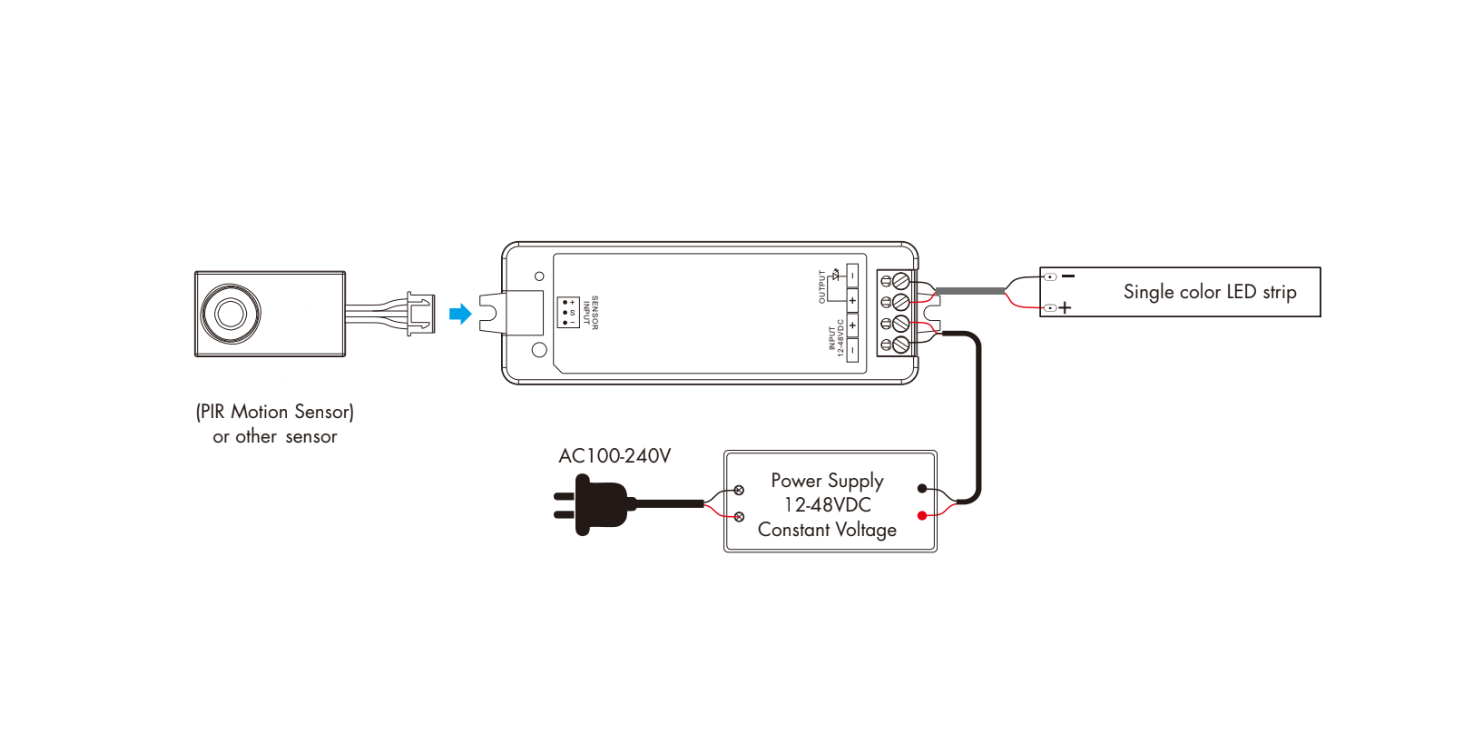

Optimised for LED Control – Works seamlessly with ES-V, E1-L, ES32 stair light controller
Reliable Performance – Stable operation with strong anti-interference capability
Applications
The EL-C laser sensor head is ideal for:

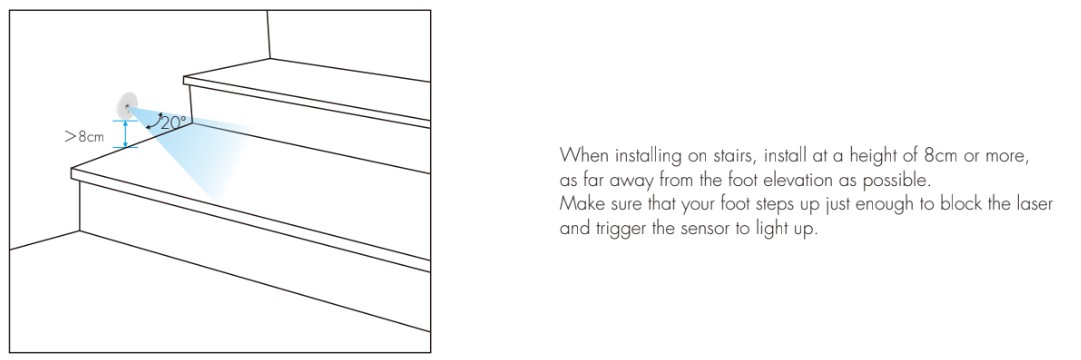

Staircase Lighting – Trigger step lights with top/bottom mounted sensors.
Corridors & Aisles – Ensure lights activate only when someone passes by.
Sequential Lighting – Pair with ES32 controller for dynamic step-by-step illumination.
Smart Homes – Discreet sensor option for custom lighting automation.
Architectural Installations – Directional control for pathways and accent lighting.
