Microwave / Human Motion | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-MICRO |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0.5 – 5m |
| Cable Length | 1m |
| Detection Angle | 120° |
| IP Rating | 20 |

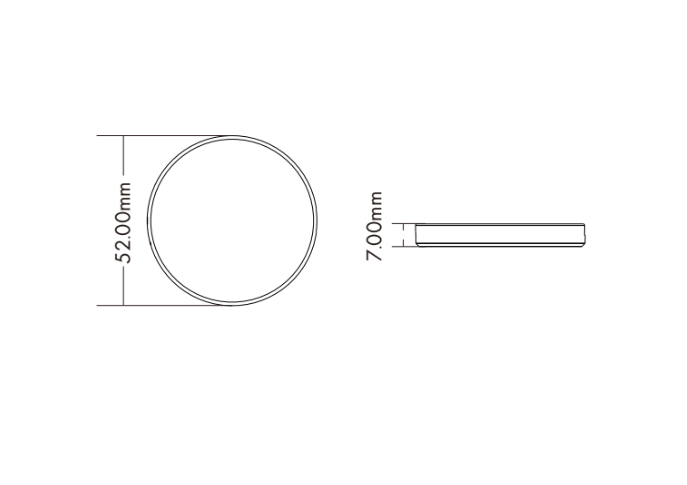

| Dimensions | L52 x W52 x H7mm |
| Warranty | 5 Years |
| Certification | CE, RoHS |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |

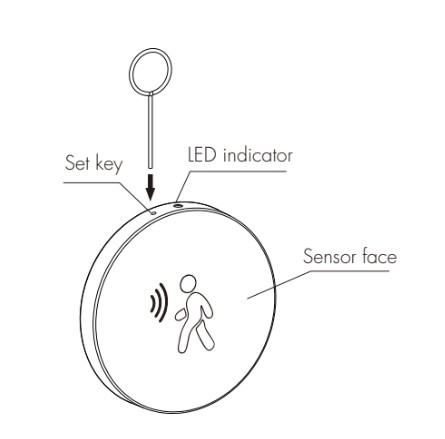

The SN-MICRO is a slim, ultra-convenient microwave human motion sensor that can be pasted almost anywhere for smart lighting control. Featuring a 5.8GHz radar module, it detects human movement through wood, glass, acrylic, or other thin non-metallic surfaces, making it ideal for concealed installations.

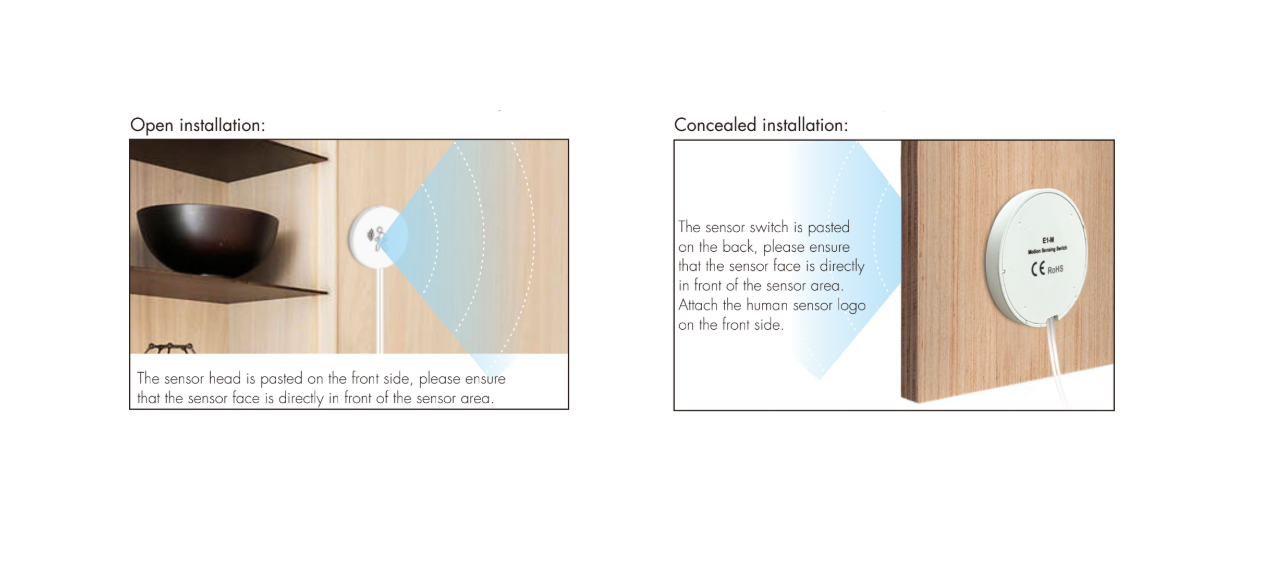

Powered by 5VDC with high/low level output, the SN-MICRO switches lights on when motion is detected and off after a configurable delay (10s–300s). It also allows adjustment of sensing distance (0.5–5m) for precise control. Its ultra-thin, adhesive-mount design means no cutting or drilling is required — simply paste it in place for instant, hidden automation.
Key Features
2-in-1 Sensor & Remote – Hand sweep or door control operation in one device
3 Operating Modes – Dimmable sweep, non-dimmable sweep, or door mode
Wireless Control – 2.4GHz RF connection, up to 10m distance
Battery Powered – Long-lasting CR2450 coin cell, ultra-low standby current (<20uA)
Compact & Lightweight – 80×40×30mm, only 38g
Easy Mounting – Screw or adhesive back holder installation
LED Indicator – Provides mode and action confirmation
Safe & Certified – CE RED compliant, designed for low-voltage lighting systems
Applications
The SN-RM-DOOR sensor switch remote is ideal for:
Cabinets & Wardrobes – Automatic lighting when doors open or close.
Closets & Storage Spaces – Touch-free activation with a hand sweep.
Wine Cabinets & Displays – Elegant lighting control for presentations.
Residential Spaces – Flexible, wireless switch for modern LED setups.
Commercial Use – Retail shelves, showcases, and smart furniture lighting.
