PIR Motion | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-PIR |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 4m |
| Cable Length | 1m |
| Detection Angle | 120° |
| IP Rating | 20 |

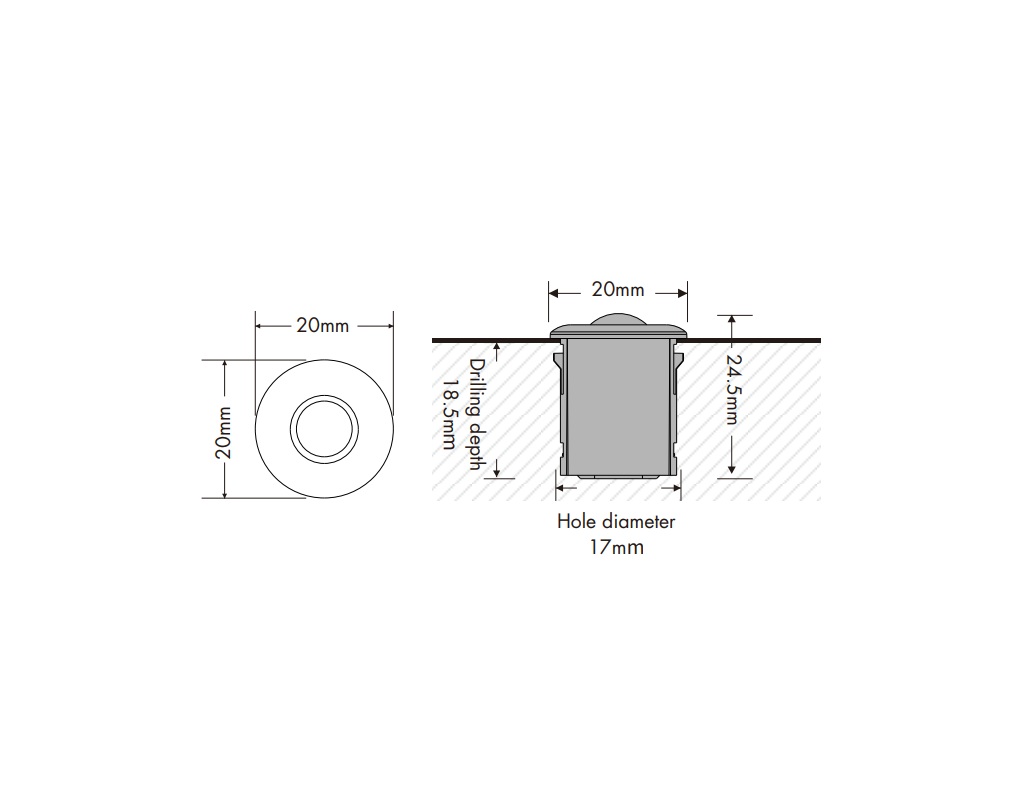

| Hole Cutout Size | 17mm |
| Dimensions | L24.5 x W20mm |
| Warranty | 5 Years |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
SN-PIR– PIR Motion Sensor

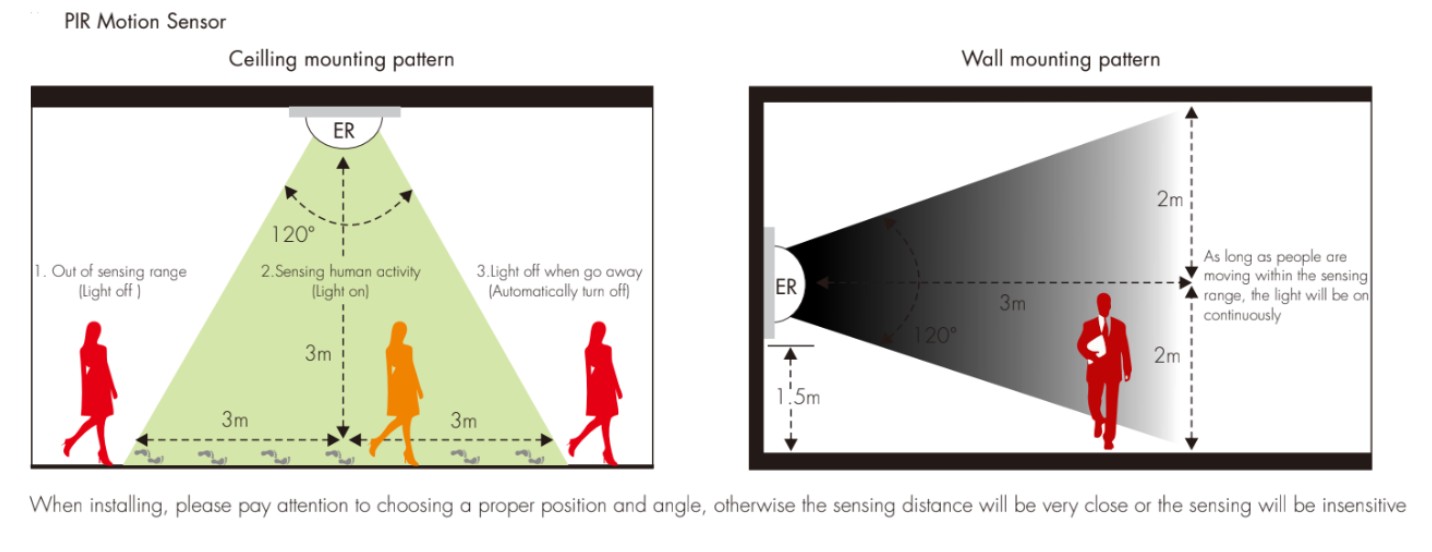

The SN-PIR is a compact, concealed PIR motion sensor designed for automatic lighting control in cabinets, closets, stairways, garages, and more. With a 3–4m detection range and 120° wide sensing angle, it provides reliable activation whenever motion is detected.

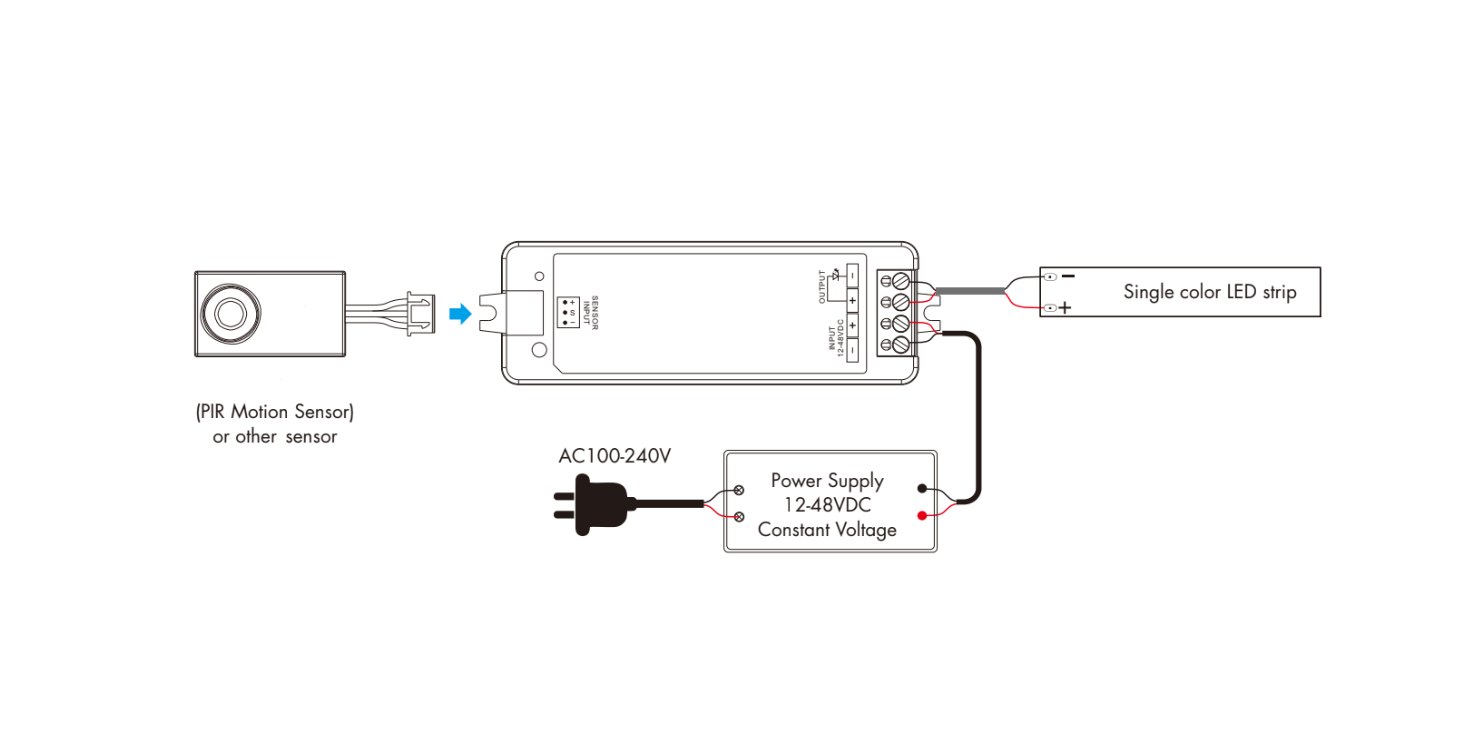

Powered by low-voltage 5VDC, the ER-A outputs a 5V level signal (high = ON, low = OFF), making it easy to integrate with constant voltage LED power supplies and controllers. Its bilateral snap design ensures quick, hidden installation for a clean and modern look.

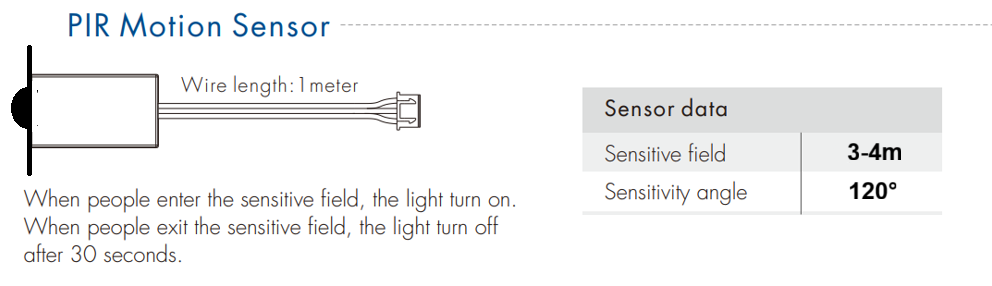

When motion is detected, lights turn on instantly and automatically switch off after 30 seconds once the area is clear — providing hands-free convenience and energy savings.
Key Features
Concealed Design – PIR motion sensing head installs flush for a clean look
Reliable Detection – 3–4m range with 120° wide angle
Auto On/Off – Lights turn on with movement, off after 30 seconds of no activity
Low-Voltage Powered – 5VDC input, outputs 5V level signal
Easy Installation – Bilateral snap fit, 17mm hole diameter
Versatile Applications – Ideal for stairs, garages, closets, cabinets, and more
Compact & Discreet – Small size with 1m cable for flexible placement
Applications
The ER-A motion sensor is ideal for:
Stairways & Hallways – Safe, hands-free lighting when moving between floors.
Closets & Wardrobes – Automatic illumination as soon as the door opens.
Garages & Storage Rooms – Convenient lighting when entering dark spaces.
Cabinets & Wine Displays – Discreet activation to highlight interiors.
Smart Homes – Enhancing comfort, safety, and energy efficiency.
